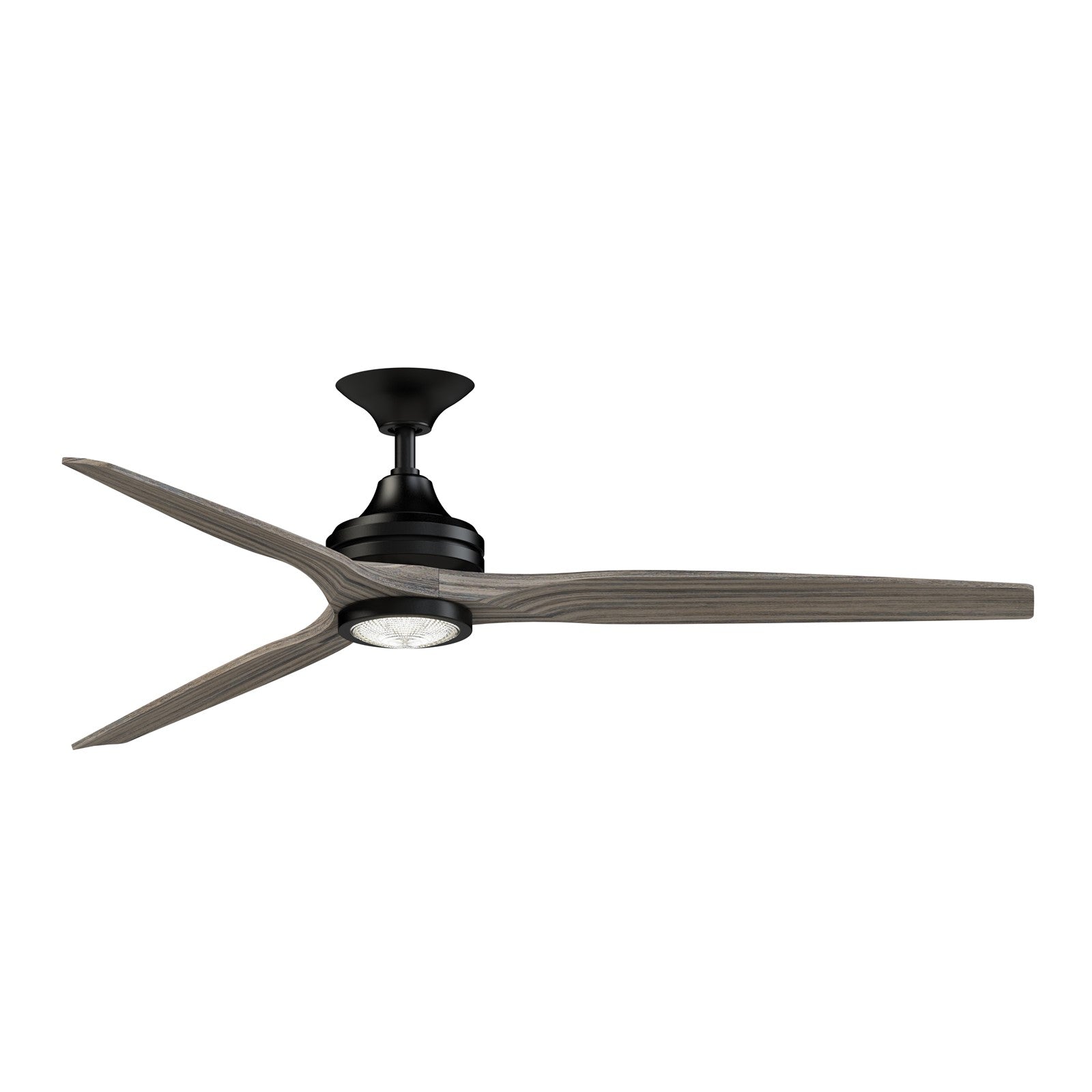

A 64-inch downrod smart ceiling fan with an integrated LED light kit, designed for covered outdoor and indoor living spaces, finished in black with weathered wood blades.
The Spitfire DC Custom pairs a sleek black motor with three weathered wood blades for a modern, organic look. Its powerful yet quiet DC motor delivers up to 8,754 CFM of airflow, while the integrated 18-watt LED light kit offers five color temperatures from warm to daylight. Control everything with the included handheld remote or your smart device via Wi-Fi fanSync technology.
Best for
- Covered patios and porches where damp-rated fixtures are required
- Sunrooms and three-season rooms needing both airflow and light
- Living rooms and great rooms with ceilings at least 8 feet high
- Bedrooms and home offices where quiet operation is a priority
- Rooms with slightly sloped ceilings up to 20 degrees
Not ideal for
- Outdoor areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
- Rooms with ceilings under 7 feet - the fan hangs 19.42 inches from the ceiling
- Spaces where you prefer a traditional pull-chain control - this fan uses a remote only
How bright is it?
The integrated LED light kit produces 1600 lumens - roughly equivalent to a 100-watt incandescent bulb. This is bright enough to illuminate a medium-sized living room or covered patio, but it is not a replacement for a dedicated primary light in very large spaces.
Light color and feel
Choose from five color temperatures: 2700K (warm white), 3000K (soft white), 3500K (neutral), 4000K (cool white), and 5000K (daylight). With a CRI of 90, colors appear vivid and accurate. The light is dimmable via the remote, letting you set the perfect ambiance for any occasion.
Sizing and fit
This fan has a 64-inch blade sweep and measures 64 inches wide by 64 inches deep by 19.42 inches high. It includes both 6-inch and 12-inch downrods for flexible installation, and optional downrods up to 72 inches are available. It weighs 20.24 pounds and requires a ceiling that can support its weight.
Specifications
- Primary Finish: Black
- Blade Material: Buttonwood
- Blade Finish: Weathered Wood
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 64"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 5473
- CFM High: 8754
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 64"(L)64"(W) x 19.42"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 8.76"(Dia) x 2.52"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Ceiling to Bottom (With Light Kit): 15.35, 21.35"
- Item Weight: 20.24 lbs.
Frequently asked
Is the bulb included? Yes, the integrated LED module is included and cannot be replaced separately.
Is it dimmable, and what dimmer should I use? Yes, it is dimmable via the included remote or the fanSync app. No wall dimmer is required.
Can I install this in a bathroom or outdoors? This fan is damp-rated, so it is suitable for bathrooms and covered outdoor areas, but it should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser. For assistance, contact Fanimation Tech Support at 1-888-567-2055.
How do I control the fan and light? The included TR360 handheld remote controls fan speed, reversing, light dimming, and CCT selection. The fan also works with Wi-Fi fanSync technology for smart device and voice assistant control.
