A 64-inch downrod smart ceiling fan with an integrated LED light kit, designed for indoor and covered outdoor spaces like patios and living rooms.

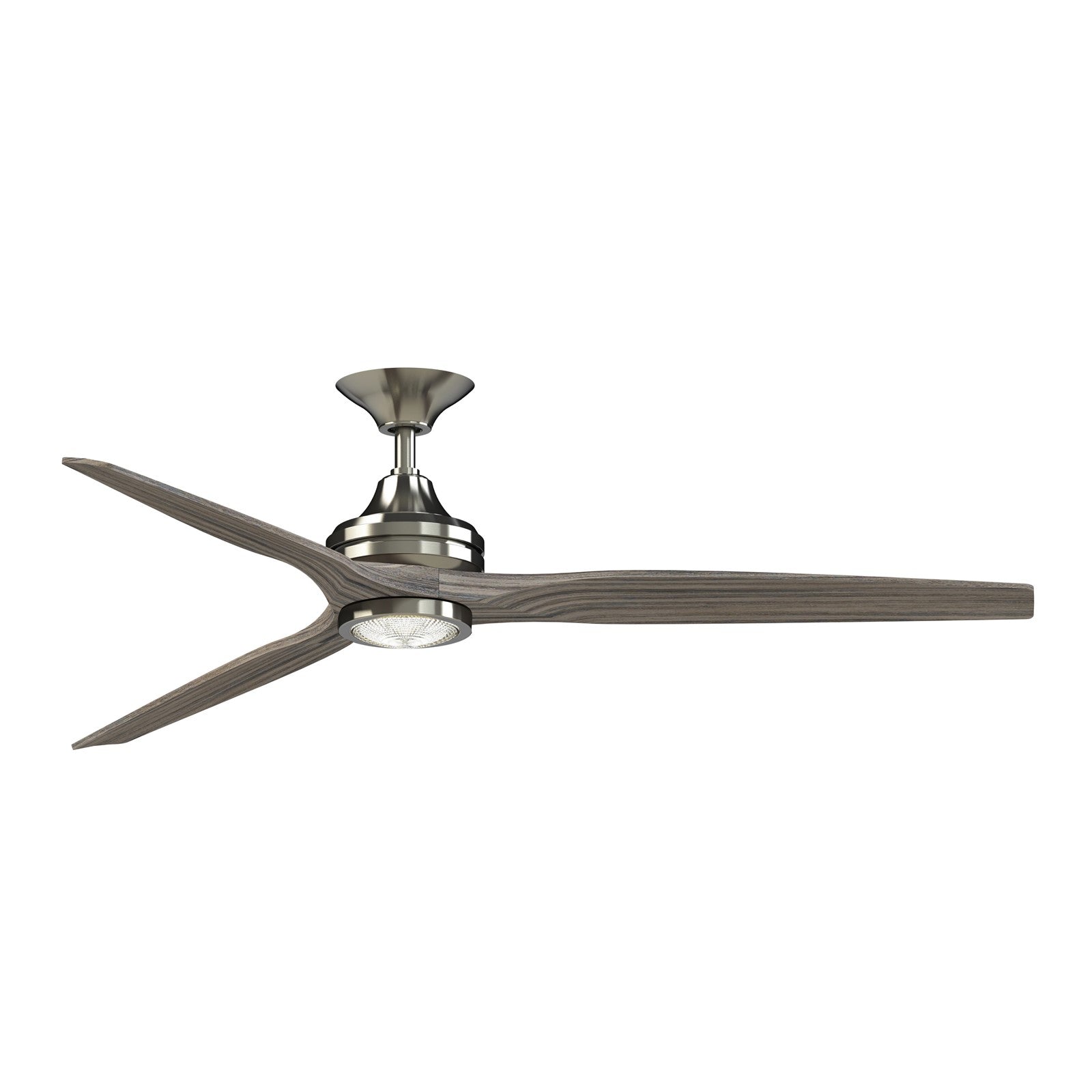

The Spitfire DC Custom pairs a sleek Brushed Nickel motor with three Weathered Wood Buttonwood blades, delivering powerful yet quiet airflow up to 8,754 CFM. The integrated 18-watt LED light kit features CCT Select technology, letting you shift from warm 2700K to bright daylight 5000K. Control it all with the included TR360 remote or your smart device via Wi-Fi fanSync.
Best for
- Covered patios and porches, where the damp-rated motor and moisture-resistant blades handle humidity without direct rain exposure
- Living rooms and great rooms up to 400 sq ft, providing strong airflow for cooling and air circulation
- Bedrooms and home offices, with 6 speeds and a quiet DC motor for low-noise comfort
- Sunrooms and three-season rooms, adding both light and breeze in one fixture
- Rooms with standard 8-9 ft ceilings, using the included 6-inch or 12-inch downrod for optimal height
Not ideal for
- Outdoor areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
- Low ceilings under 8 ft if you prefer a flush mount - this model requires downrod installation
- Spaces needing a light kit with a single color temperature - CCT Select offers five options, but some may prefer a fixed warm glow
How bright is it?
The integrated LED module produces 1600 lumens - roughly equivalent to a 100-watt incandescent bulb. This is bright enough for ambient lighting in a living room or bedroom, but not a primary task light for detailed work.
Light color and feel
With CCT Select, you can choose from 2700K (warm white), 3000K (soft white), 3500K (neutral), 4000K (cool white), or 5000K (daylight). The 90 CRI ensures colors appear vivid and true, making it suitable for art or decor. The light is dimmable via the remote, and the included Fresnel and frosted shades let you adjust the glow.
Sizing and fit
This fan measures 64 inches in diameter and 19.42 inches from ceiling to bottom with the included 12-inch downrod. It fits best in rooms at least 12 x 12 ft, and the downrod can be swapped for longer options (up to 72 inches) for higher ceilings.
Specifications
- Primary Finish: Brushed Nickel
- Blade Material: Buttonwood
- Blade Finish: Weathered Wood
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 64"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 5473
- CFM High: 8754
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 64"(L)64"(W) x 19.42"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 8.76"(Dia) x 2.52"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Ceiling to Bottom (With Light Kit): 15.35, 21.35"
- Item Weight: 20.24 lbs.
Frequently asked
Is the bulb included? Yes, the integrated LED module is included and cannot be replaced separately.
Is it dimmable, and what dimmer should I use? Yes, it is dimmable via the included TR360 remote. No wall dimmer is needed.
Can I install this in a bathroom or outdoors? Yes, it is damp-rated for covered outdoor areas and bathrooms, but not for direct rain exposure.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
How does the CCT Select technology work? Use the remote to cycle through five color temperatures from warm to daylight, and the fan remembers your last setting.
