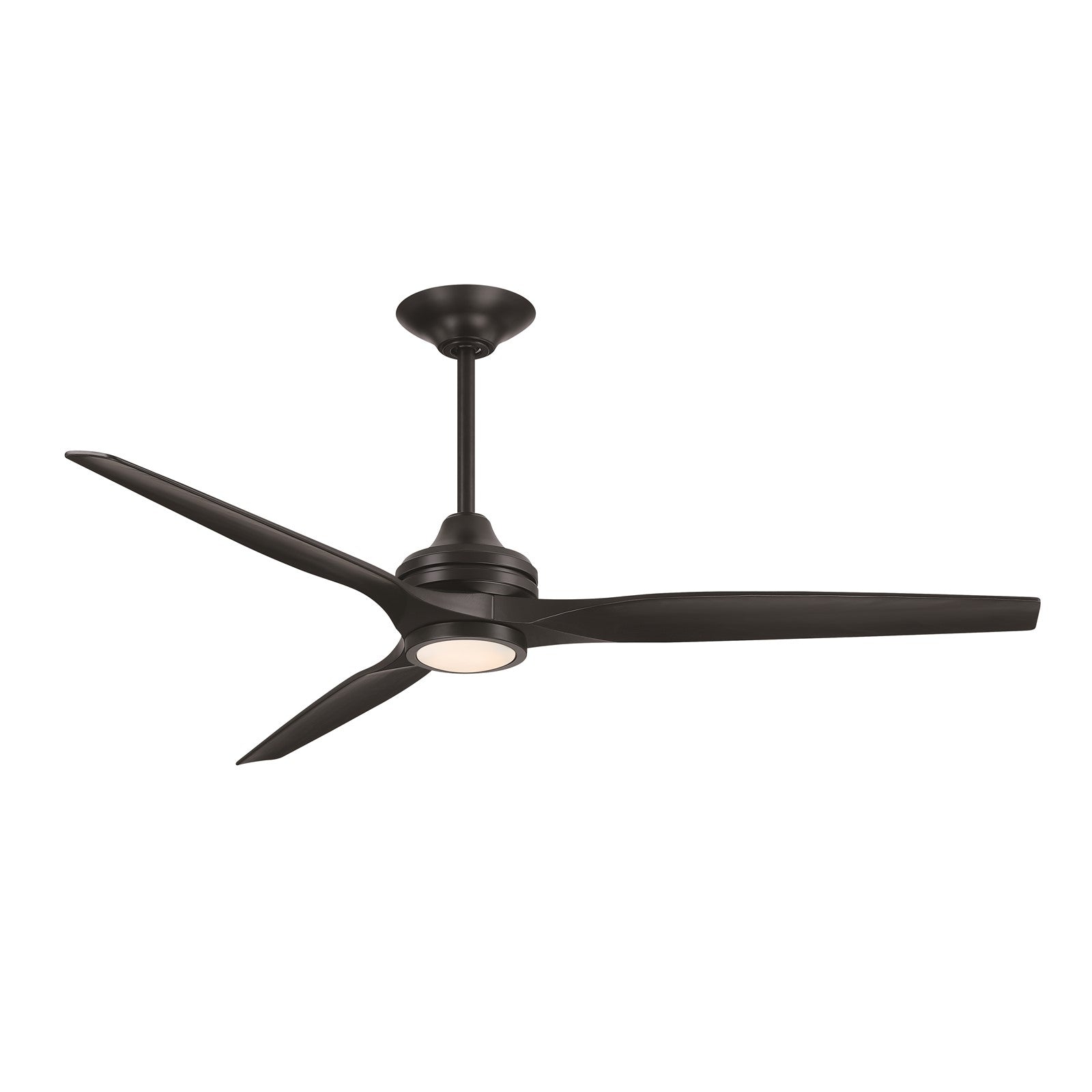

A 64-inch downrod smart ceiling fan with integrated LED light kit from Fanimation's Spitfire DC Custom collection, finished in black with black blades, for covered outdoor and indoor spaces.
The Spitfire DC Custom combines powerful airflow with customizable lighting. Its 6-speed DC motor delivers up to 8,754 CFM, while the integrated 18-watt LED light kit offers five color temperatures (2700K-5000K) via CCT Select technology. The included TR360 remote controls fan speed, light dimming, and color temperature, and Wi-Fi enabled fanSync lets you manage everything from your smartphone or voice assistant. Damp rated for covered patios and porches, this fan is built for humid environments.
Best for
- Covered patios, porches, and sunrooms where damp-rated fixtures are needed
- Bedrooms and living rooms with standard 8-9 ft ceilings, using the included downrods
- Large rooms up to 20x20 ft that need high airflow (up to 8,754 CFM)
- Smart home setups - control via fanSync app or voice assistant
- Year-round comfort with reversible motor and adjustable light color
Not ideal for
- Outdoor areas directly exposed to rain or water - this fan is damp rated, not wet rated
- Rooms with very low ceilings (under 8 ft) if you need the fan to hang close - consider the flush-mount version
- Those who prefer a fan without a light kit - this version includes the light
How bright is it?
The integrated 18-watt LED light kit delivers 1,600 lumens - about as bright as a 100W incandescent bulb - suitable for ambient lighting in medium to large rooms.
Light color and feel
With CCT Select technology, you can choose from five color temperatures - 2700K (warm white) to 5000K (daylight) - to match your mood and decor. The kit also features a CRI of 90 for accurate color rendering.
Sizing and fit

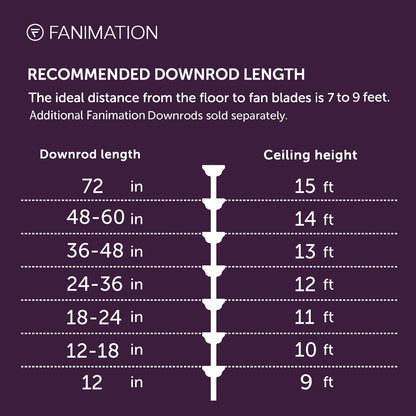

With a 64-inch blade sweep and included 6-inch and 12-inch downrods, this fan fits rooms with standard 8-9 ft ceilings. Overall dimensions are 64 x 64 x 19.42 inches, and it weighs 20.24 lbs. The canopy is 8.76 inches in diameter.
Specifications
- Primary Finish: Black
- Blade Material: Buttonwood
- Blade Finish: Black
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 64"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 5473
- CFM High: 8754
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED light kit is included and does not require a replaceable bulb.
Is it dimmable, and what dimmer should I use? The light is dimmable via the included TR360 remote. No wall dimmer is required.
Can I install this in a bathroom or outdoors? Yes, this fan is damp rated for covered outdoor areas and bathrooms, but it should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
Does this fan work with sloped ceilings? Yes, it supports slopes up to 20°.
