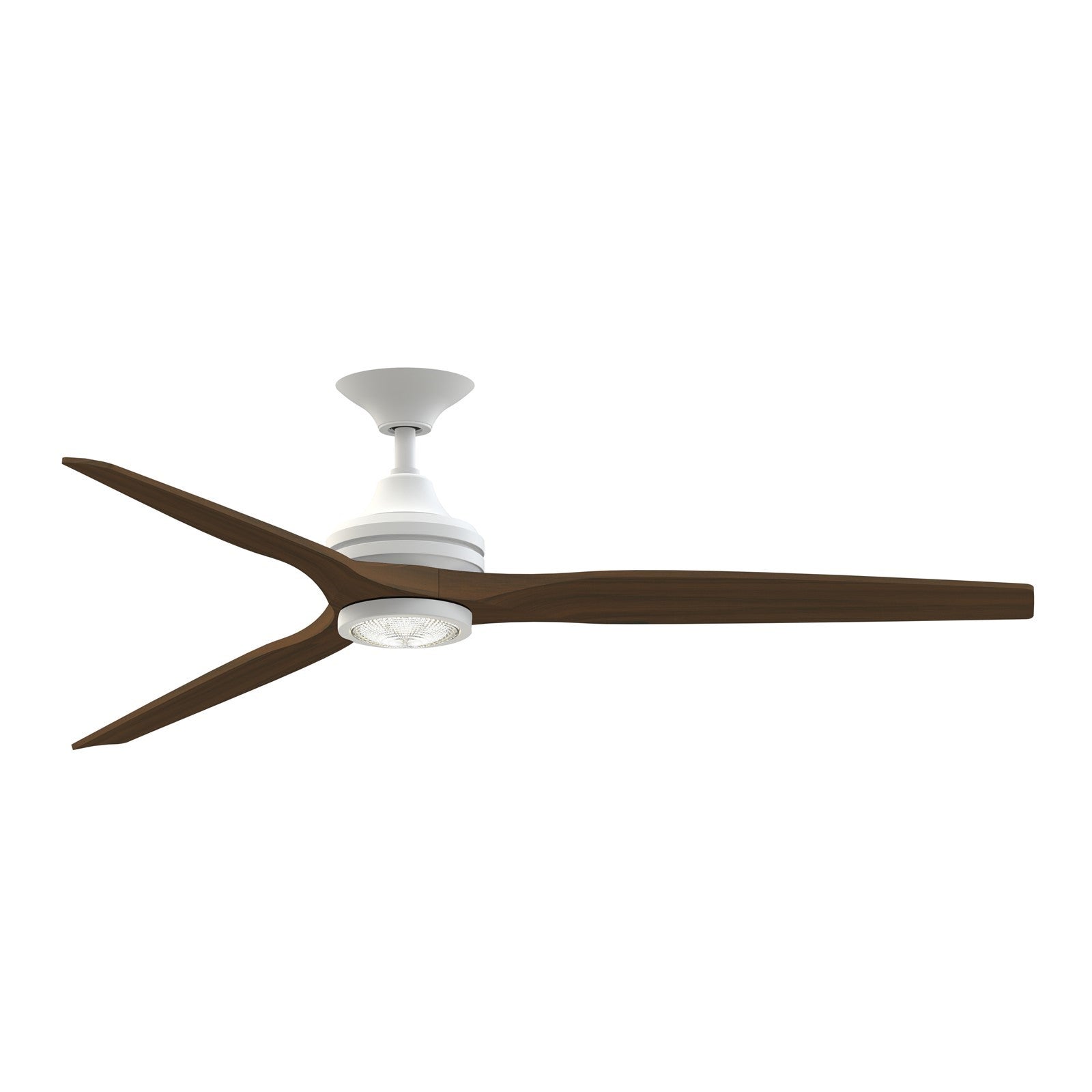

A 64-inch downrod smart ceiling fan with an integrated LED light kit from Fanimation's Spitfire DC Custom collection, finished in matte white with whiskey wood blades, for covered outdoor and indoor spaces.
The Spitfire DC Custom pairs a streamlined matte white motor housing with three whiskey wood blades for a warm, contemporary look. Its 6-speed DC motor delivers powerful yet quiet airflow up to 8,754 CFM, and the included TR360 remote and Wi-Fi fanSync app give you full control. This downrod version includes a 6-inch and 12-inch downrod for flexible installation, and the integrated 18-watt LED light kit offers five color temperatures.
Best for
- Covered patios and porches, where the damp-rated motor and moisture-resistant blades handle humidity without direct rain exposure
- Bedrooms and living rooms with 9-10 ft ceilings, using the included downrods to achieve the recommended 7-9 ft hanging height
- Sunrooms and laundry rooms that need reliable air movement in humid conditions
- Open-plan spaces up to 20 x 20 ft, where the 64-inch sweep moves air effectively
- Smart-home setups, with Wi-Fi control via the fanSync app and voice assistants
Not ideal for
- Outdoor areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
- Small rooms under 10 x 10 ft, where the 64-inch blade sweep may feel oversized
- Rooms with ceilings under 8 ft, as the downrod adds height
How bright is it?
The integrated 18-watt LED light kit delivers 1,600 lumens - about as bright as a 100W incandescent bulb, suitable for ambient lighting in a medium room.
Light color and feel
Choose from five color temperatures - 2700K (warm white) to 5000K (daylight) - to match your mood and decor. The high CRI of 90 ensures colors appear natural and vibrant.
Sizing and fit
With a 64-inch blade sweep and a height of 19.42 inches (using the 6-inch downrod), this fan fits rooms with 9-foot ceilings comfortably. The overall dimensions are 64 x 64 x 19.42 inches, and it weighs 20.24 pounds.
Specifications
- Primary Finish: Matte White
- Blade Material: Buttonwood
- Blade Finish: Whiskey Wood
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 64"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 5473
- CFM High: 8754
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 64"(L)64"(W) x 19.42"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 8.76"(Dia) x 2.52"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Ceiling to Bottom (With Light Kit): 15.35, 21.35"
- Item Weight: 20.24 lbs.
Frequently asked
Is the bulb included? Yes, the integrated 18-watt LED light kit is included and features CCT Select technology.
Is it dimmable, and what dimmer should I use? The light is dimmable via the included TR360 remote or the fanSync app. The fan speed is also controlled via the remote.
Can I install this in a bathroom or outdoors? Yes, this fan is damp-rated, so it can be installed in bathrooms and covered outdoor areas, but it should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser. Contact Fanimation Tech Support at 1-888-567-2055 for assistance.
Can this fan be used on sloped ceilings? Yes, it supports slopes up to 20 degrees, and optional downrods up to 72 inches are available for higher ceilings.
