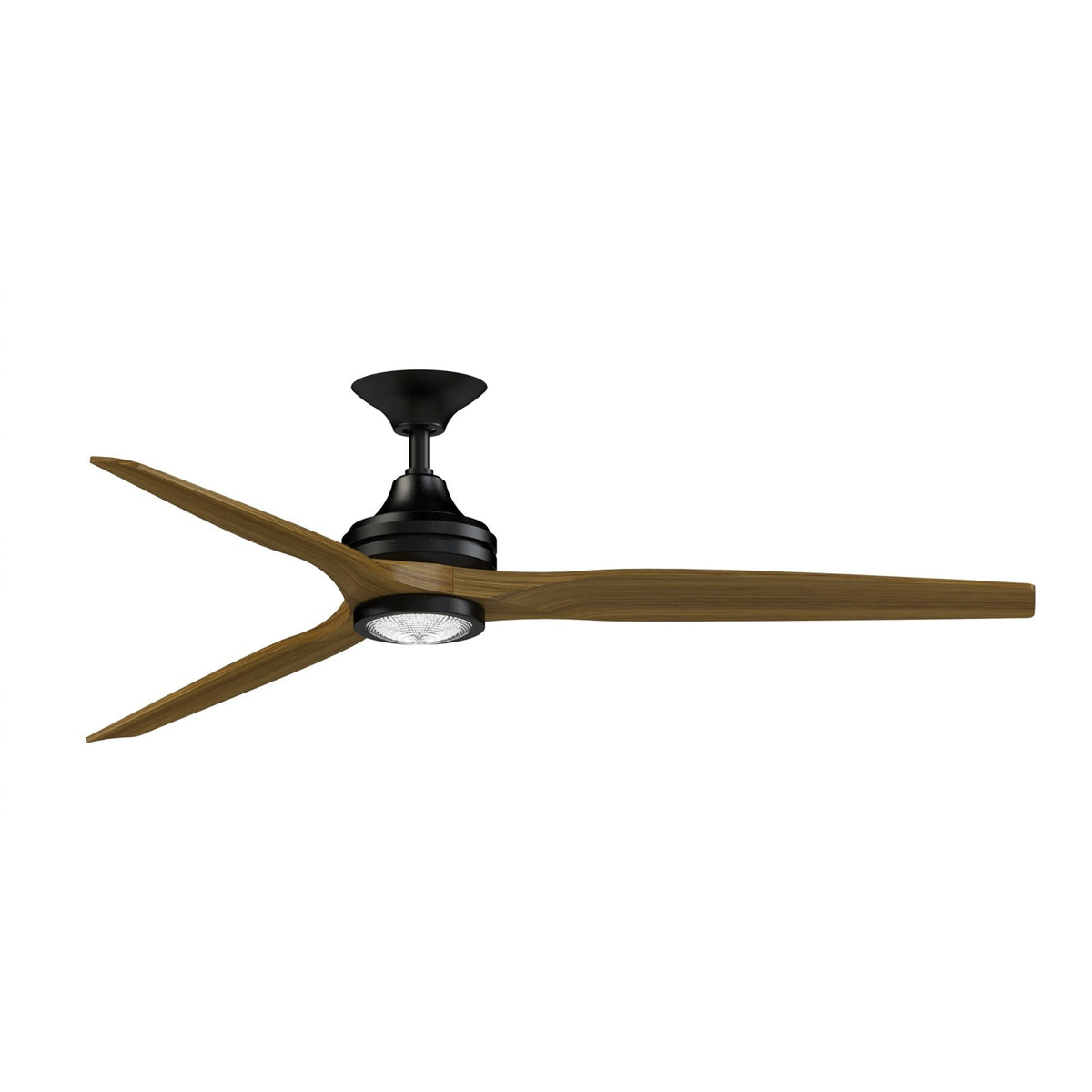

A 64-inch smart ceiling fan with an integrated LED light kit, designed for large covered outdoor and indoor spaces, finished in black with Koa wood blades.
The Spitfire DC Custom pairs a streamlined black motor with three Koa wood blades for a warm, modern look. Its 6-speed DC motor delivers powerful airflow up to 8,754 CFM while staying quiet and energy-efficient. This version includes an integrated 18-watt LED light kit with CCT Select technology, offering five color temperatures. Control it all with the included handheld remote or your smart device via Wi-Fi.
Best for
- Covered patios, porches, and sunrooms where damp-rated fixtures are needed
- Large living rooms and great rooms (up to 20x20 ft) needing high airflow
- Bedrooms and home offices where quiet operation and smart control are valued
- Bathrooms and laundry rooms with high humidity
- Spaces with ceilings up to 20° slope, using the included downrods
Not ideal for
- Outdoor areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
- Rooms with ceilings under 8 ft if you need the maximum hanging height
- Small spaces under 12x12 ft where a 64-inch sweep may feel oversized
How bright is it?
1600 lumens - about as bright as a 100W incandescent bulb, suitable for ambient lighting in medium to large rooms. It is not a primary task light but provides comfortable general illumination.
Light color and feel
Five selectable color temperatures from 2700K (warm white) to 5000K (daylight). With a CRI of 90, colors render accurately. The light is dimmable via the remote or app.
Sizing and fit
64-inch blade sweep, 64 x 64 x 19.42 inches overall. Includes 6-inch and 12-inch downrods; optional downrods up to 72 inches allow hanging heights of 7-9 feet. Fits flat or sloped ceilings up to 20°.
Specifications
- Primary Finish: Black
- Blade Material: Wood
- Blade Finish: Koa
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 64"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 5473
- CFM High: 8754
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 64"(L)64"(W) x 19.42"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 8.76"(Dia) x 2.52"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Ceiling to Bottom (With Light Kit): 15.35, 21.35"
- Item Weight: 20.24 lbs.
Frequently asked
Is the bulb included? Yes, an integrated LED module is included.
Is it dimmable, and what dimmer should I use? Yes, it is dimmable via the included remote or the fanSync app. No wall dimmer is needed.
Can I install this in a bathroom or outdoors? Yes, it is damp-rated for covered outdoor areas and bathrooms, but not for direct rain exposure.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
What shade options are included? Both fresnel and frosted shades are included, so you can choose the light diffusion you prefer.
