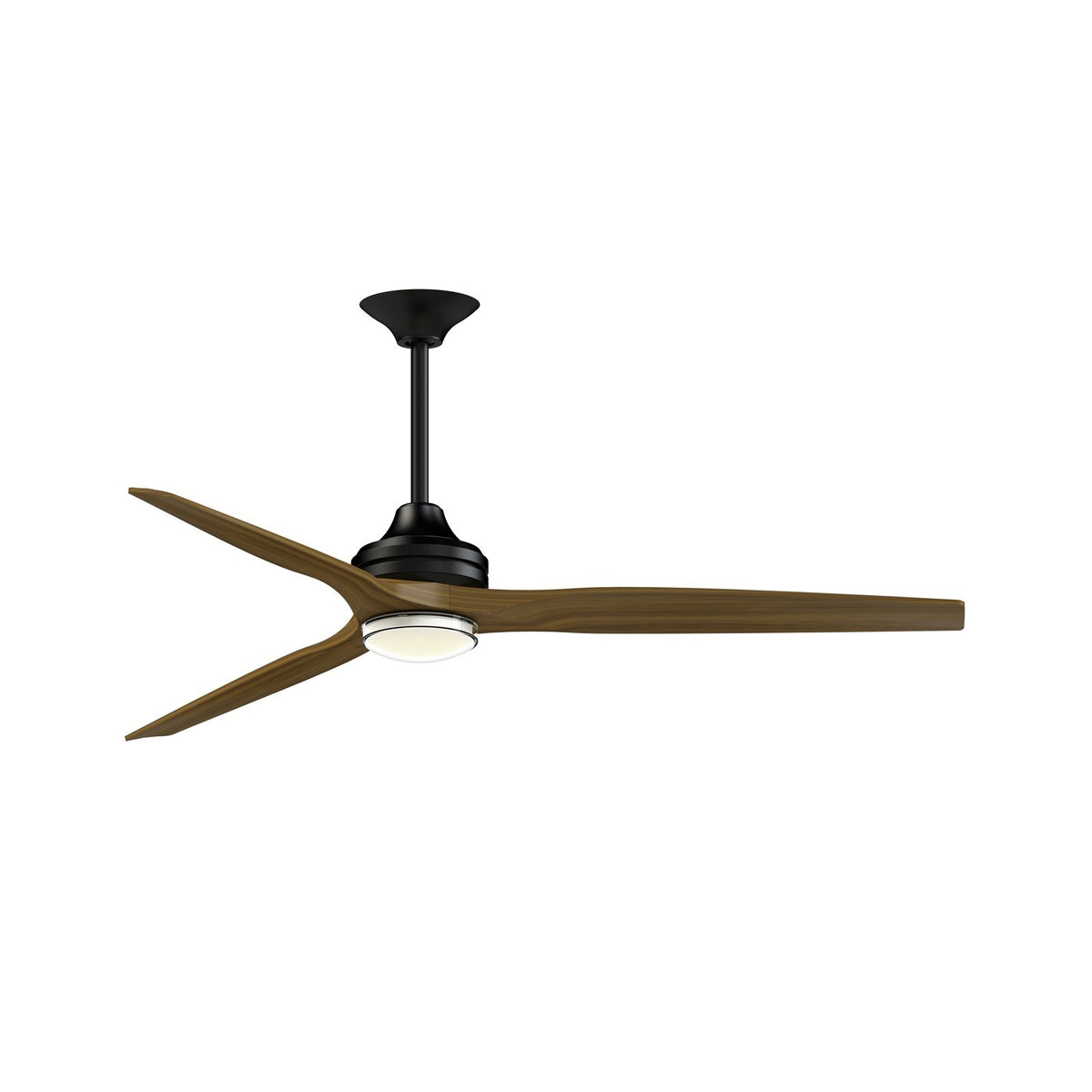

A 64-inch smart ceiling fan with an integrated LED light kit, designed for large covered outdoor and indoor spaces, finished in black with Koa wood blades.
The Spitfire DC Custom pairs a streamlined black motor with three Koa wood blades for a warm, modern look that suits contemporary and transitional homes. Its 6-speed DC motor delivers powerful airflow up to 8,754 CFM while staying quiet and energy-efficient. This version includes a double-walled marine-grade LED light kit with CCT Select technology, letting you shift from warm to daylight tones. Control it all with the included handheld remote or your smart device via Wi-Fi.
Best for
- Covered patios, porches, and sunrooms where damp-rated fixtures are needed
- Large living rooms and great rooms (up to 20x20 ft) needing high airflow
- Bedrooms and home offices where quiet operation and smart control are valued
- Bathrooms and laundry rooms with high humidity
- Spaces with ceilings up to 20° slope, using the included downrods
Not ideal for
- Outdoor areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
- Rooms with ceilings under 8 ft if you need the maximum hanging height
- Small spaces under 12x12 ft where a 64-inch sweep may feel oversized
How bright is it?
2000 lumens - about as bright as a 150W incandescent bulb, suitable for ambient lighting in medium to large rooms. It is not a primary task light but provides comfortable general illumination.
Light color and feel
Five selectable color temperatures from 2700K (warm white) to 5000K (daylight). With a CRI of 90, colors render accurately. The light is dimmable via the remote or app.
Sizing and fit
64-inch blade sweep, 64 x 64 x 16 inches overall. Includes 6-inch and 12-inch downrods; optional downrods up to 72 inches allow hanging heights of 7-9 feet. Fits flat or sloped ceilings up to 20°.
Specifications
- Primary Finish: Black
- Blade Material: Wood
- Blade Finish: Koa
- Shade Finish: Clear
- Collection: Spitfire
- Blade Sweep: 64"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 24W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 2000
- Voltage: 120V
- Avg CFM: 5473
- CFM High: 8754
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 64"(L)64"(W) x 16, 22"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 8.76"(Dia) x 2.52"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Ceiling to Bottom (With Light Kit): 16, 22"
- Item Weight: 19.93 lbs.
Frequently asked
Is the bulb included? Yes, an integrated LED module is included.
Is it dimmable, and what dimmer should I use? Yes, it is dimmable via the included remote or the fanSync app. No wall dimmer is needed.
Can I install this in a bathroom or outdoors? Yes, it is damp-rated for covered outdoor areas and bathrooms, but not for direct rain exposure.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
How does the double-walled marine light kit differ from the standard kit? The marine kit uses double-walled glass for enhanced durability and is constructed with marine-grade materials, making it more resistant to moisture and impact.
