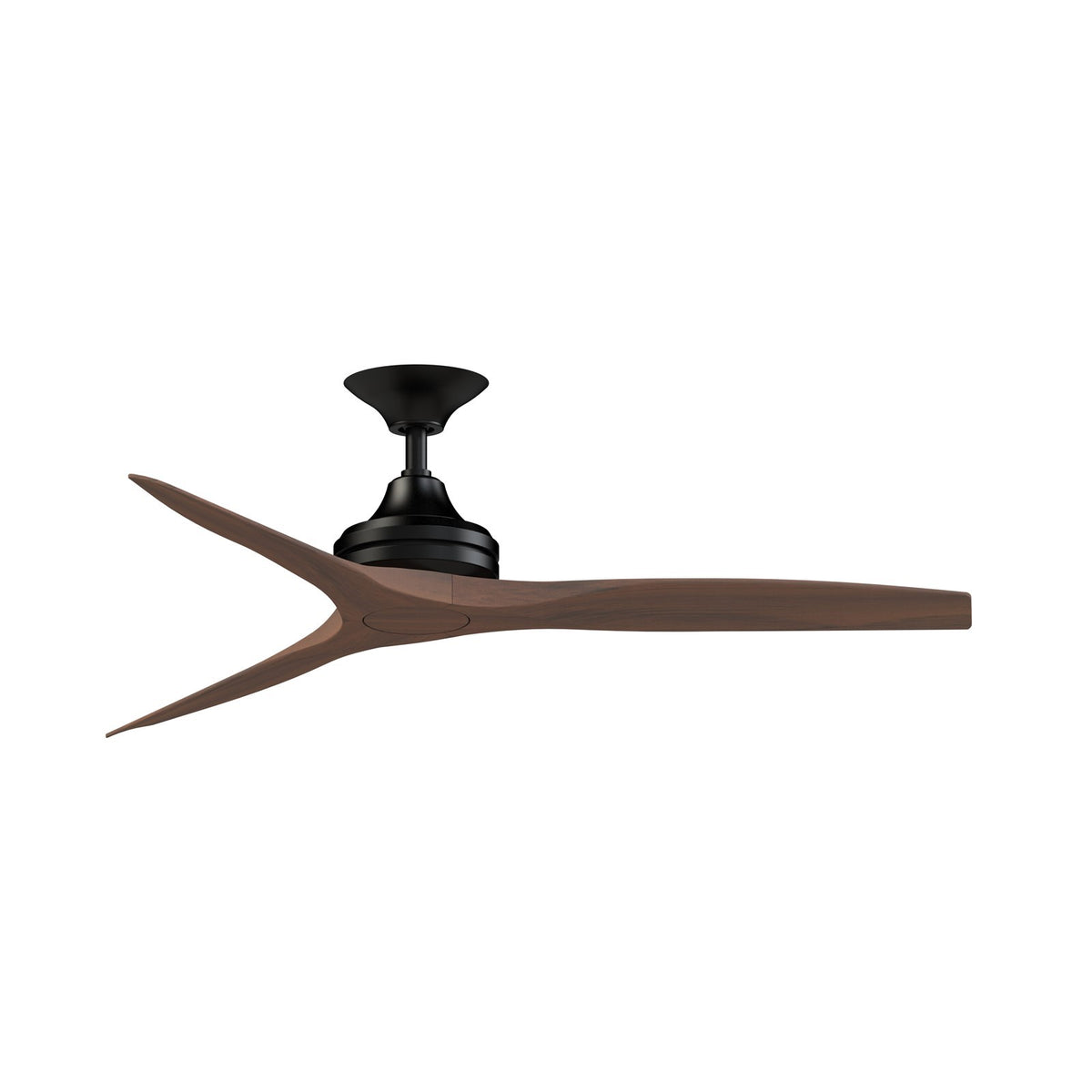

A 54-inch smart ceiling fan with downrod mounting, designed for indoor and covered outdoor spaces, finished in black with whiskey wood blades.
The Spitfire DC Custom delivers powerful, quiet airflow up to 7,307 CFM from its 6-speed DC motor. This version is compatible with an optional integrated LED light kit (sold separately) featuring CCT Select technology. Control the fan with the included TR360 remote or your smart device via Wi-Fi fanSync technology.
Best for
- Covered patios and porches, where damp-rated construction withstands humidity
- Sunrooms and three-season rooms needing powerful airflow
- Bedrooms and living rooms with standard 8-9 foot ceilings
- Laundry rooms and bathrooms where moisture resistance is a plus
Not ideal for
- Outdoor areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
- Rooms with very low ceilings (under 7 feet) - the downrod adds height
How bright is it?
This fan does not include a light kit. If you add the optional LED light kit, it produces 1600 lumens - comparable to a 100-watt incandescent bulb, bright enough for a medium-sized room.
Light color and feel
If you add the optional light kit, you can choose from five color temperatures (2700K-5000K) via CCT Select technology, allowing you to match the light to your activity or time of day.
Sizing and fit
This fan has a 54-inch blade sweep and comes with 6-inch and 12-inch downrods, with a height of 19.69 inches from ceiling to bottom. Optional downrods up to 72 inches are available for higher ceilings.
Specifications
- Primary Finish: Black
- Blade Material: Buttonwood
- Blade Finish: Whiskey Wood
- Collection: Spitfire
- Blade Sweep: 54"
- Number of Blades: 3
- Blade Pitch: 21°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 4157
- CFM High: 7307
- Avg Energy Use: 18W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
What is it made of? The motor housing is finished in black, and the blades are made of buttonwood with a whiskey wood finish.
Where in the home does this work best? This fan is ideal for covered patios, sunrooms, bedrooms, and living rooms. It's damp-rated for humid environments but not for direct rain.
How is it mounted or assembled? It mounts to flat or sloped ceilings (up to 20°) using the included 6-inch and 12-inch downrods. Assembly is required.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
Can I add a light kit later? Yes, this fan is compatible with Fanimation's integrated LED light kit with CCT Select technology, sold separately.
