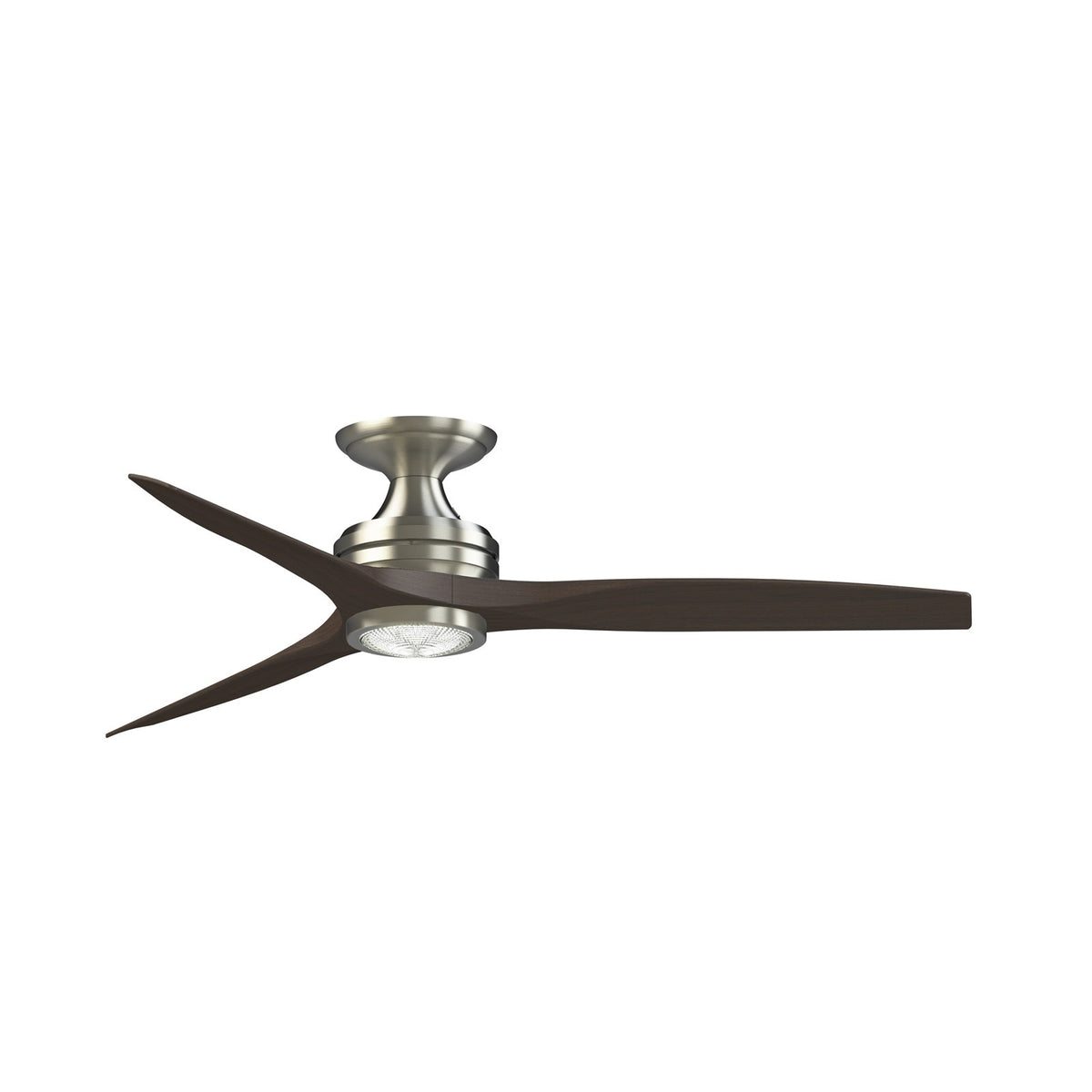

A 54-inch flush-mount smart ceiling fan with an integrated LED light kit, finished in brushed nickel with dark walnut blades, for covered patios, sunrooms, and low-ceiling rooms.
The Spitfire DC Custom combines a sleek, low-profile design with powerful, quiet airflow and customizable lighting. Its 6-speed DC motor delivers up to 7,307 CFM, and the included 18-watt LED light kit offers five color temperatures from warm to daylight. The brushed nickel finish and dark walnut blades bring a modern, natural look. Wi-Fi enabled fanSync technology allows control via smart device or voice assistant, and the included TR360 remote provides convenient handheld control.
Best for
- Covered patios and porches, where the damp-rated construction stands up to humidity without direct rain exposure
- Sunrooms and three-season rooms that need both airflow and adjustable lighting
- Bedrooms and living rooms with ceilings under 8 feet, where a flush mount keeps headroom clear
- Bathrooms and laundry rooms with high humidity, thanks to the damp-rated motor and blades
- Smart-home setups, with Wi-Fi control via the fanSync app and voice assistants
Not ideal for
- Outdoor areas directly exposed to rain or water—this fan is damp-rated, not wet-rated
- Rooms with very high ceilings (over 10 feet) where a downrod mount would provide better airflow distribution
- Very large open-concept spaces over 400 square feet, where a single 54-inch fan may not provide enough airflow
How bright is it?
The integrated 18-watt LED light kit produces 1,600 lumens—about as bright as a 100W incandescent bulb. This is suitable for ambient lighting in a bedroom or living area, but not as a primary task light for detailed work.
Light color and feel
You can choose from five color temperatures: 2700K (warm white), 3000K (soft white), 3500K (neutral), 4000K (cool white), and 5000K (daylight). This lets you shift from a cozy, golden glow to crisp, bright light. With a CRI of 90, colors appear accurate and vibrant.
Sizing and fit
This flush-mount fan measures 54 inches in blade sweep and hangs just 11.33 inches from the ceiling, making it ideal for rooms with low ceilings. The canopy is 7.85 inches in diameter, and the housing is 8.07 inches. It weighs 20.99 pounds and requires a flat ceiling for flush mounting.
Specifications
- Primary Finish: Brushed Nickel
- Blade Material: Buttonwood
- Blade Finish: Dark Walnut
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 54"
- Number of Blades: 3
- Blade Pitch: 21°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 4157
- CFM High: 7307
- Avg Energy Use: 18W
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 54"(L) x 54"(W) x 11.33"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 7.85"(Dia) x 5.02"(H)
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 9.65"
- Ceiling to Bottom (With Light Kit): 11.33"
- Item Weight: 20.99 lbs.
Frequently asked
Is the bulb included? Yes, the integrated LED light kit is included and features a non-replaceable LED module.
Is it dimmable, and what dimmer should I use? The light is dimmable via the included TR360 remote or the fanSync app. The fan speed is also adjustable through the remote.
Can I install this in a bathroom or outdoors? Yes, this fan is damp-rated, so it's safe for bathrooms and covered outdoor areas like patios and porches. It should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser, covering the motor. Contact Fanimation Tech Support at 1-888-567-2055 for assistance.
Does this fan work with sloped ceilings? This flush-mount model is designed for flat ceilings only. For sloped ceilings, consider the downrod version of the Spitfire DC Custom.
