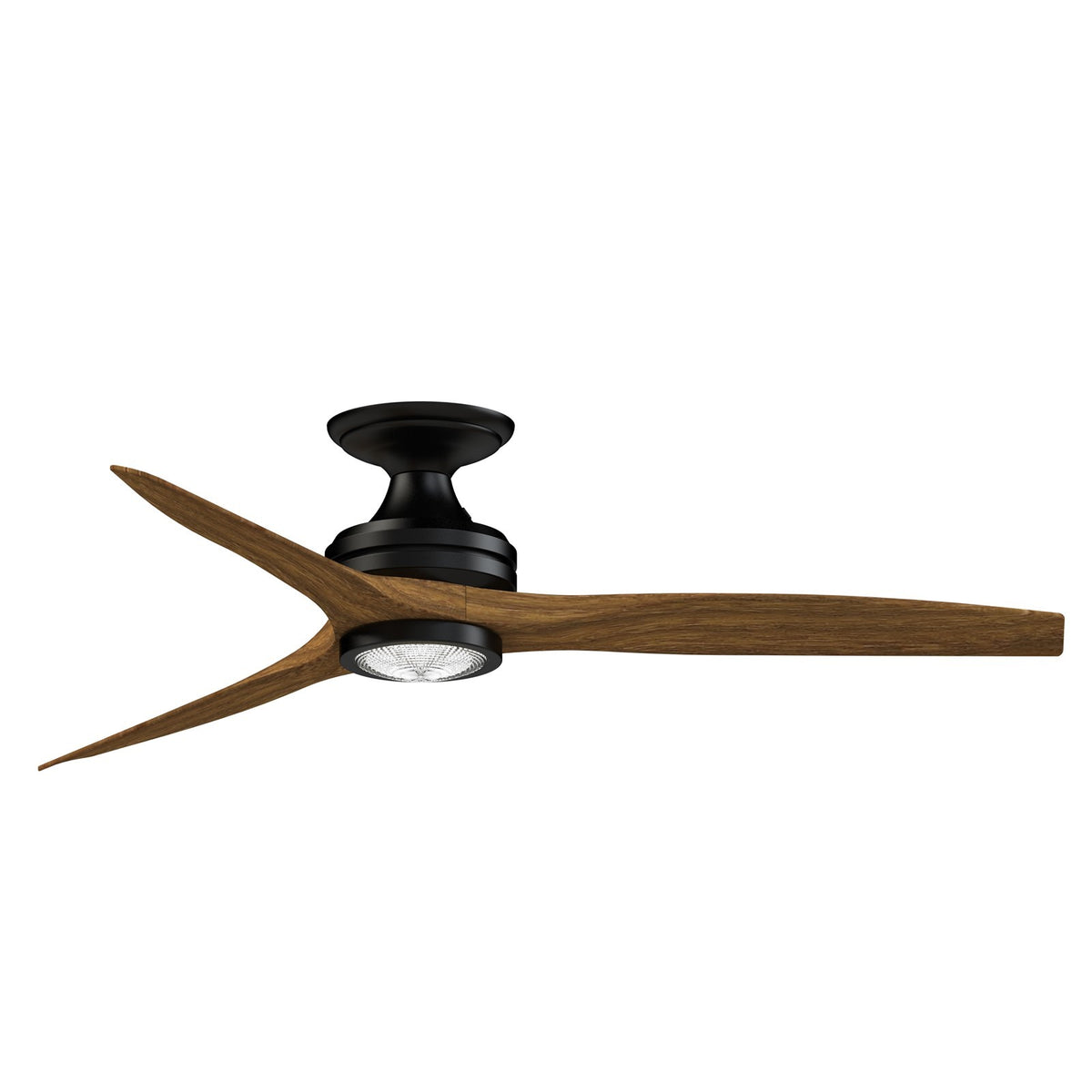

A 54-inch flush-mount smart ceiling fan with an integrated LED light kit, designed for covered outdoor and indoor spaces, finished in black with Koa blades.
The Spitfire DC Custom combines a sleek, low-profile design with powerful performance. Its 6-speed DC motor delivers quiet, efficient airflow up to 7,307 CFM, while the included LED light kit offers five color temperatures (2700K-5000K) for customizable ambiance. With Wi-Fi fanSync technology, you can control the fan and light from your smartphone or voice assistant. The included TR360 remote provides easy control of speed, light dimming, and color selection. Damp-rated for covered patios and porches, this fan is built to withstand humidity while maintaining a modern aesthetic.
Best for
- Covered patios and porches, providing a cool breeze and ambient light without direct rain exposure
- Living rooms and great rooms with low ceilings, thanks to its flush-mount design
- Sunrooms and three-season rooms where humidity and temperature fluctuate
- Bedrooms and home offices, offering quiet operation and adjustable light color for day or night
- Laundry rooms and bathrooms with adequate ceiling height, as it is damp-rated
Not ideal for
- Outdoor areas with direct rain or water exposure, as it is damp-rated, not wet-rated
- Rooms with ceilings under 8 feet if you prefer a downrod mount for extra clearance
- Spaces where you need a light fixture with a single fixed color temperature, as this fan offers selectable CCT
How bright is it?
The integrated LED light kit produces 1,600 lumens, roughly equivalent to a 100-watt incandescent bulb. This is sufficient for ambient lighting in a medium-sized room, but not as a primary task light for detailed work.
Light color and feel
With CCT Select technology, you can choose from 2700K (warm white), 3000K (soft white), 3500K (neutral white), 4000K (cool white), and 5000K (daylight). This flexibility lets you create a cozy, warm atmosphere or a bright, energizing environment. The high CRI of 90 ensures colors appear vivid and accurate.
Sizing and fit
The fan measures 54 inches in diameter and 11.33 inches from ceiling to bottom, making it ideal for rooms with low ceilings. It mounts flush to the ceiling, so it works well in spaces with 8-foot ceilings or lower. The included canopy is 7.85 inches in diameter.
Specifications
- Primary Finish: Black
- Blade Material: Buttonwood
- Blade Finish: Koa
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 54"
- Number of Blades: 3
- Blade Pitch: 21°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 4157
- CFM High: 7307
- Avg Energy Use: 18W
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED module is included.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote. No wall dimmer is required.
Can I install this in a bathroom or outdoors? This fan is damp-rated, so it can be installed in bathrooms and covered outdoor areas, but not in direct rain or wet locations.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
How does the Koa blade finish look? Koa is a rich, dark wood finish with natural grain variation, adding warmth and a tropical touch to the black motor.
