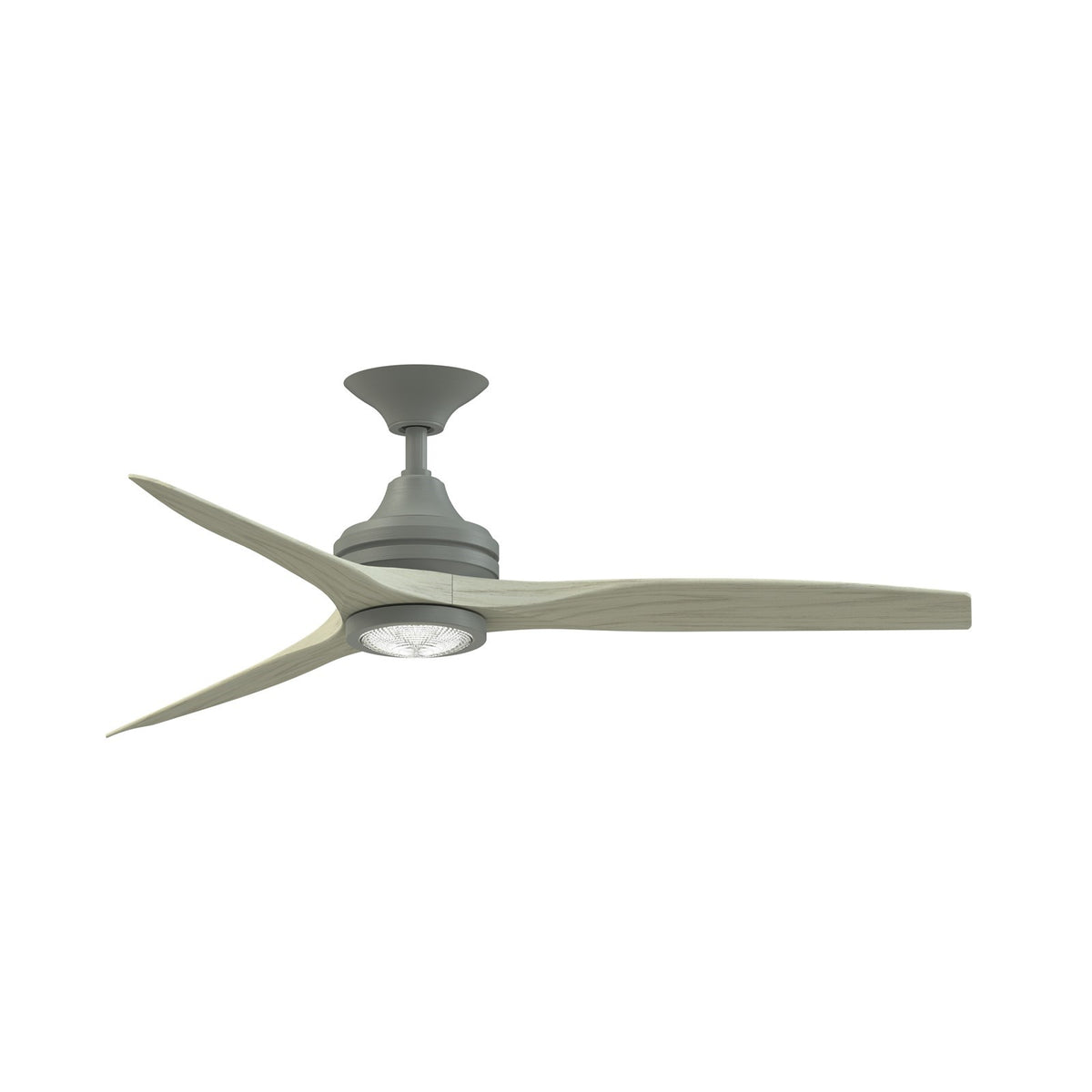

A 54-inch downrod smart ceiling fan with an integrated LED light kit from Fanimation's Spitfire DC Custom collection, finished in antique graphite with light oak blades, designed for indoor and covered outdoor spaces.
The Spitfire DC Custom combines a sleek, modern design with powerful performance. Its 6-speed DC motor delivers quiet, efficient airflow up to 7,307 CFM, while the included TR360 remote and Wi-Fi fanSync app give you full control from anywhere. This version includes an 18-watt LED light kit with CCT Select technology, offering five color temperatures from warm white to daylight. Damp rated for covered patios and porches, it brings smart comfort and customizable lighting to any room.
Best for
- Covered patios and porches where a damp-rated fan with light is needed
- Bedrooms and living rooms with standard 8-9 foot ceilings, using the included downrods
- Sunrooms and laundry rooms that need reliable air movement in humid conditions
- Smart home setups - control via Wi-Fi, voice assistant, or the fanSync app
Not ideal for
- Rooms with very low ceilings (under 8 feet) - the downrod adds height
- Areas directly exposed to rain or water - this fan is damp rated, not wet rated
- Those who prefer a flush mount - this model uses downrods
How bright is it?
The integrated 18W LED light kit provides 1600 lumens - about as bright as a 100W incandescent bulb, ideal for ambient lighting in medium to large rooms.
Light color and feel
With CCT Select technology, you can choose from five color temperatures - 2700K (warm white) to 5000K (daylight) - to match your mood and decor. The CRI of 90 ensures colors appear vibrant and true.
Sizing and fit
This fan measures 54 inches in diameter and hangs 21.08 inches from the ceiling with the included 6-inch downrod (or 27.08 inches with the 12-inch downrod). It's designed for flat or slightly sloped ceilings (up to 20°). Optional downrods up to 72 inches are available for taller ceilings.
Specifications
- Primary Finish: Antique Graphite
- Blade Material: Buttonwood
- Blade Finish: Light Oak
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 54"
- Number of Blades: 3
- Blade Pitch: 21°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 4157
- CFM High: 7307
- Avg Energy Use: 18W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED light kit is included and features CCT Select technology.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote, which offers infinite light dimming.
Can I install this in a bathroom or outdoors? Yes, this fan is damp rated, making it suitable for bathrooms, covered patios, and other humid indoor or covered outdoor spaces. It should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
Does this fan work with sloped ceilings? Yes, it supports slopes up to 20° and includes both 6-inch and 12-inch downrods.
