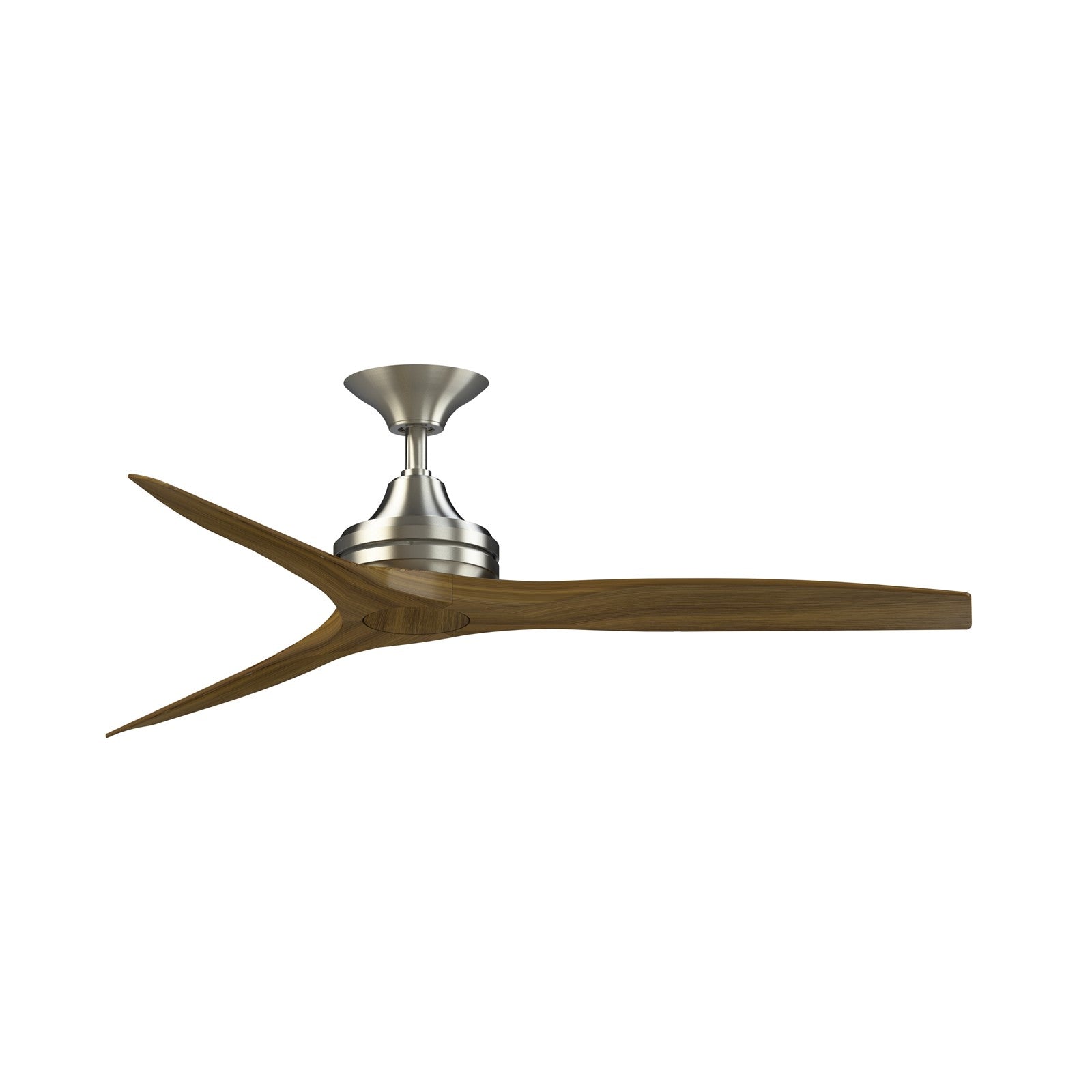

A 54-inch downrod smart ceiling fan for covered patios, sunrooms, and large rooms, finished in brushed nickel with koa blades.
The Spitfire DC Custom combines a sleek design with powerful, quiet airflow. Its 6-speed DC motor delivers up to 7,307 CFM, making it a strong choice for large spaces. The brushed nickel finish and koa blades bring a warm, natural look that suits contemporary and transitional interiors. Wi-Fi enabled fanSync technology lets you control the fan and optional light kit from your smart device or voice assistant, while the included TR360 remote offers convenient handheld control.
Best for
- Covered patios and porches, where the damp-rated construction stands up to humidity without direct rain exposure
- Sunrooms and three-season rooms that need powerful airflow and a downrod mount
- Living rooms and great rooms with ceilings 8 feet or higher, using the included downrods to achieve optimal height
- Bedrooms where you want a fan without a light kit, for a minimalist look
- Smart-home setups, with Wi-Fi control via the fanSync app and voice assistants
Not ideal for
- Outdoor areas directly exposed to rain or water—this fan is damp-rated, not wet-rated
- Rooms where you want a light kit included—this model is compatible but the light kit is sold separately
- Very large open-concept spaces over 400 square feet, where a single 54-inch fan may not provide enough airflow
How bright is it?
This fan does not include a light kit, so brightness depends on the optional 18-watt LED light kit you add. That kit produces 1,600 lumens—about as bright as a 100W incandescent bulb—suitable for ambient lighting in a bedroom or living area, not as a primary task light.
Light color and feel
If you add the optional LED light kit, you can choose from five color temperatures: 2700K (warm white), 3000K (soft white), 3500K (neutral), 4000K (cool white), and 5000K (daylight). This lets you shift from a cozy, golden glow to crisp, bright light. With a CRI of 90, colors appear accurate and vibrant.
Sizing and fit
This downrod fan measures 54 inches in blade sweep and hangs 19.69 inches from the ceiling with the included 6-inch downrod. It also includes a 12-inch downrod, and optional downrods up to 72 inches are available to achieve the recommended 7-9 foot hanging height. The canopy is 7.85 inches in diameter, and the housing is 8.07 inches. It weighs 17.93 pounds and is designed for flat or slightly sloped ceilings (up to 20°).
Specifications
- Primary Finish: Brushed Nickel
- Blade Material: Buttonwood
- Blade Finish: Koa
- Collection: Spitfire
- Blade Sweep: 54"
- Number of Blades: 3
- Blade Pitch: 21°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 4157
- CFM High: 7307
- Avg Energy Use: 18W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 54"(L) x 54"(W) x 19.69"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 7.85"(Dia) x 5.02"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Item Weight: 17.93 lbs.
Frequently asked
Is the bulb included? No, this fan does not include a light kit. The integrated LED light kit is sold separately.
Is it dimmable, and what dimmer should I use? The fan speed is adjustable via the remote, but the light kit (if added) is dimmable. Use the included TR360 remote or the fanSync app to dim the light.
Can I install this in a bathroom or outdoors? Yes, this fan is damp-rated, so it's safe for bathrooms and covered outdoor areas like patios and porches. It should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser, covering the motor. Contact Fanimation Tech Support at 1-888-567-2055 for assistance.
Does this fan work with sloped ceilings? Yes, it is designed for flat or slightly sloped ceilings up to 20°. For steeper slopes, you may need a sloped ceiling adapter (sold separately).
