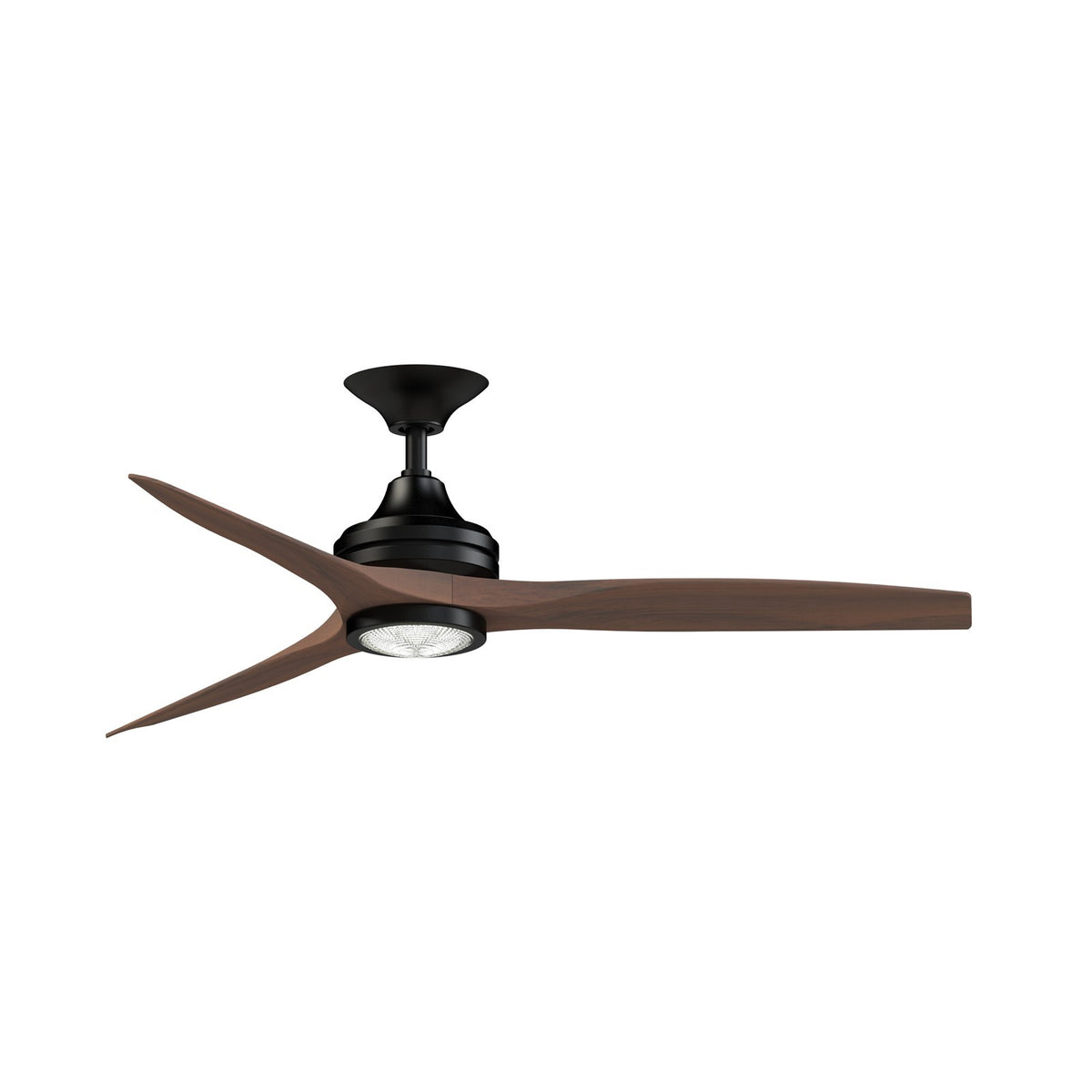

A 54-inch downrod smart ceiling fan from Fanimation's Spitfire collection, finished in matte black with whiskey wood blades, featuring an integrated LED light kit with CCT Select technology.
The Spitfire DC Custom pairs a sleek black motor housing with three whiskey wood blades for a modern, streamlined look. Its 6-speed DC motor delivers powerful yet quiet airflow up to 7,307 CFM, while the included TR360 remote and Wi-Fi fanSync app give you full control from anywhere. This downrod version includes a 6-inch and 12-inch downrod for flexible installation on flat or slightly sloped ceilings. The integrated 18-watt LED light kit offers five color temperatures, from warm to daylight, and is dimmable via the remote. Damp rated for covered outdoor use, it's built to handle humidity without direct rain exposure.
Best for
- Covered patios and porches where a downrod fan provides better airflow
- Sunrooms, bathrooms, and laundry rooms with high humidity
- Bedrooms and living areas with ceilings 8 to 9 feet high
- Smart home setups with voice assistants or the fanSync app
Not ideal for
- Rooms with ceilings under 8 feet, as the downrod adds height
- Areas directly exposed to rain or water, as it is damp rated, not wet rated
How bright is it?
The integrated 18-watt LED light kit outputs 1600 lumens - roughly equivalent to a 100W incandescent bulb, providing ample ambient light for most rooms. It is dimmable via the included remote.
Light color and feel
With CCT Select technology, you can choose from five color temperatures (2700K to 5000K) to shift from warm, cozy light to bright daylight. The high CRI of 90 ensures colors appear vivid and accurate, ideal for living spaces.
Sizing and fit
With a 54-inch blade sweep and a height of 19.42 inches (using the 6-inch downrod), this fan fits rooms with standard 8-9 foot ceilings. The overall dimensions are 54 inches wide by 54 inches deep by 19.42 inches high, and it weighs 19.23 pounds.
Specifications
- Primary Finish: Black
- Blade Material: Buttonwood
- Blade Finish: Whiskey Wood
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 54"
- Number of Blades: 3
- Blade Pitch: 21°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 4157
- CFM High: 7307
- Avg Energy Use: 18W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED light kit is included and features CCT Select technology.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote, which offers infinite light dimming.
Can I install this in a bathroom or outdoors? Yes, it is damp rated for covered outdoor areas and high-humidity indoor spaces like bathrooms, but it should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
Does this fan work with smart home systems? Yes, it features Wi-Fi enabled fanSync technology, allowing control via compatible smart devices, voice assistants, or the fanSync app.
