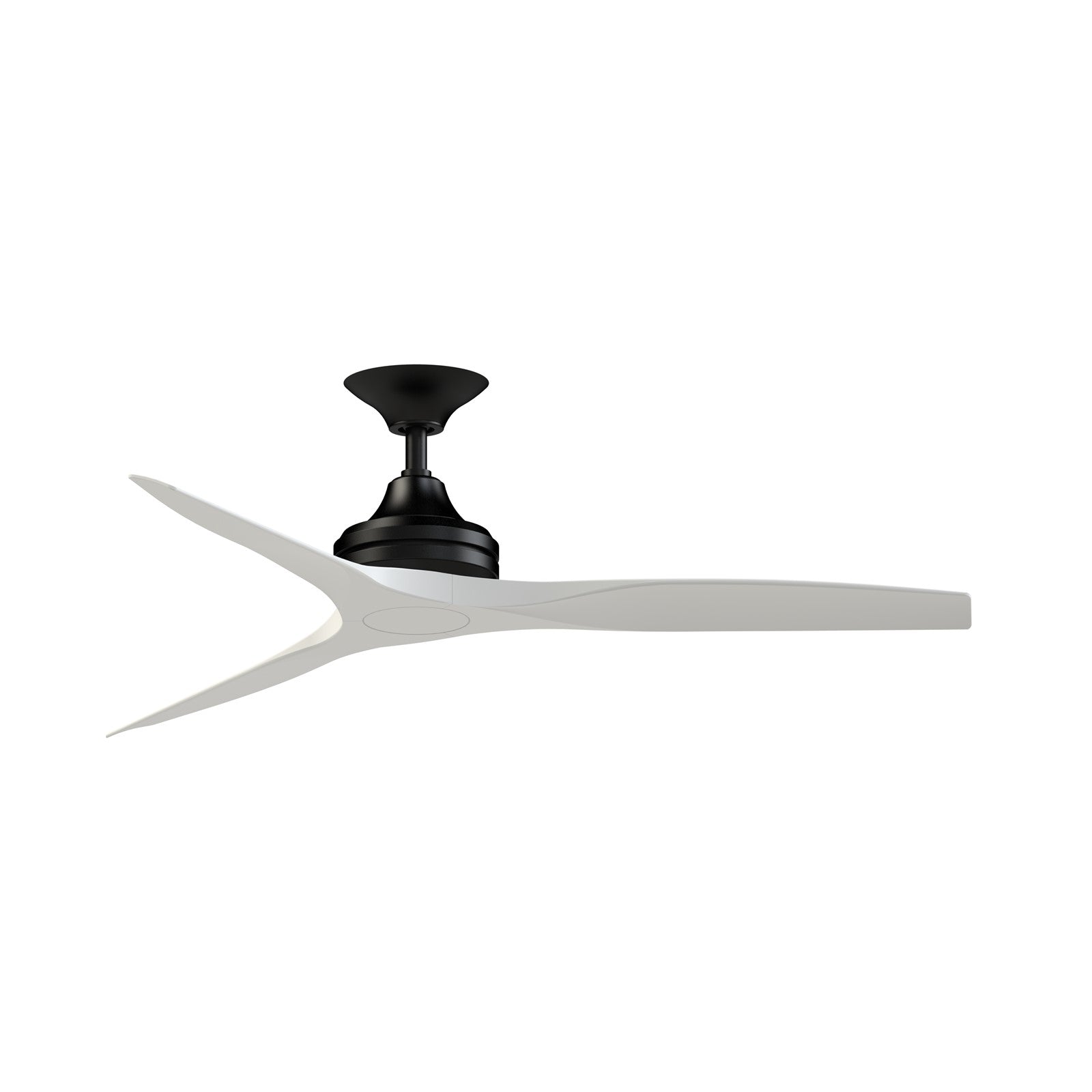

A 54-inch downrod smart ceiling fan for indoor and covered outdoor spaces, finished in black with Matte White blades, compatible with an optional LED light kit.
The Spitfire DC Custom offers a sleek, modern design with powerful performance. Its 6-speed DC motor delivers quiet, efficient airflow up to 7,307 CFM. This version is compatible with an integrated 18-watt LED light kit (sold separately) that features CCT Select technology for five color temperatures. The included TR360 remote provides full control, and Wi-Fi fanSync technology allows smartphone or voice control. Damp-rated for covered patios and porches, this fan is built to withstand humidity while maintaining a clean aesthetic.
Best for
- Covered patios and porches, providing a cool breeze without direct rain exposure
- Living rooms and great rooms with standard or sloped ceilings, thanks to the included downrods
- Sunrooms and three-season rooms where humidity and temperature fluctuate
- Bedrooms and home offices, offering quiet operation and optional light color adjustment
- Laundry rooms and bathrooms with adequate ceiling height, as it is damp-rated
Not ideal for
- Outdoor areas with direct rain or water exposure, as it is damp-rated, not wet-rated
- Rooms with very low ceilings (under 8 feet) if you need the fan to hang higher, as the downrod adds height
- Spaces where you need a light fixture included, as the light kit is sold separately
How bright is it?
This fan does not include a light kit, but it is compatible with Fanimation's integrated 18-watt LED light kit (sold separately), which produces 1,600 lumens - roughly equivalent to a 100-watt incandescent bulb.
Light color and feel
When paired with the optional light kit, you can choose from 2700K (warm white), 3000K (soft white), 3500K (neutral white), 4000K (cool white), and 5000K (daylight) via CCT Select technology. The high CRI of 90 ensures colors appear vivid and accurate.
Sizing and fit
The fan measures 54 inches in diameter and 19.69 inches from ceiling to bottom with the included 12-inch downrod. It includes both 6-inch and 12-inch downrods, and optional downrods up to 72 inches are available to achieve the recommended hanging height of 7 to 9 feet. It is designed for flat or slightly sloped ceilings (up to 20°).
Specifications
- Primary Finish: Black
- Blade Material: Buttonwood
- Blade Finish: Matte White
- Collection: Spitfire
- Blade Sweep: 54"
- Number of Blades: 3
- Blade Pitch: 21°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 4157
- CFM High: 7307
- Avg Energy Use: 18W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
What is it made of? The motor housing is finished in black, and the blades are made of buttonwood with a matte white finish.
Where in the home does this work best? This fan is ideal for living rooms, bedrooms, covered patios, and sunrooms. It is damp-rated, so it can be used in bathrooms and covered outdoor areas, but not in direct rain.
How is it mounted or assembled? The fan mounts to the ceiling using the included 6-inch and 12-inch downrods. It includes Fanimation's KwikWire feature for easier wiring.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
Can I add a light kit later? Yes, this fan is compatible with Fanimation's integrated LED light kit, which is sold separately.
