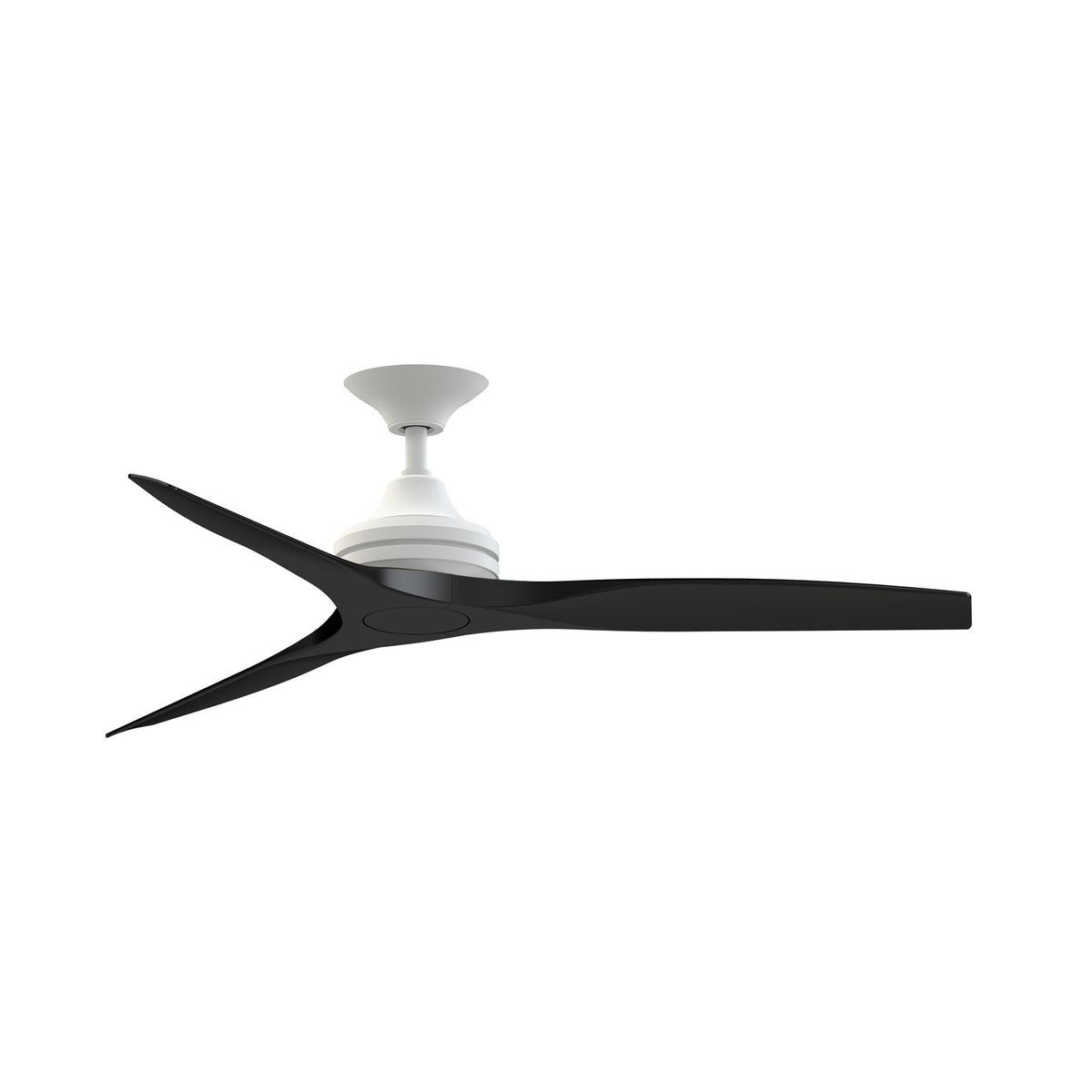

A 54-inch smart ceiling fan without a light kit, designed for covered outdoor and indoor spaces.
The Spitfire DC Custom pairs a Matte White motor with Black Buttonwood blades for a sleek, modern look. Its 6-speed DC motor delivers powerful airflow up to 7,307 CFM. Control it all with the included TR360 remote or your smart device via Wi-Fi fanSync. This version is compatible with an optional LED light kit (sold separately).
Best for
- Covered patios and porches, providing a cooling breeze without a light
- Bedrooms and living rooms where a separate light source is preferred
- Sunrooms and three-season rooms where damp-rated fixtures are required
- Outdoor kitchens and covered entertainment areas
- Indoor spaces with ceilings up to 20° slope
Not ideal for
- Directly exposed outdoor locations - this fan is damp-rated, not wet-rated, so it should not be installed where it will get rained on
- Rooms that need a built-in light fixture, since this model does not include a light kit
- Small rooms under 10x10 ft where a 54-inch sweep might be too large
How bright is it?
This fan does not include a light kit, so brightness depends on your room's existing lighting. It is compatible with an optional 18-watt LED light kit (sold separately) that offers 1600 lumens and five color temperatures.
Light color and feel
If you add the optional light kit, you can choose from five color temperatures: 2700K (warm white), 3000K (soft white), 3500K (neutral), 4000K (cool white), and 5000K (daylight). The kit includes both fresnel and frosted shades for customizable diffusion.
Sizing and fit
This fan has a 54-inch blade sweep and overall dimensions of 54 x 54 x 19.69 inches. It includes 6-inch and 12-inch downrods, and optional downrods up to 72 inches are available. Ideal for ceilings 8 feet or higher, and it can be mounted on slopes up to 20°.
Specifications
- Primary Finish: Matte White
- Blade Material: Buttonwood
- Blade Finish: Black
- Collection: Spitfire
- Blade Sweep: 54"
- Number of Blades: 3
- Blade Pitch: 21°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 4157
- CFM High: 7307
- Avg Energy Use: 18W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
What is it made of? The motor housing is Matte White, and the blades are made of Buttonwood with a Black finish.
Where in the home does this work best? This fan is damp-rated, so it works well in covered patios, porches, sunrooms, bathrooms, and laundry rooms. It can also be used in living rooms and bedrooms.
How is it mounted or assembled? It mounts to flat or sloped ceilings (up to 20°) and includes 6-inch and 12-inch downrods. Assembly is required.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
Can I add a light kit later? Yes, this fan is compatible with an optional 18-watt LED light kit with CCT Select technology, sold separately.
