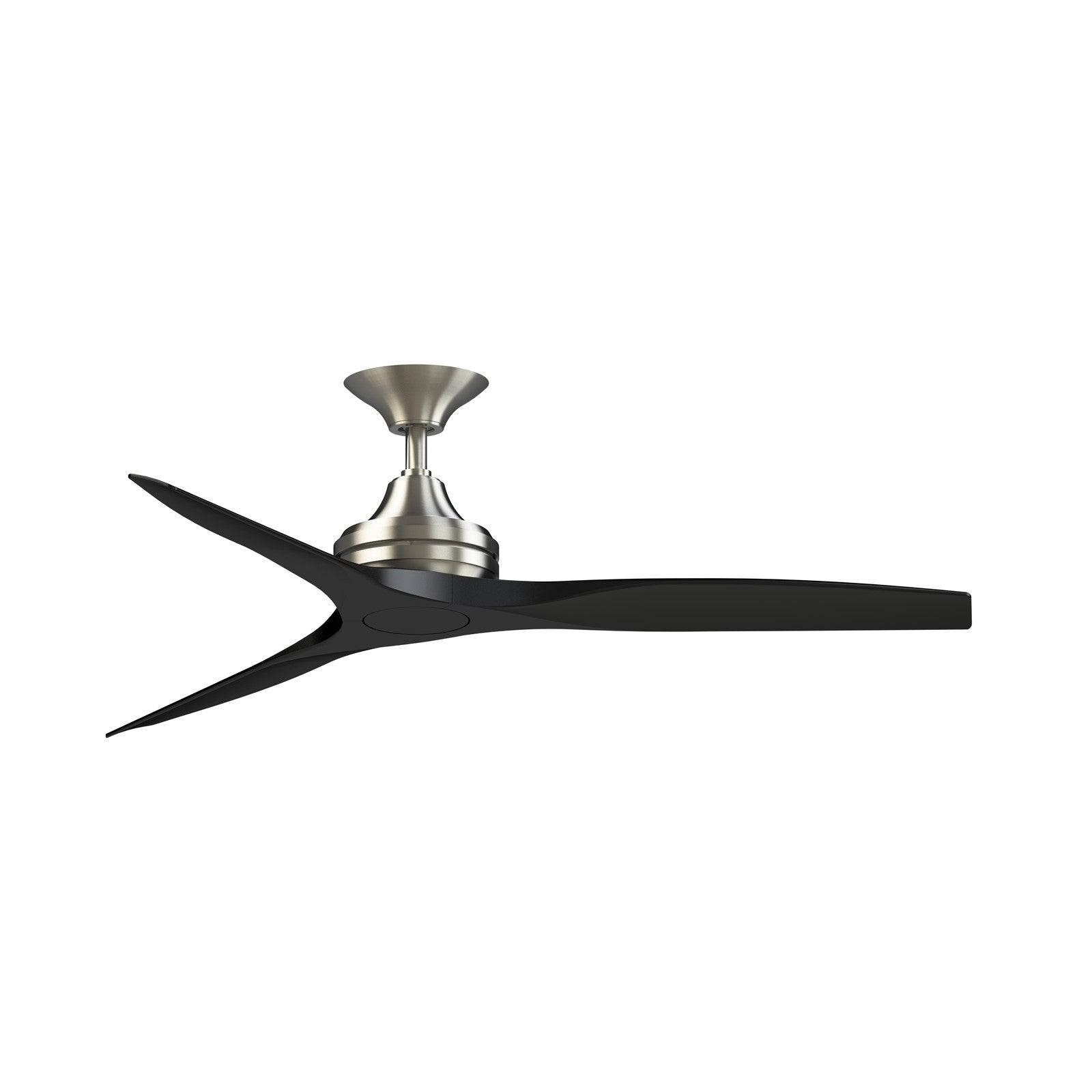

A 54-inch smart ceiling fan without a light kit, designed for medium to large indoor and covered outdoor spaces like living rooms, bedrooms, and covered patios.
The Spitfire DC Custom pairs a Brushed Nickel motor with Black Buttonwood blades for a sleek, modern look. Its 6-speed DC motor delivers quiet airflow up to 7,307 CFM, and it is compatible with an optional integrated LED light kit (sold separately). Control everything with the included TR360 remote or your smart device via Wi-Fi fanSync technology.
Best for
- Living rooms and family rooms 15x15 ft or larger, where high airflow is needed
- Covered patios, porches, and sunrooms, thanks to its damp-rated construction
- Bedrooms and home offices, where quiet operation is appreciated
- Spaces where you want to add a light kit later, as it is compatible with Fanimation's CCT Select LED kit
- Smart home setups, with voice control via compatible assistants
Not ideal for
- Outdoor areas exposed directly to rain or water - this fan is damp-rated, not wet-rated
- Small rooms under 10x10 ft, where the 54-inch sweep may be too large
- Rooms with ceilings under 8 ft if you use a long downrod - the included 6-inch and 12-inch downrods are best for standard ceilings
Style and finish
The Brushed Nickel motor finish has a soft, satin sheen that pairs well with modern and transitional decor. The Black blades add contrast and a contemporary edge. The overall look is streamlined and versatile, fitting into a variety of design styles.
Materials and care
The blades are made from Buttonwood, a durable hardwood. Clean with a soft, dry cloth to remove dust. The motor housing is metal with a Brushed Nickel finish; wipe with a damp cloth and dry immediately. Care instructions for the finish are not specified by the manufacturer.
Sizing and fit
This fan has a 54-inch blade sweep and measures 54 inches wide by 54 inches deep by 19.69 inches high (with the included 12-inch downrod). It includes both 6-inch and 12-inch downrods for flexible installation. Optional downrods up to 72 inches are available for higher ceilings. The canopy is 7.85 inches in diameter, and the housing is 8.07 inches.
Specifications
- Primary Finish: Brushed Nickel
- Blade Material: Buttonwood
- Blade Finish: Black
- Collection: Spitfire
- Blade Sweep: 54"
- Number of Blades: 3
- Blade Pitch: 21°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 4157
- CFM High: 7307
- Avg Energy Use: 18W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 54"(L)54"(W) x 19.69"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 7.85"(Dia) x 5.02"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Item Weight: 17.93 lbs.
Frequently asked
What is it made of? The motor housing is metal with a Brushed Nickel finish, and the blades are made from Buttonwood hardwood.
Where in the home does this work best? This fan is ideal for living rooms, bedrooms, and covered outdoor spaces like patios and sunrooms, thanks to its damp rating.
How is it mounted or assembled? It mounts to the ceiling using the included downrods (6-inch and 12-inch) and ceiling bracket. Assembly is required, but Fanimation's KwikWire technology simplifies wiring.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
Can I add a light kit later? Yes, this fan is compatible with Fanimation's integrated LED light kit with CCT Select technology, which is sold separately.
