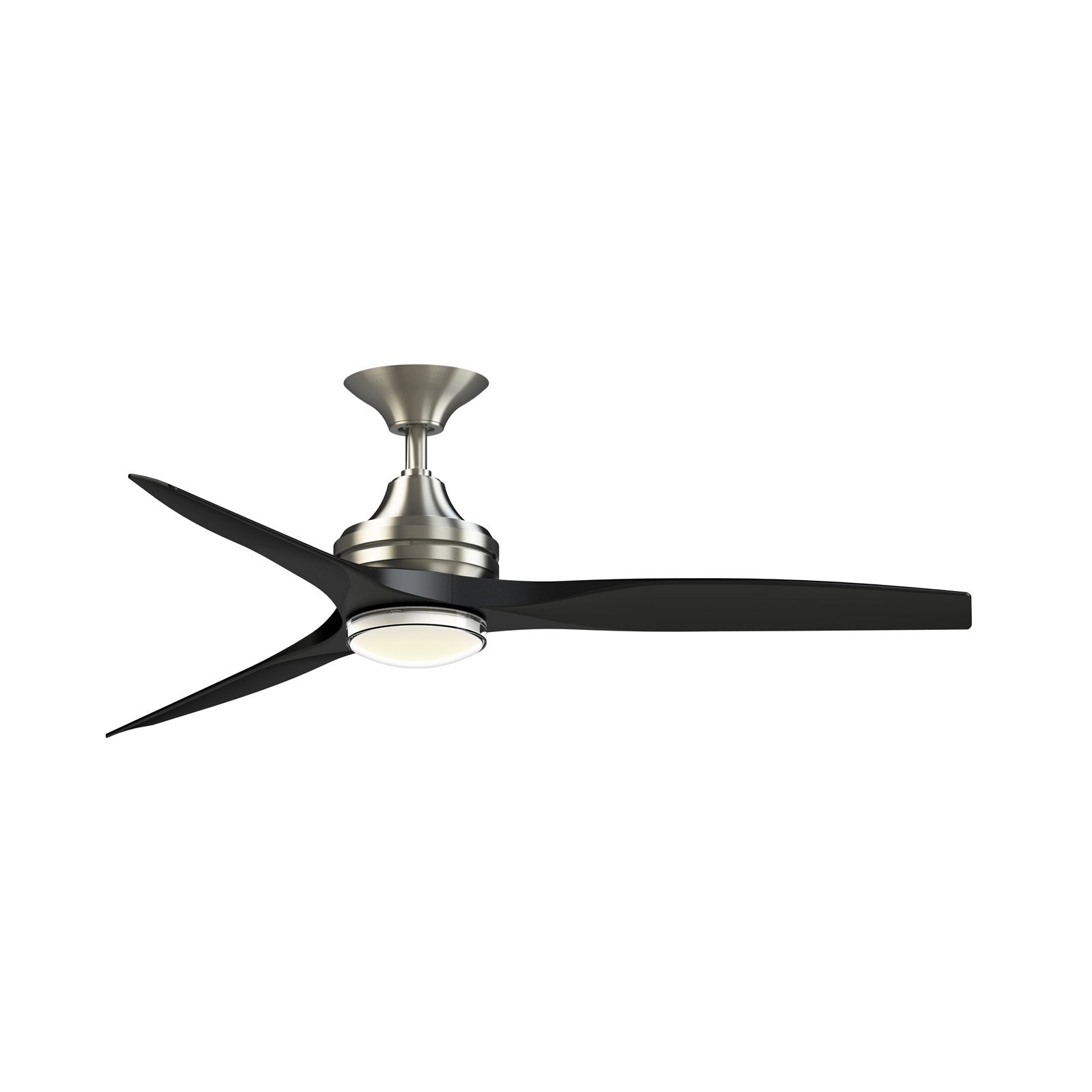

A 54-inch smart ceiling fan with an integrated LED light kit, designed for medium to large indoor and covered outdoor spaces like living rooms, bedrooms, and covered patios.
The Spitfire DC Custom pairs a Brushed Nickel motor with Black Buttonwood blades for a sleek, modern look. Its 6-speed DC motor delivers quiet airflow up to 7,307 CFM, and the integrated 24-watt LED light kit with CCT Select technology offers five color temperatures from warm to daylight. The double-walled marine-grade glass shade is built for durability. Control everything with the included TR360 remote or your smart device via Wi-Fi fanSync technology.
Best for
- Living rooms and family rooms 15x15 ft or larger, where high airflow is needed
- Covered patios, porches, and sunrooms, thanks to its damp-rated construction
- Bedrooms and home offices, where quiet operation and adjustable lighting are appreciated
- Spaces where you want both cooling and customizable lighting from one fixture
- Smart home setups, with voice control via compatible assistants
Not ideal for
- Outdoor areas exposed directly to rain or water - this fan is damp-rated, not wet-rated
- Small rooms under 10x10 ft, where the 54-inch sweep may be too large
- Rooms with ceilings under 8 ft if you use a long downrod - the included 6-inch and 12-inch downrods are best for standard ceilings
How bright is it?
The integrated 24-watt LED module produces 2000 lumens - roughly equivalent to a 150W incandescent bulb. This is sufficient for ambient lighting in a medium to large room, and it is dimmable for lower light levels.
Light color and feel
With CCT Select technology, you can choose from 2700K (warm white), 3000K (soft white), 3500K (neutral), 4000K (cool white), or 5000K (daylight). The 90 CRI rating ensures colors appear vivid and accurate. The light is dimmable via the remote or app.
Sizing and fit
This fan has a 54-inch blade sweep and measures 54 inches wide by 54 inches deep by 22 inches high (with the included 12-inch downrod). It includes both 6-inch and 12-inch downrods for flexible installation. Optional downrods up to 72 inches are available for higher ceilings. The canopy is 7.85 inches in diameter, and the housing is 8.07 inches.
Specifications
- Primary Finish: Brushed Nickel
- Blade Material: Buttonwood
- Blade Finish: Black
- Shade Finish: Clear
- Collection: Spitfire
- Blade Sweep: 54"
- Number of Blades: 3
- Blade Pitch: 21°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 24W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 2000
- Voltage: 120V
- Avg CFM: 4157
- CFM High: 7307
- Avg Energy Use: 18W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 54"(L)54"(W) x 16, 22"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 7.85"(Dia) x 5.02"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Ceiling to Bottom (With Light Kit): 16, 22"
- Item Weight: 19.74 lbs.
Frequently asked
Is the bulb included? Yes, the integrated LED module is included.
Is it dimmable, and what dimmer should I use? Yes, it is dimmable via the included TR360 remote or the fanSync app. No wall dimmer is required.
Can I install this in a bathroom or outdoors? This fan is damp-rated, so it is suitable for bathrooms and covered outdoor areas, but it should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
What makes the light kit marine-grade? The double-walled glass shade is constructed with marine-grade materials, making it more durable and suitable for outdoor wet locations.
