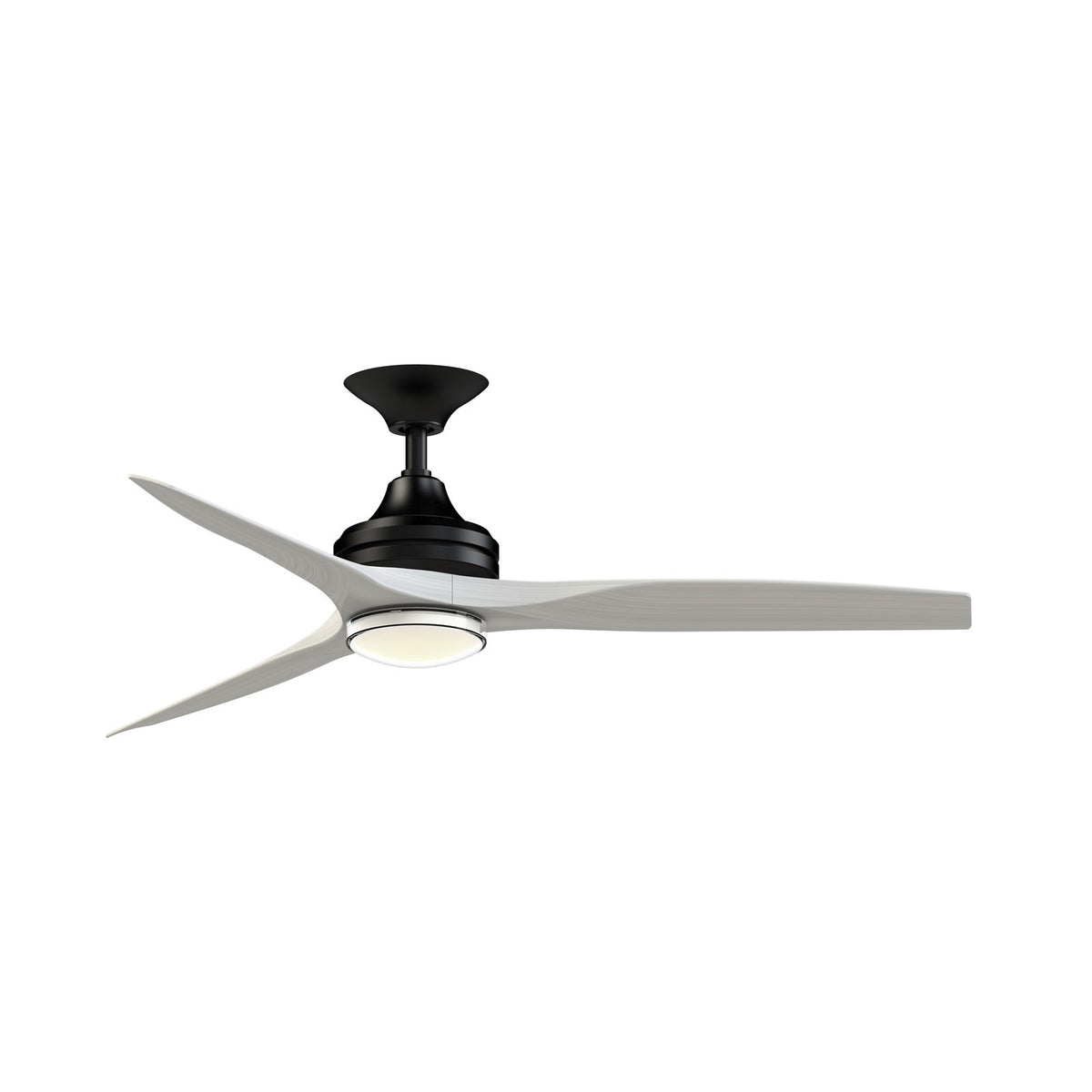

A 54-inch damp-rated smart ceiling fan with an integrated LED light kit, designed for covered outdoor and indoor spaces like patios, porches, and sunrooms.
The Spitfire DC Custom pairs a sleek Black motor with White Washed Buttonwood blades for a modern, streamlined look. Its 6-speed DC motor delivers powerful airflow up to 7,307 CFM while staying quiet and energy-efficient. This version includes a double-walled marine-grade light kit with CCT Select technology, letting you choose from five color temperatures to match your mood. Control it all with the included TR360 remote or your smart device via fanSync Wi-Fi.
Best for
- Covered patios and porches, where damp-rated construction handles humidity and moisture
- Sunrooms and large living areas needing powerful airflow up to 7,307 CFM
- Bedrooms and family rooms where quiet operation and smart control are valued
- Spaces with 8-9 ft ceilings, using the included 6-inch or 12-inch downrods
- Rooms where adjustable light color (2700K-5000K) is desired
Not ideal for
- Outdoor areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
- Rooms with ceilings under 7 ft unless using the flush-mount version
- Small spaces under 100 sq ft where a 54-inch sweep may be overpowering
How bright is it?
2000 lumens - about as bright as a 150W incandescent bulb, suitable for ambient lighting in medium to large rooms. The integrated LED module is dimmable, so you can adjust brightness to your preference.
Light color and feel
Five selectable color temperatures from 2700K warm white to 5000K daylight. With a CRI of 90, colors render accurately, making it suitable for kitchens and living areas. The double-walled glass shade diffuses light evenly.
Sizing and fit
This 54-inch fan fits rooms of 12x12 ft or larger. With the included downrods, the ceiling-to-bottom height ranges from 16 to 22 inches. For sloped ceilings up to 20 degrees, optional downrods up to 72 inches are available.
Specifications
- Primary Finish: Black
- Blade Material: Buttonwood
- Blade Finish: White Washed
- Shade Finish: Clear
- Collection: Spitfire
- Blade Sweep: 54"
- Number of Blades: 3
- Blade Pitch: 21°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 24W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 2000
- Voltage: 120V
- Avg CFM: 4157
- CFM High: 7307
- Avg Energy Use: 18W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED module is included.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote or the fanSync app. No wall dimmer is needed.
Can I install this in a bathroom or outdoors? It is damp-rated, so it can be used in bathrooms and covered outdoor areas, but not directly exposed to rain.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
How does the double-walled marine light kit differ from the standard kit? The double-walled construction is more durable and suitable for outdoor wet locations, though the fan itself is only damp-rated.
