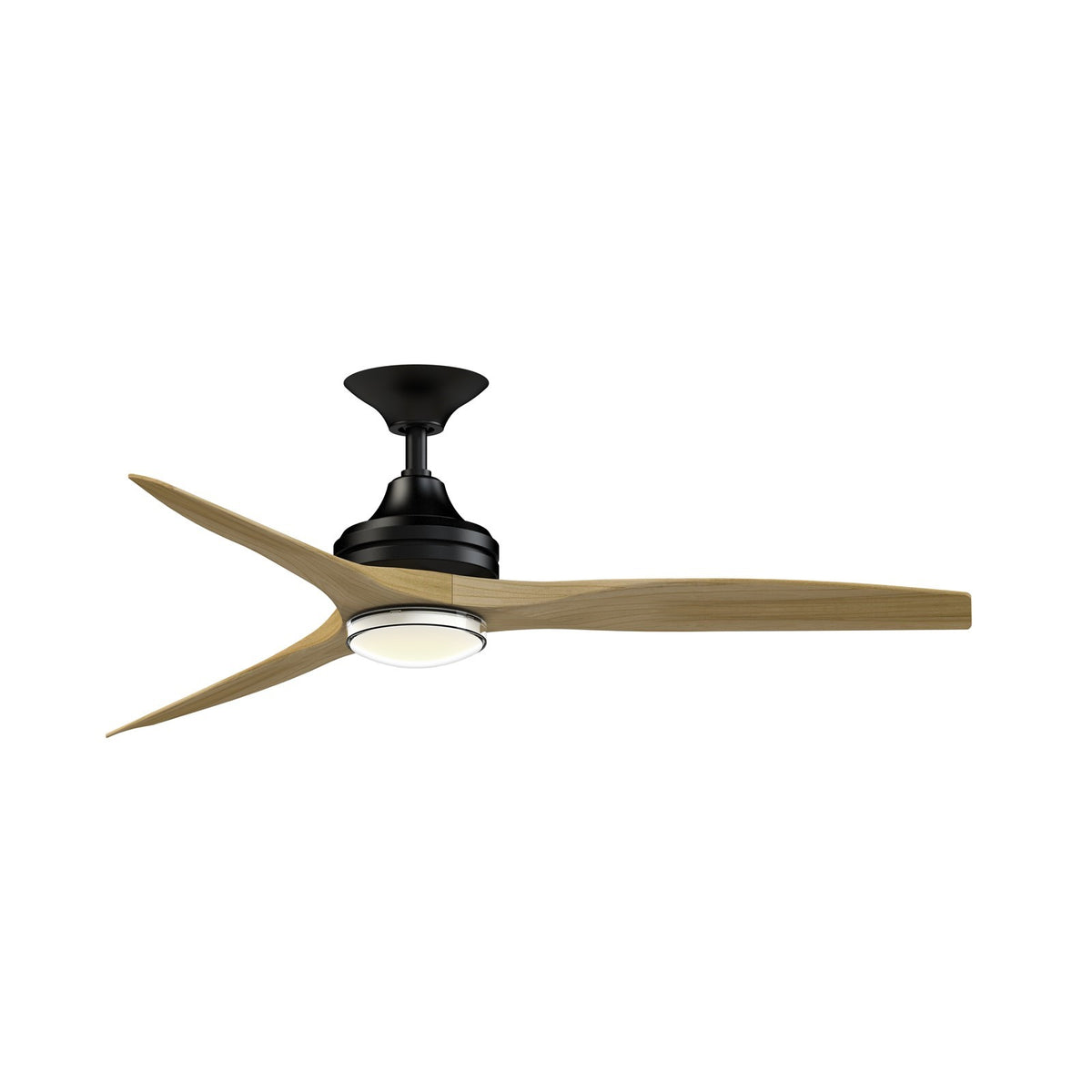

A 54-inch smart ceiling fan with an integrated LED light kit, designed for covered outdoor and indoor spaces, finished in black with natural buttonwood blades.
The Spitfire DC Custom pairs a sleek black motor with natural buttonwood blades for a modern, organic look. Its 6-speed DC motor delivers powerful, quiet airflow up to 7,307 CFM, while the integrated LED light kit offers five color temperatures from warm to daylight. Control it all with the included handheld remote or your smart device via Wi-Fi fanSync technology.
Best for
- Covered patios and porches, where damp-rated construction stands up to humidity
- Living rooms and great rooms up to 20x20 ft, providing strong airflow and ambient light
- Sunrooms and three-season rooms that need year-round comfort
- Bedrooms and home offices, with quiet operation and adjustable light color
- Spaces with ceilings up to 20° slope, using the included downrods
Not ideal for
- Areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
- Rooms with ceilings under 7 ft, as the downrod mount requires clearance
- Those seeking a fan without a light kit, as this model includes an integrated LED module
How bright is it?
This fan's LED light kit produces 2000 lumens - roughly equivalent to a 100W incandescent bulb. It's bright enough to serve as a primary light source in a medium-sized room, but you may want additional task lighting for detailed work.
Light color and feel
With CCT Select technology, you can choose from 2700K (warm white), 3000K (soft white), 3500K (neutral), 4000K (cool white), or 5000K (daylight). This flexibility lets you shift from a cozy, warm glow to a crisp, energizing light. With a CRI of 90, colors appear vibrant and accurate.
Sizing and fit
This fan measures 54 inches in diameter and hangs 16 to 22 inches from the ceiling (with light kit) using the included 6-inch and 12-inch downrods. It's designed for flat or sloped ceilings up to 20 degrees. The recommended hanging height is 7 to 9 feet for optimal airflow.
Specifications
- Primary Finish: Black
- Blade Material: Buttonwood
- Blade Finish: Natural
- Shade Finish: Clear
- Collection: Spitfire
- Blade Sweep: 54"
- Number of Blades: 3
- Blade Pitch: 21°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 24W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 2000
- Voltage: 120V
- Avg CFM: 4157
- CFM High: 7307
- Avg Energy Use: 18W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED module is included and rated for 24W.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote or the fanSync app. No separate wall dimmer is needed.
Can I install this in a bathroom or outdoors? This fan is damp-rated, so it's suitable for covered outdoor areas and bathrooms with humidity, but not for direct rain exposure.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
Does it work with voice assistants? Yes, via Wi-Fi fanSync technology, you can control the fan and light with compatible smart devices and voice assistants.
Ships from our warehouse in 1-4 Business Days
