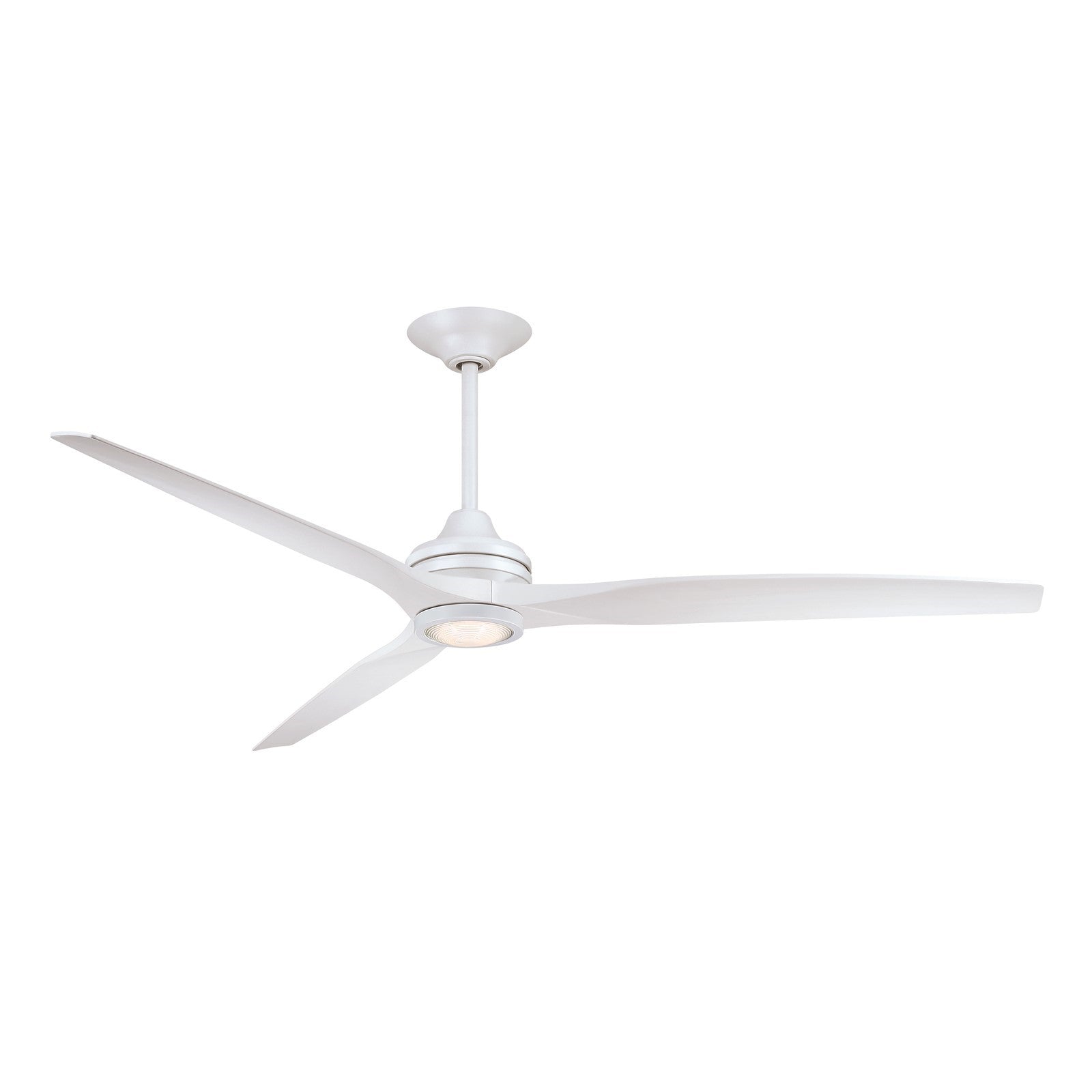

A 72-inch indoor/outdoor smart ceiling fan with an integrated LED light kit, designed for large covered patios, porches, and great rooms.
The Spitfire DC Custom pairs a sleek Matte White motor and blades with a versatile light kit that includes both fresnel and frosted glass shades, delivering powerful airflow up to 9,639 CFM from its quiet 6-speed DC motor. The integrated 18-watt LED module offers five selectable color temperatures (2700K to 5000K) so you can shift from warm ambiance to bright daylight. Control it all with the included TR360 handheld remote or your smart device via Wi-Fi fanSync technology.
Best for
- Covered patios and porches where damp-rated fixtures are needed
- Large living rooms and great rooms up to 400 sq ft
- Sunrooms and three-season rooms with high ceilings
- Bedrooms and home offices needing quiet, energy-efficient airflow
- Outdoor kitchens and covered dining areas
Not ideal for
- Directly exposed outdoor areas without a roof or cover - this fan is damp-rated, not wet-rated
- Rooms with ceilings under 8 ft if you need the fan close to the ceiling - use the flush-mount version instead
- Small spaces under 100 sq ft where a 72-inch sweep may be overpowering
How bright is it?
The integrated LED module produces 1600 lumens - roughly equivalent to a 100W incandescent bulb, bright enough to illuminate a large living area or covered patio. It is dimmable via the remote for adjustable ambiance.
Light color and feel
Choose from five color temperatures: 2700K warm white (soft, golden), 3000K soft white, 3500K neutral white, 4000K cool white, and 5000K daylight. With a CRI of 90, colors appear vivid and natural. The included fresnel and frosted shades let you choose between a clear, focused beam or a soft, diffused glow.
Sizing and fit
This fan measures 72 inches in diameter and hangs 15.35 to 21.35 inches from the ceiling with the included 6-inch and 12-inch downrods. It is designed for flat or slightly sloped ceilings (up to 20 degrees). For optimal airflow, mount the fan so the blades are 7 to 9 feet above the floor.
Specifications
- Primary Finish: Matte White
- Blade Material: Buttonwood
- Blade Finish: Matte White
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 72"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 6237
- CFM High: 9639
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, an integrated LED module is included and cannot be replaced.
Is it dimmable, and what dimmer should I use? Yes, it is dimmable via the included TR360 remote. No wall dimmer is required.
Can I install this in a bathroom or outdoors? This fan is damp-rated, so it is suitable for bathrooms and covered outdoor areas, but not for direct rain exposure.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
What is the difference between the fresnel and frosted shades? The fresnel shade provides a clearer, more focused light, while the frosted shade offers a softer, more diffused glow. Both are included so you can choose your preferred ambiance.
