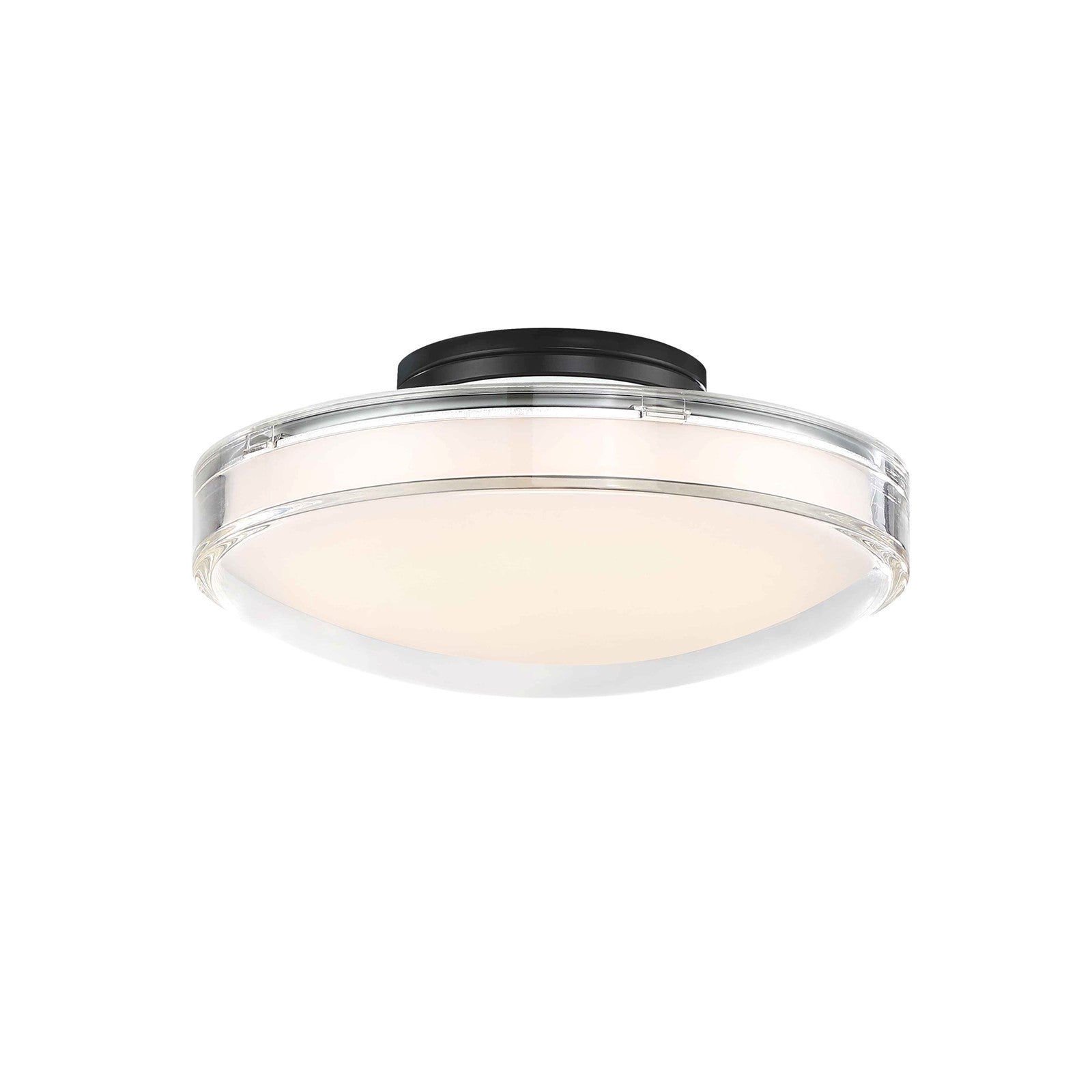

A wet-rated double-walled LED light kit with clear glass shade, designed for Fanimation Spitfire, Aviara, and Aviara Coastal ceiling fans, ideal for exposed outdoor areas.
This marine-grade light kit from Fanimation adds refined illumination to compatible ceiling fans. The clear glass shade and double-walled construction provide a clean, modern look while protecting the LED module. With CCT Select technology, you can choose from five color temperatures, and the 24W dimmable LED delivers 2,000 lumens of bright, energy-efficient light. Wet-rated for direct rain exposure, it's perfect for patios, pergolas, and gazebos.
Best for
- Exposed patios, pergolas, and gazebos where wet-rated construction is required
- Fanimation Spitfire, Aviara, and Aviara Coastal ceiling fans (compatible models)
- Outdoor living spaces needing bright, adjustable ambient light with CCT select
- Indoor spaces where a sleek, clear glass light kit is desired
- Dimmable lighting for entertaining or relaxing
Not ideal for
- Ceiling fans not listed as compatible (Spitfire, Aviara, Aviara Coastal only)
- Spaces requiring a large light fixture - this is a compact 6.85-inch diameter kit
- Users who prefer warm-only lighting - color temperature is adjustable but requires remote/app
How bright is it?
The 24W LED delivers 2,000 lumens - comparable to a 100W incandescent bulb, providing bright ambient light for outdoor areas up to 200 sq ft.
Light color and feel
With CCT Select, choose from 2700K (warm white) to 5000K (daylight). The 90+ CRI ensures accurate color rendering. Dimmable via compatible fan remote or fanSync app for adjustable ambiance.
Sizing and fit
Compact design: 6.85" W x 6.85" D x 3.1" H. Weighs only 1.81 lbs. Installs by removing the trim cap and light kit wire cover on compatible fans.
Specifications
- Finish: Clear
- Shade Color: Clear
- Bulb: (1) 24W LED Module
- Bulb Base: Connector Pin
- Bulb Color Temp: 2700, 3000, 3500, 4500, 5000
- Bulb Lumens: 2000
- Bulb CRI: 90
- Voltage: 120V
- Light Kit Included: True
- Safety Rating: UL Only Listed
- For Use in Wet Locations
- Warranty: 1 Year
- Item Weight: 1.81 lbs
Frequently asked
Is the bulb included? Yes, the 24W LED module is integrated and included.
Is it dimmable, and what dimmer should I use? Yes, dimmable via the compatible fan's remote or fanSync app. No external dimmer needed.
Can I install this in a bathroom or outdoors? Yes, it is wet-rated for direct rain exposure, ideal for uncovered outdoor areas.
What's the warranty? 1-year warranty for the original purchaser.
Which fans is this compatible with? This light kit is designed for Fanimation Spitfire, Aviara, and Aviara Coastal ceiling fans.
