A 96-inch downrod smart ceiling fan for large indoor and covered outdoor spaces, with powerful airflow and smart control.

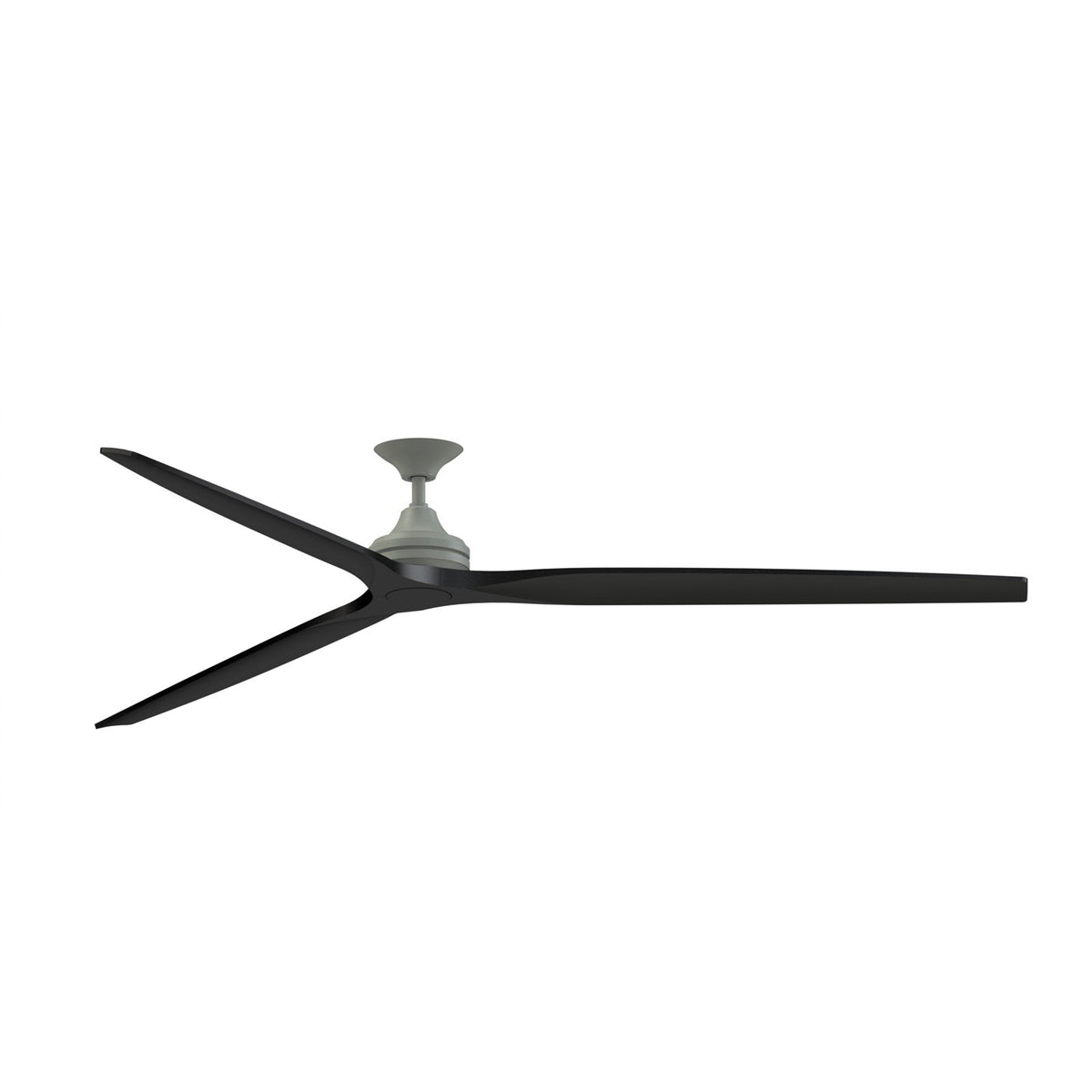

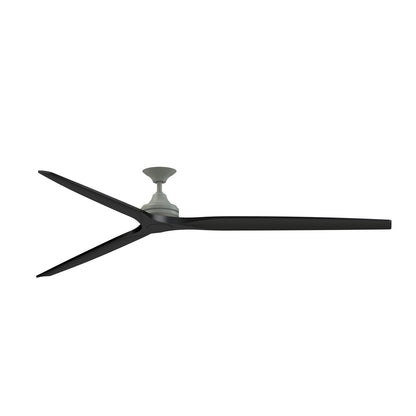

The Spitfire DC Custom delivers exceptional performance with its 6-speed DC motor, moving up to 12,413 CFM. The Antique Graphite finish and Black blades create a bold, modern look. This fan is compatible with an optional integrated LED light kit (sold separately) and includes the TR360 remote for convenient control. Wi-Fi enabled fanSync technology allows control via smart device or voice assistant.
Best for
- Covered patios and porches, rated for damp locations
- Great rooms and open-concept living areas with high ceilings
- Sunrooms and enclosed porches where humidity is a concern
- Bedrooms and living spaces needing quiet, energy-efficient airflow
- Rooms with sloped ceilings up to 20 degrees
Not ideal for
- Outdoor areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
- Small rooms under 12x12 ft where a 96-inch sweep may be overpowering
- Low ceilings under 8 feet, as downrods are required
How bright is it?
This fan is compatible with an optional integrated 18-watt LED light kit (sold separately) that produces 1600 lumens - comparable to a 100W incandescent bulb. The light is dimmable and offers CCT Select technology for five color temperatures.
Light color and feel
When the optional light kit is added, you can choose from 2700K (warm white), 3000K (soft white), 3500K (neutral white), 4000K (cool white), or 5000K (daylight). This flexibility lets you create the perfect atmosphere, from cozy and warm to bright and invigorating. With a CRI of 90, colors appear vibrant and true.
Sizing and fit
This fan has a 96-inch blade sweep and includes both 6-inch and 12-inch downrods for flexible installation. The overall dimensions are 96 inches wide by 96 inches deep by 19.69 inches high. It is designed for flat or slightly sloped ceilings up to 20 degrees.
Specifications
- Primary Finish: Antique Graphite
- Blade Material: Buttonwood
- Blade Finish: Black
- Collection: Spitfire
- Blade Sweep: 96"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 8515
- CFM High: 12413
- Avg Energy Use: 24W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? No, this fan does not include a light kit. It is compatible with an optional integrated 18W LED light kit (sold separately).
Is it dimmable, and what dimmer should I use? When the optional light kit is added, the light is dimmable via the included TR360 remote, which offers infinite light dimming.
Can I install this in a bathroom or outdoors? This fan is damp-rated, making it suitable for bathrooms and covered outdoor areas, but it should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
Does this fan work with voice assistants? Yes, the Wi-Fi enabled fanSync technology allows control via compatible smart devices and voice assistants.
