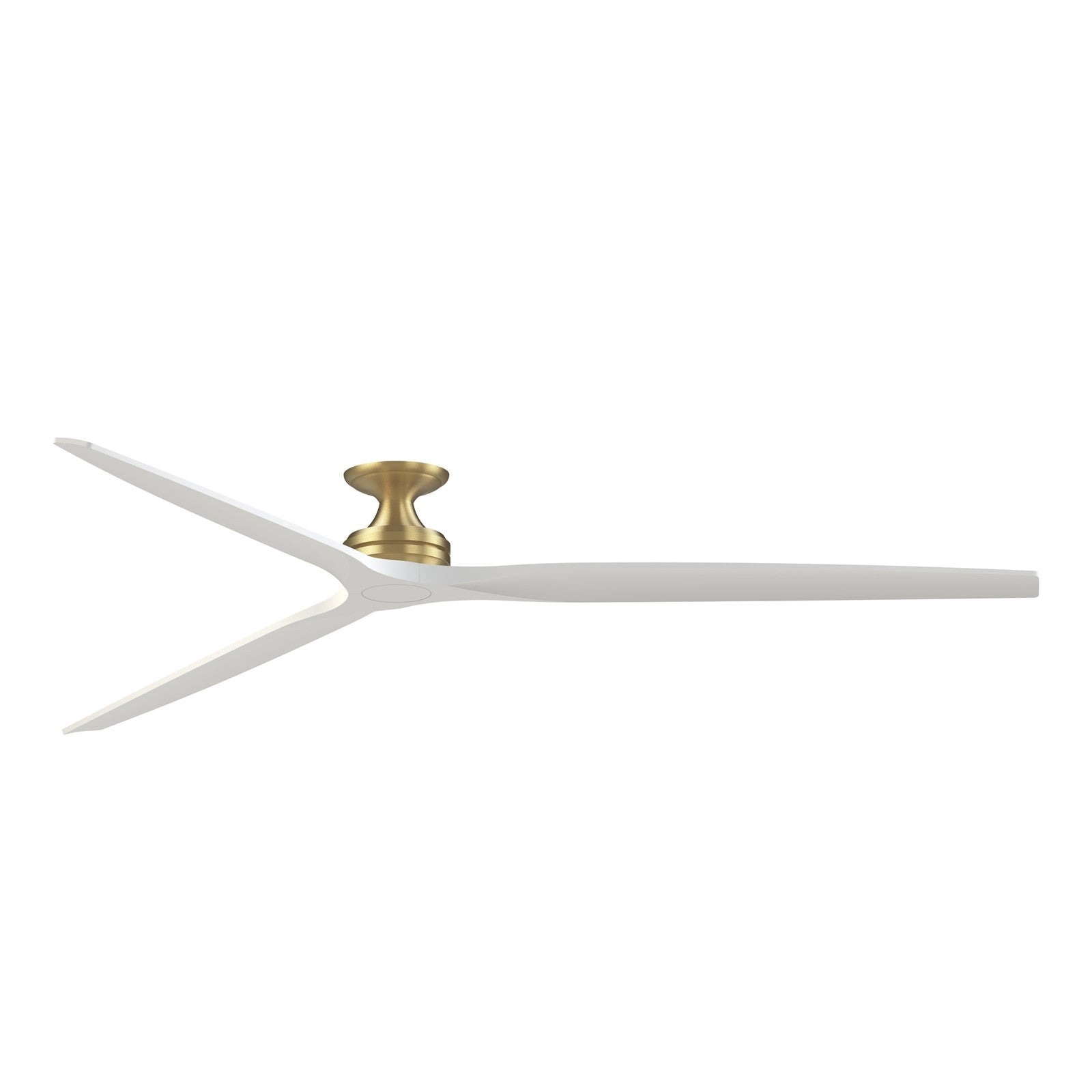

A 96-inch flush-mount smart ceiling fan for large covered outdoor and indoor spaces, finished in brushed satin brass with matte white blades.
The Spitfire DC Custom is a statement-scale ceiling fan that pairs a streamlined brushed satin brass motor housing with three matte white blades. Its 6-speed DC motor moves up to 12,413 CFM of air quietly and efficiently, and the included TR360 remote plus Wi-Fi fanSync app control make it easy to adjust from anywhere. Damp rated, it is built for covered patios, porches, sunrooms, and other humid environments.
Best for
- Covered patios and porches up to 20x20 ft, mounted flush to a flat ceiling
- Sunrooms and three-season rooms where humidity and moisture are a concern
- Large living rooms and great rooms with high ceilings, used as a primary air circulator
- Bedrooms and home offices needing quiet, energy-efficient airflow with smart control
- Low-ceiling rooms where a flush mount is required
Not ideal for
- Areas directly exposed to rain or water - this fan is damp rated, not wet rated
- Small rooms under 12x12 ft where a 96-inch sweep would overwhelm the space
- Ceilings with a slope greater than 20 degrees without an angled mount adapter
How bright is it?
This fan does not include a light kit. It is compatible with an optional integrated 18-watt LED light kit (sold separately) that delivers 1600 lumens - roughly equivalent to a 100W incandescent bulb - with five selectable color temperatures.
Light color and feel
When paired with the optional light kit, you can choose from 2700K warm white, 3000K soft white, 3500K neutral white, 4000K cool white, or 5000K daylight. With a CRI of 90, colors appear vivid and accurate. The light is dimmable via the remote or app.
Sizing and fit
This flush-mount fan measures 96 inches in diameter and hangs 9.65 inches from the ceiling. It is designed for flat ceilings and fits rooms with low ceilings. The included ceiling bracket supports a secure mount.
Specifications
- Primary Finish: Brushed Satin Brass
- Blade Material: Buttonwood
- Blade Finish: Matte White
- Collection: Spitfire
- Blade Sweep: 96"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 8515
- CFM High: 12413
- Avg Energy Use: 24W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? No, this fan does not include a light kit. The optional LED light kit is sold separately.
Is it dimmable, and what dimmer should I use? The optional light kit is dimmable via the included TR360 remote or the fanSync app. No wall dimmer is required.
Can I install this in a bathroom or outdoors? Yes, this fan is damp rated for covered outdoor areas and humid indoor spaces like bathrooms and laundry rooms, but it should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser, covering the motor. Contact Fanimation Tech Support at 1-888-567-2055.
How do I control the fan? The included TR360 handheld remote controls 6 speeds, reversing, and light functions. The fan also features Wi-Fi fanSync connectivity for control via smart device or voice assistant.
