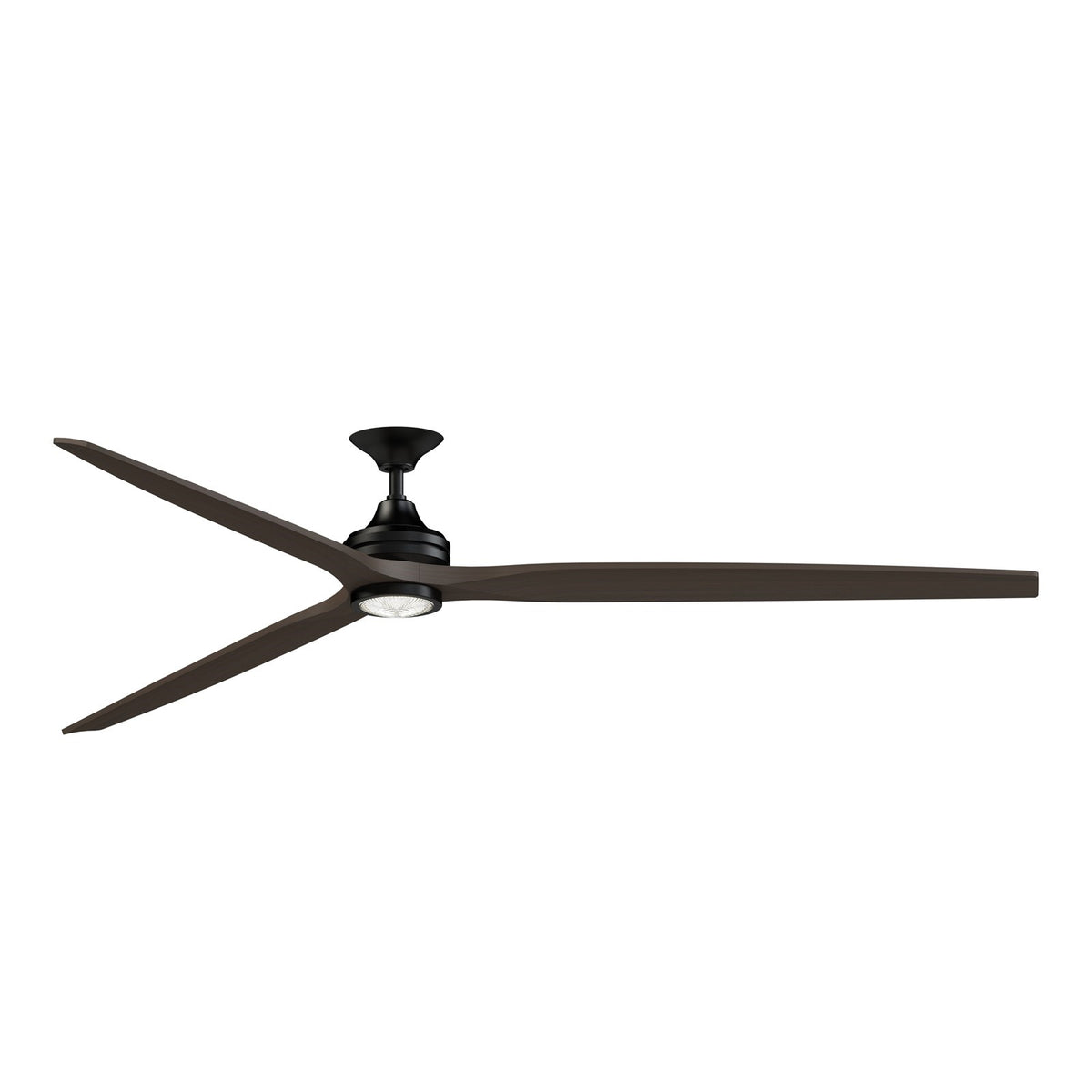

A 96-inch downrod smart ceiling fan with integrated LED light kit for large covered outdoor and indoor spaces, finished in black with dark walnut blades.
The Spitfire DC Custom with light kit brings a sleek black motor, three dark walnut blades, and an integrated 18-watt LED module with CCT Select technology. Choose from five color temperatures (2700K to 5000K) to shift the ambiance from warm to daylight. The 6-speed DC motor delivers up to 12,413 CFM of quiet airflow. Control fan speed, light dimming, and color temperature via the included TR360 remote or your smart device with Wi-Fi fanSync.
Best for
- Covered patios and porches needing both air movement and ambient light
- Great rooms and open-plan living areas with ceilings 10 ft or higher
- Sunrooms and three-season rooms that need year-round comfort
- Rooms with standard 8-9 ft ceilings using the included 6-inch downrod
- Smart-home setups wanting voice or app control
Not ideal for
- Direct rain or water exposure - this fan is damp-rated, not wet-rated
- Low ceilings under 8 ft where a flush mount is preferred
- Small rooms under 12 x 12 ft where a 96-inch sweep is overpowering
How bright is it?
The integrated 18-watt LED module outputs 1600 lumens - roughly equivalent to a 100W incandescent bulb - providing ample ambient light for a large room.
Light color and feel
With CCT Select, you can choose from 2700K (warm white) to 5000K (daylight) to match your mood. The 90 CRI rating ensures colors appear vibrant and accurate. The light is dimmable via the remote.
Sizing and fit
This downrod fan measures 96 inches in blade sweep and hangs 19.42 inches from the ceiling with the included 6-inch downrod. It's designed for flat or slightly sloped ceilings (up to 20°). Optional downrods up to 72 inches are available for higher ceilings.
Specifications
- Primary Finish: Black
- Blade Material: Buttonwood
- Blade Finish: Dark Walnut
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 96"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 8515
- CFM High: 12413
- Avg Energy Use: 24W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED module is included.
Is it dimmable, and what dimmer should I use? The light is dimmable via the included TR360 remote, which offers infinite light dimming.
Can I install this in a bathroom or outdoors? Yes, it's damp-rated for covered outdoor areas and bathrooms, but not for direct rain exposure.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
Does this fan work with sloped ceilings? Yes, it supports slopes up to 20°.
