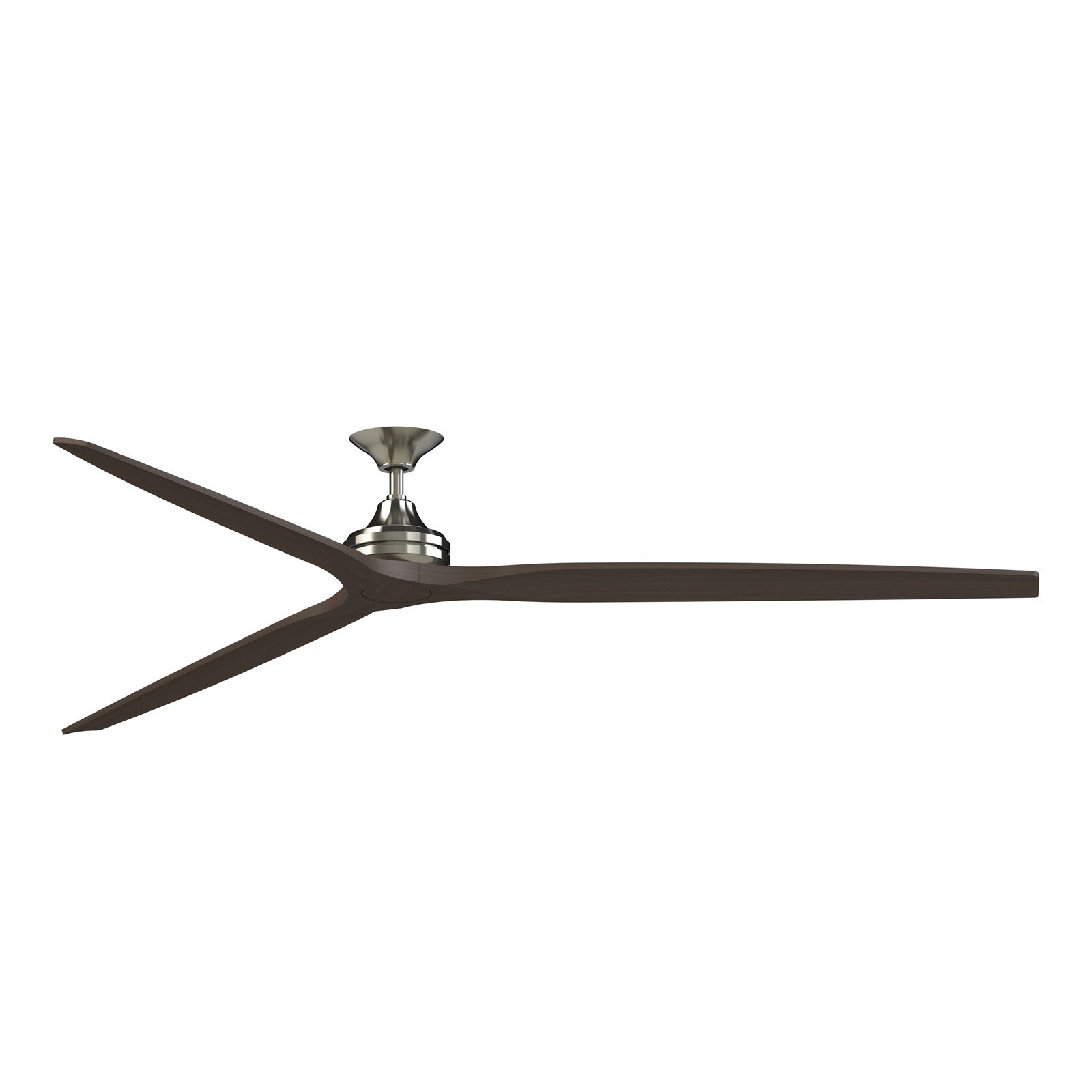

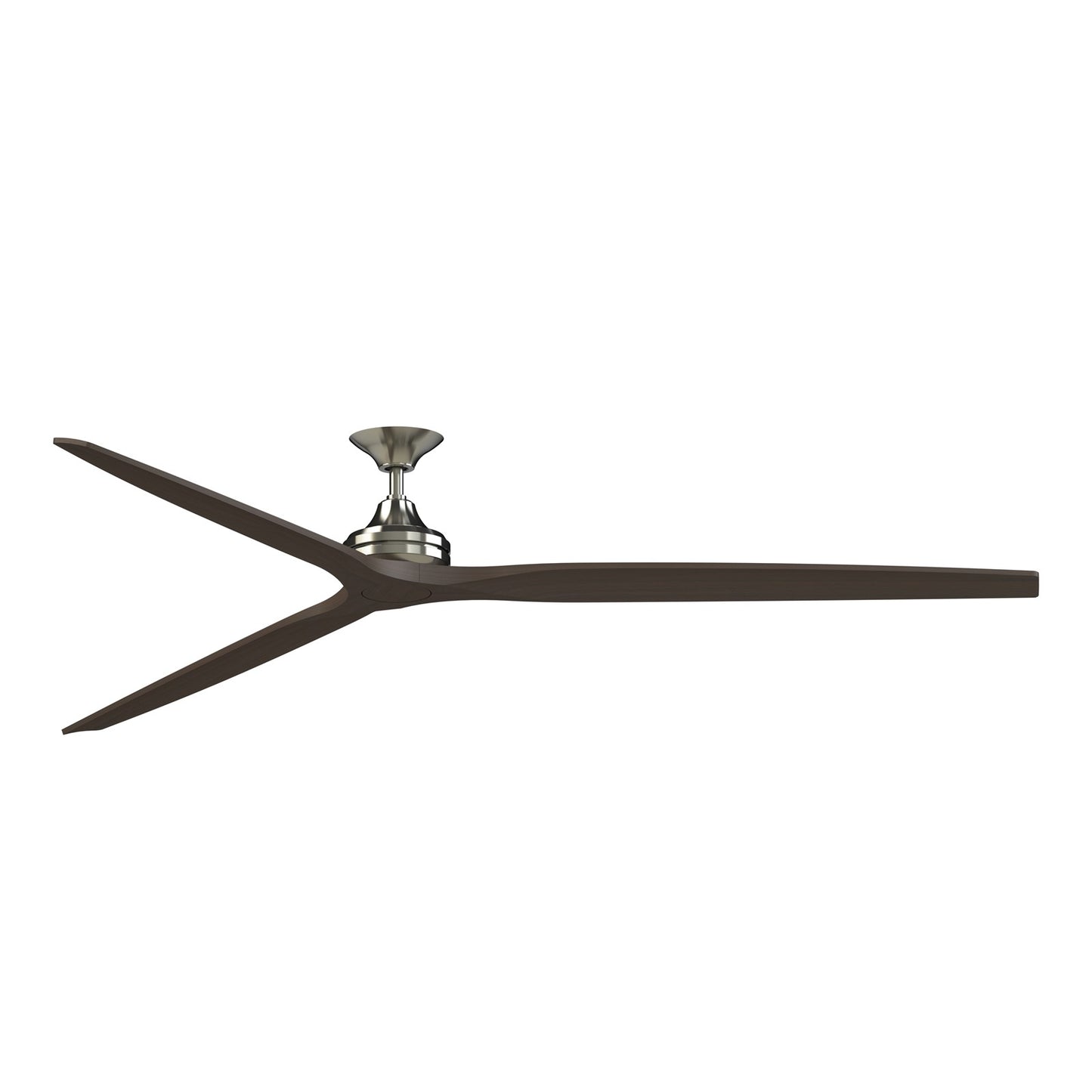

A 96-inch downrod smart ceiling fan with a Brushed Nickel motor and Dark Walnut blades, designed for large indoor and covered outdoor spaces.
The Spitfire DC Custom from Fanimation delivers powerful, quiet airflow up to 12,413 CFM from its 6-speed DC motor. This version is compatible with an optional LED light kit (sold separately) and includes the TR360 remote and Wi-Fi fanSync for smart control. The downrod design allows for flexible installation on flat or sloped ceilings.
Best for
- Covered patios and porches, where the damp-rated motor and blades withstand humidity
- Large living rooms and great rooms, providing high-volume airflow
- Sunrooms and enclosed porches, adding comfort and light
- Bedrooms and home offices, with quiet operation and adjustable light
Not ideal for
- Spaces with ceilings under 8 feet, as the downrod adds height
- Directly exposed to rain or water, as it is damp-rated, not wet-rated
How bright is it?
This fan does not include a light kit, but is compatible with an optional 18-watt LED kit that provides 1600 lumens - about as bright as a 100W incandescent bulb.
Light color and feel
If you add the optional light kit, you can choose from 2700K warm white to 5000K daylight, with a CRI of 90 for accurate colors.
Sizing and fit
This fan has a 96-inch blade sweep and includes 6-inch and 12-inch downrods, with a height of 19.69 inches when using the 12-inch downrod. Ideal for rooms at least 18x18 feet with ceilings 8 feet or higher.
Specifications
- Primary Finish: Brushed Nickel
- Blade Material: Buttonwood
- Blade Finish: Dark Walnut
- Collection: Spitfire
- Blade Sweep: 96"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 8515
- CFM High: 12413
- Avg Energy Use: 24W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? No, this fan does not include a light kit. It is compatible with an optional LED light kit (sold separately).
Is it dimmable, and what dimmer should I use? If you add the optional light kit, it is dimmable via the included remote or the fanSync app.
Can I install this in a bathroom or outdoors? It is damp-rated, so it can be used in bathrooms and covered outdoor areas, but not where directly exposed to rain or water.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
Can I use this on a sloped ceiling? Yes, it is designed for ceilings up to 20 degrees slope.
