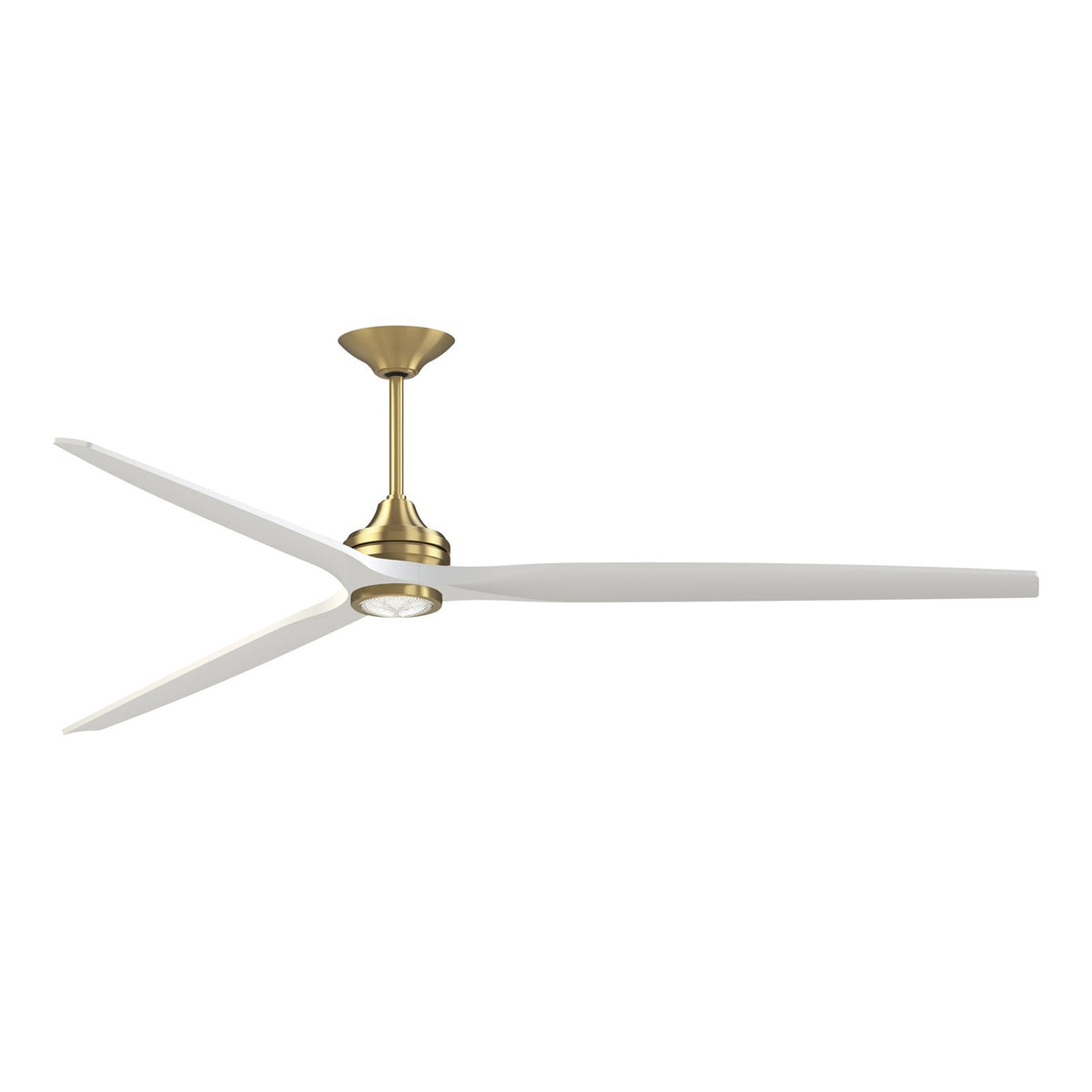

A 96-inch downrod smart ceiling fan with an integrated LED light kit for large covered outdoor and indoor spaces, finished in brushed satin brass with matte white blades.
The Spitfire DC Custom brings together a brushed satin brass motor housing, three matte white blades, and an integrated 18-watt LED light kit with CCT Select technology. The 6-speed DC motor delivers up to 12,413 CFM of quiet airflow, while the included TR360 remote and Wi-Fi fanSync app provide full control over speed, light dimming, and color temperature. Damp rated, it is ideal for covered patios, porches, sunrooms, and humid indoor spaces.
Best for
- Covered patios and porches up to 20x20 ft, mounted with the included 6-inch or 12-inch downrod
- Sunrooms and three-season rooms where humidity and moisture are a concern
- Large living rooms and great rooms with high ceilings, used as a primary air circulator and light source
- Bedrooms and home offices needing quiet, energy-efficient airflow with smart control
- Rooms with standard 8-9 ft ceilings, using the 6-inch downrod for proper clearance
Not ideal for
- Areas directly exposed to rain or water - this fan is damp rated, not wet rated
- Small rooms under 12x12 ft where a 96-inch sweep would overwhelm the space
- Ceilings with a slope greater than 20 degrees without an angled mount adapter
How bright is it?
The integrated 18-watt LED light kit delivers 1600 lumens - roughly equivalent to a 100W incandescent bulb - providing ample illumination for a large room. It is dimmable via the remote or app.
Light color and feel
With CCT Select technology, you can choose from five color temperatures: 2700K warm white, 3000K soft white, 3500K neutral white, 4000K cool white, or 5000K daylight. With a CRI of 90, colors appear vivid and accurate. The light is dimmable via the remote or app.
Sizing and fit
This downrod fan measures 96 inches in diameter and hangs 19.42 inches from the ceiling with the included 12-inch downrod. It includes both 6-inch and 12-inch downrods for flexible installation. Optional downrods up to 72 inches are available to achieve the recommended 7-9 ft hanging height.
Specifications
- Primary Finish: Brushed Satin Brass
- Blade Material: Buttonwood
- Blade Finish: Matte White
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 96"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 8515
- CFM High: 12413
- Avg Energy Use: 24W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED light kit is included and features CCT Select technology.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote or the fanSync app. No wall dimmer is required.
Can I install this in a bathroom or outdoors? Yes, this fan is damp rated for covered outdoor areas and humid indoor spaces like bathrooms and laundry rooms, but it should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser, covering the motor. Contact Fanimation Tech Support at 1-888-567-2055.
How do I control the fan and light? The included TR360 handheld remote controls 6 speeds, reversing, light dimming, and CCT selection. The fan also features Wi-Fi fanSync connectivity for control via smart device or voice assistant.
