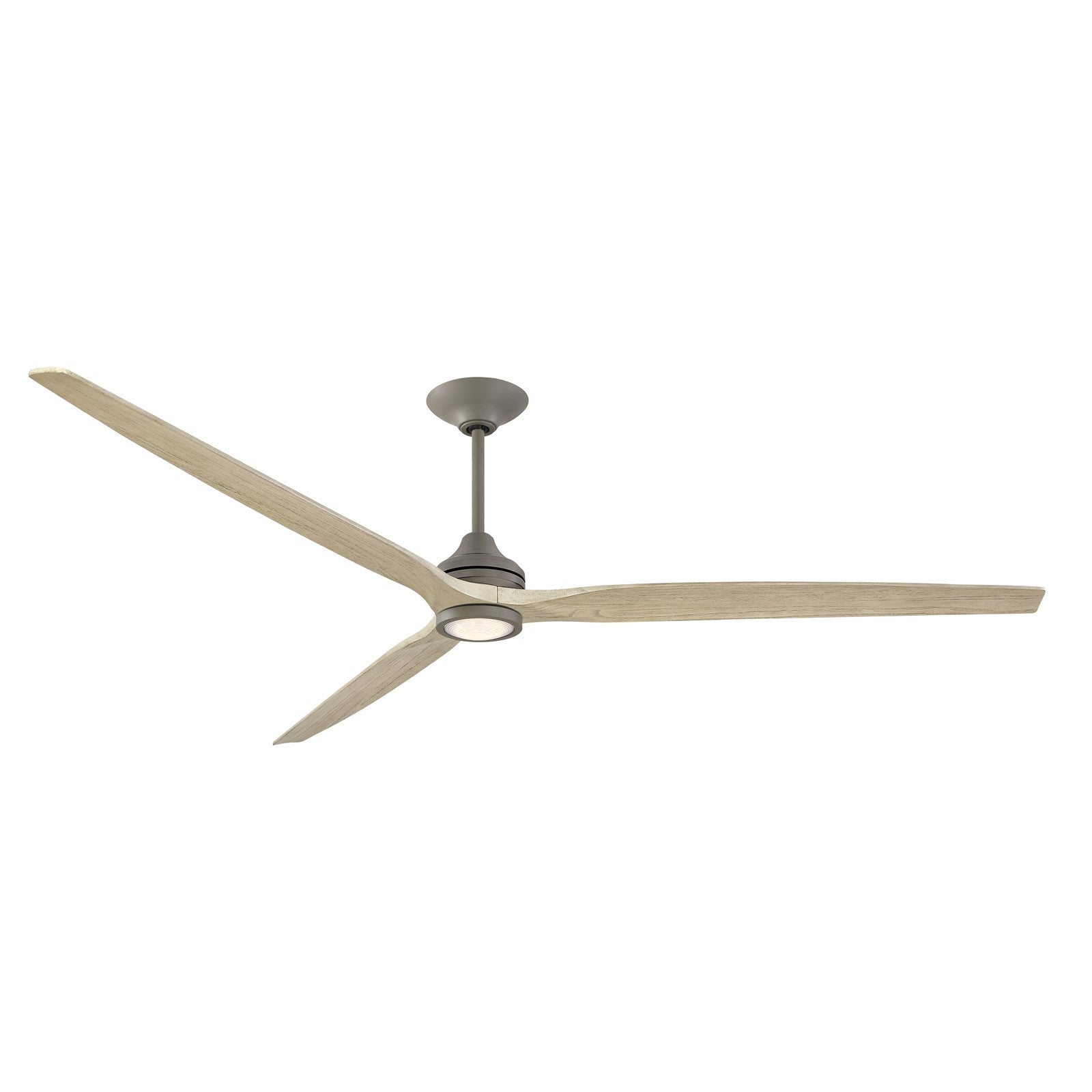

A 96-inch downrod smart ceiling fan with an integrated LED light kit for large covered outdoor and indoor spaces, finished in antique graphite with light oak blades.
The Spitfire DC Custom with light kit combines a powerful 6-speed DC motor with an integrated 18-watt LED module featuring CCT Select technology, so you can shift from warm 2700K to bright 5000K daylight. The antique graphite motor housing and light oak buttonwood blades create a sleek, modern look, while the included TR360 remote and Wi-Fi fanSync app put full control at your fingertips. Damp rated for covered patios, porches, and sunrooms, this fan is built to handle humid environments without direct rain exposure.
Best for
- Covered patios and porches 20x20 ft or larger, where a 96-inch sweep provides powerful airflow
- Great rooms and open-plan living areas with ceilings 10 ft or higher
- Sunrooms and three-season rooms exposed to humidity
- Rooms with sloped ceilings up to 20 degrees, using the included downrods
- Smart-home setups with voice assistant or app control
Not ideal for
- Small rooms under 12x12 ft - the 96-inch blade sweep will overpower the space
- Outdoor areas with direct rain exposure - this fan is damp rated, not wet rated
- Rooms with ceilings under 8 ft if you prefer a flush mount
How bright is it?
The integrated 18-watt LED light kit delivers 1600 lumens - about as bright as a 100W incandescent bulb, suitable for ambient lighting in a large room. It is dimmable via the remote or app.
Light color and feel
With CCT Select technology, you can choose from five color temperatures - 2700K warm white, 3000K soft white, 3500K neutral white, 4000K cool white, and 5000K daylight - to match the mood of your space. The kit features a CRI of 90 for accurate color rendering, and the light is fully dimmable via the remote or app.
Sizing and fit

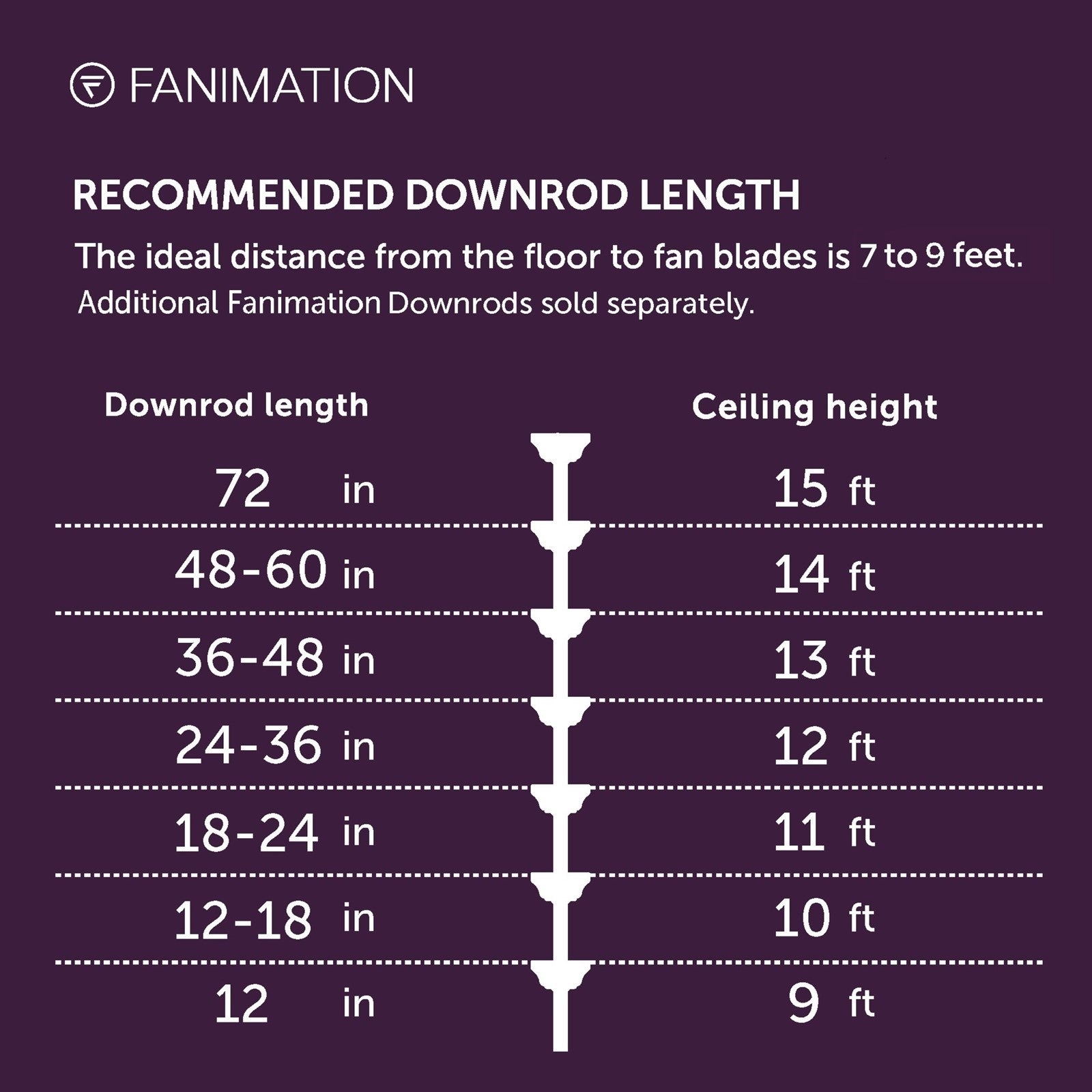

This downrod fan measures 96 inches wide by 96 inches deep and hangs 19.42 inches from the ceiling with the included 6-inch downrod. It is designed for flat or sloped ceilings up to 20 degrees. Optional downrods up to 72 inches are available to achieve the recommended 7-9 ft hanging height.
Specifications
- Primary Finish: Antique Graphite
- Blade Material: Buttonwood
- Blade Finish: Light Oak
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 96"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 8515
- CFM High: 12413
- Avg Energy Use: 24W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the light kit included? Yes, this model includes the integrated 18-watt LED light kit with CCT Select technology, along with both fresnel and frosted shades.
Is it dimmable, and what dimmer should I use? The fan speed and light are controlled via the included TR360 remote or the fanSync app. The light is dimmable through the remote or app; no wall dimmer is required.
Can I install this in a bathroom or outdoors? This fan is damp rated for indoor and covered outdoor spaces, including bathrooms, covered patios, porches, and sunrooms. It should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser, covering the motor. Contact Fanimation Tech Support at 1-888-567-2055 for assistance.
Does this fan work with sloped ceilings? Yes, this downrod model is designed for flat or sloped ceilings up to 20 degrees. It includes both 6-inch and 12-inch downrods for flexible installation.
