A 96-inch downrod smart ceiling fan for large covered outdoor and indoor spaces, finished in antique graphite with natural buttonwood blades.

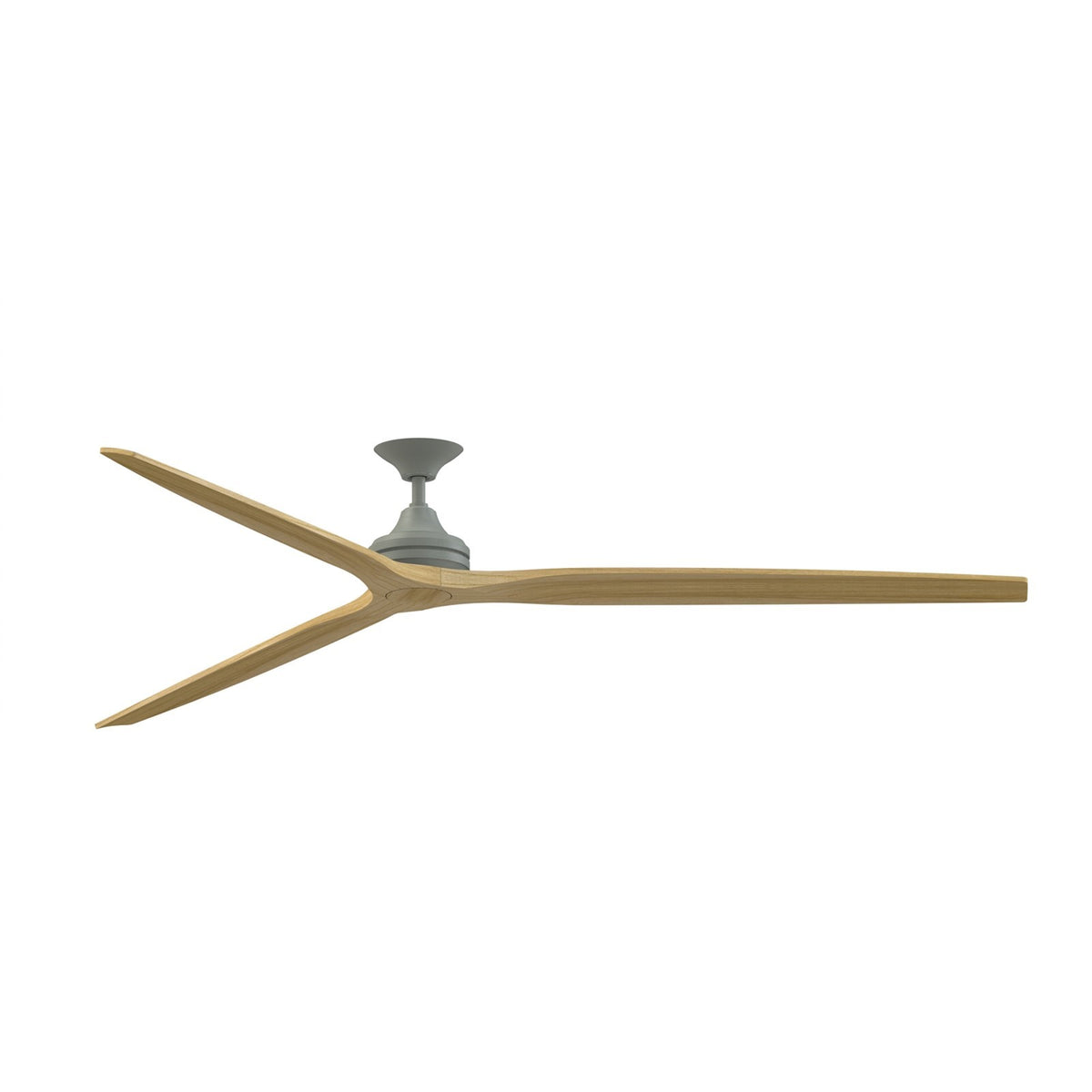

The Spitfire DC Custom is a statement-scale ceiling fan that pairs a streamlined antique graphite motor housing with three natural buttonwood blades. Its 6-speed DC motor moves up to 12,413 CFM of air quietly and efficiently, while the included TR360 handheld remote and Wi-Fi fanSync app give you full control from anywhere. Damp rated for covered patios, porches, and sunrooms, this fan is built to handle humid environments without direct rain exposure.
Best for
- Covered patios and porches 20x20 ft or larger, where a 96-inch sweep provides powerful airflow
- Great rooms and open-plan living areas with ceilings 10 ft or higher
- Sunrooms and three-season rooms exposed to humidity
- Rooms with sloped ceilings up to 20 degrees, using the included downrods
- Smart-home setups with voice assistant or app control
Not ideal for
- Small rooms under 12x12 ft - the 96-inch blade sweep will overpower the space
- Outdoor areas with direct rain exposure - this fan is damp rated, not wet rated
- Rooms with ceilings under 8 ft if you prefer a flush mount
How bright is it?
This fan is compatible with an optional integrated 18-watt LED light kit (sold separately) that delivers 1600 lumens - about as bright as a 100W incandescent bulb, suitable for ambient lighting in a large room. The light kit is not included with this model.
Light color and feel
When paired with the optional light kit, you can select from five color temperatures - 2700K warm white, 3000K soft white, 3500K neutral white, 4000K cool white, and 5000K daylight - to match the mood of your space. The kit features a CRI of 90 for accurate color rendering, and the light is fully dimmable via the remote or app.
Sizing and fit
This downrod fan measures 96 inches wide by 96 inches deep and hangs 19.69 inches from the ceiling with the included 6-inch downrod. It is designed for flat or sloped ceilings up to 20 degrees. Optional downrods up to 72 inches are available to achieve the recommended 7-9 ft hanging height.
Specifications
- Primary Finish: Antique Graphite
- Blade Material: Buttonwood
- Blade Finish: Natural
- Collection: Spitfire
- Blade Sweep: 96"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 8515
- CFM High: 12413
- Avg Energy Use: 24W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the light kit included? No, the light kit is sold separately. This model is compatible with the integrated 18-watt LED light kit with CCT Select technology.
Is it dimmable, and what dimmer should I use? The fan speed and optional light are controlled via the included TR360 remote or the fanSync app. The light is dimmable through the remote or app; no wall dimmer is required.
Can I install this in a bathroom or outdoors? This fan is damp rated for indoor and covered outdoor spaces, including bathrooms, covered patios, porches, and sunrooms. It should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser, covering the motor. Contact Fanimation Tech Support at 1-888-567-2055 for assistance.
Does this fan work with sloped ceilings? Yes, this downrod model is designed for flat or sloped ceilings up to 20 degrees. It includes both 6-inch and 12-inch downrods for flexible installation.
