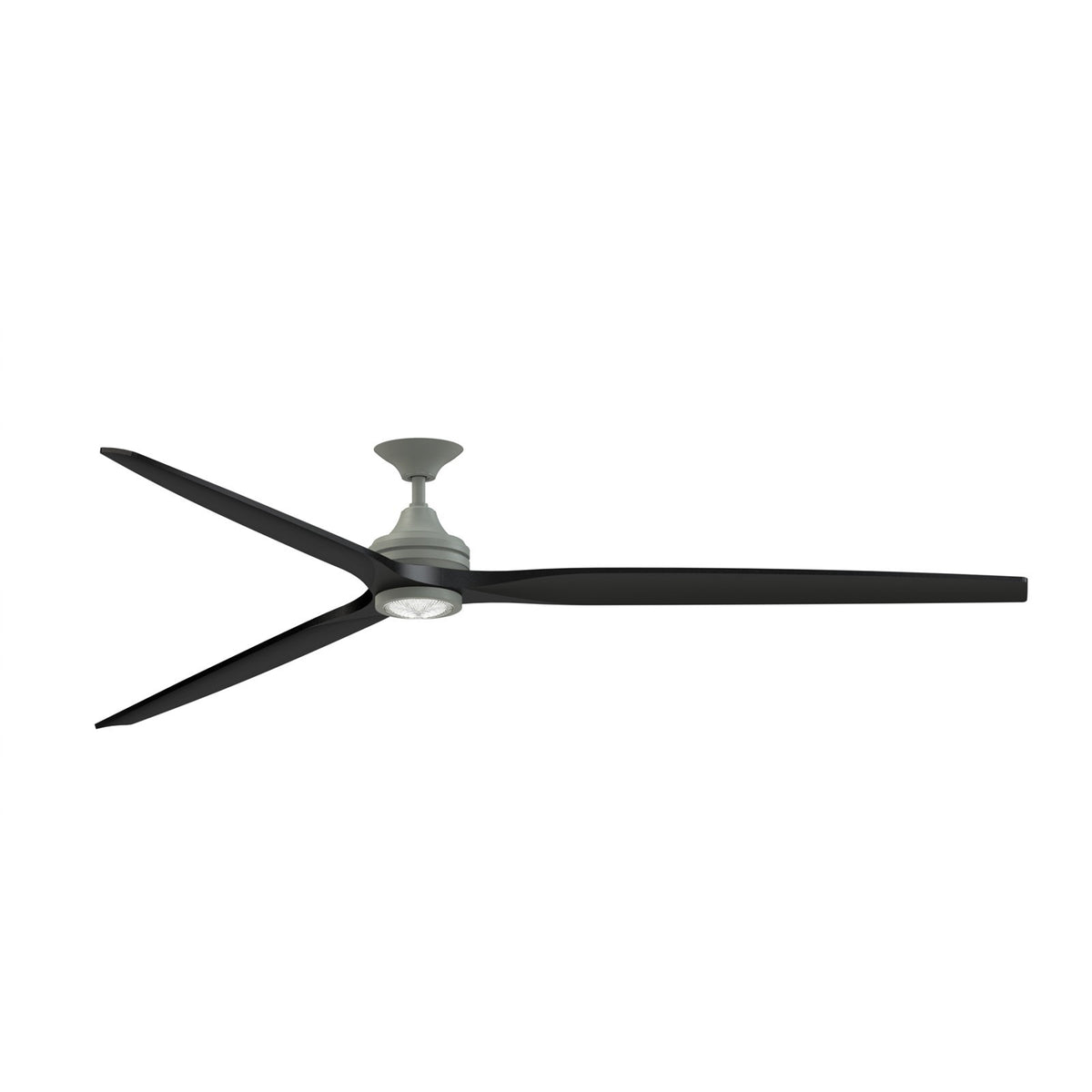

A 96-inch smart ceiling fan with an integrated LED light kit for covered patios, porches, and large indoor rooms, finished in antique graphite with black blades.
The Spitfire DC Custom combines powerful airflow with customizable lighting. Its 6-speed DC motor moves up to 12,413 CFM quietly, while the integrated 18-watt LED light kit offers five color temperatures (2700K to 5000K) via CCT Select technology. The included TR360 remote and Wi-Fi fanSync app provide full control over fan speed, light dimming, and color temperature.
Best for
- Covered patios and porches where damp-rated durability matters
- Great rooms and open-plan living areas up to 400 sq ft
- Sunrooms and three-season rooms with high ceilings
- Bedrooms and home offices needing quiet, energy-efficient air movement with integrated lighting
- Rooms with standard 8-9 ft ceilings using the included downrods
Not ideal for
- Outdoor areas directly exposed to rain or water
- Small rooms under 100 sq ft where a 96-inch sweep is overpowering
- Low ceilings under 8 ft if you need the fan to hang at the recommended height
How bright is it?
The integrated LED light kit delivers 1600 lumens - about as bright as a 100W incandescent bulb - ideal for ambient lighting in large spaces.
Light color and feel
Choose from five color temperatures (2700K, 3000K, 3500K, 4000K, 5000K) to shift from warm, cozy light to bright daylight. The 90 CRI ensures accurate color rendering, and the light is dimmable via the remote.
Sizing and fit
With a 96-inch blade sweep and included 6-inch and 12-inch downrods, this fan hangs 19.42 inches from the ceiling (with light kit). It works well in rooms with 8-9 ft ceilings and can be adapted with optional downrods up to 72 inches.
Specifications
- Primary Finish: Antique Graphite
- Blade Material: Buttonwood
- Blade Finish: Black
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 96"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 8515
- CFM High: 12413
- Avg Energy Use: 24W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED light kit is included and features a non-replaceable LED module.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote. No wall dimmer is required.
Can I install this in a bathroom or outdoors? Yes, it is damp-rated for covered outdoor areas and bathrooms, but it should not be directly exposed to rain or water.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
Does this fan work with sloped ceilings? Yes, it is rated for ceilings up to a 20° slope.
