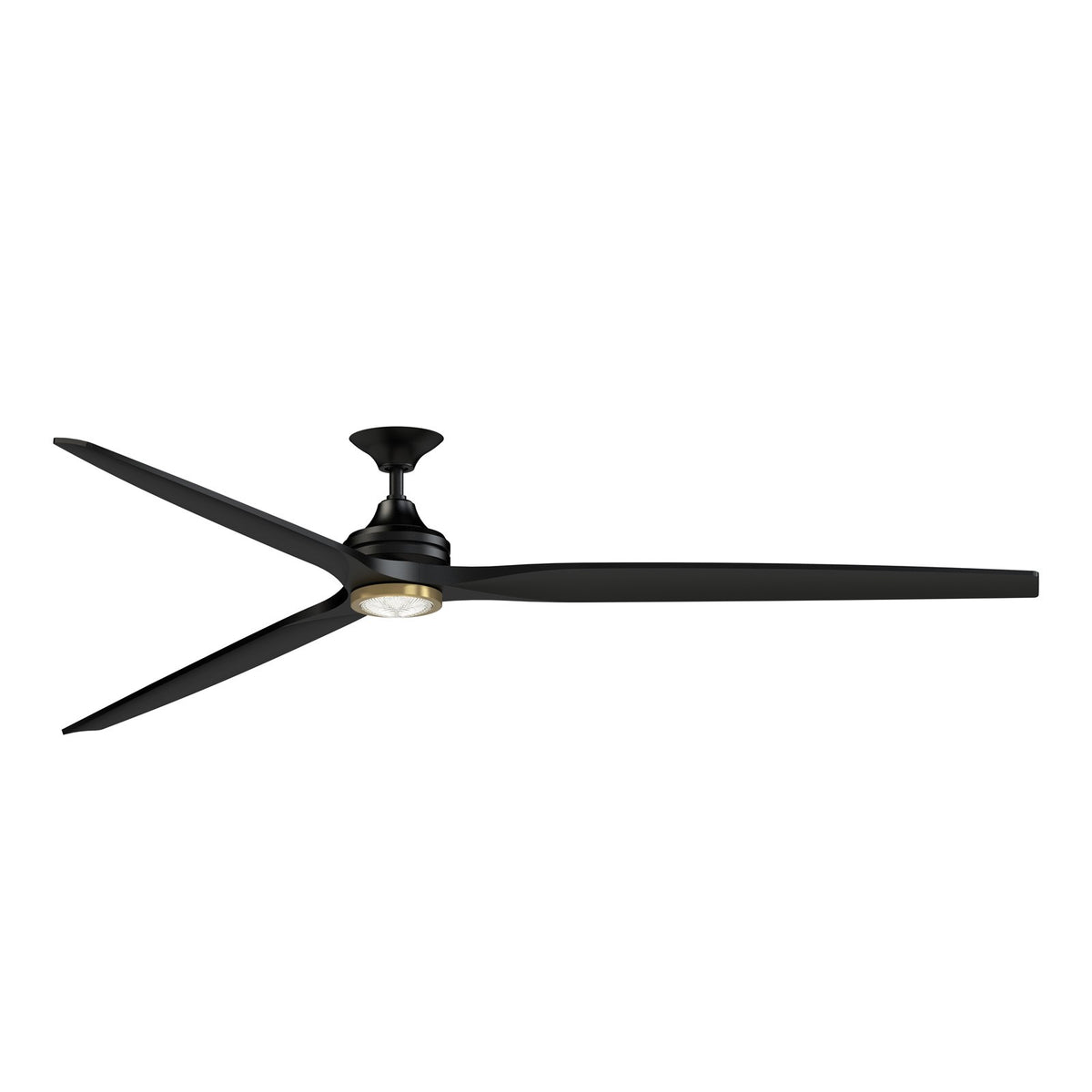

A 96-inch smart ceiling fan with a brushed satin brass LED light kit for large covered outdoor spaces and great rooms, finished in black with black blades.
The Spitfire DC Custom combines powerful airflow with customizable lighting. This version includes an integrated 18-watt LED light kit with CCT Select technology, offering five color temperatures from warm white to daylight. The black finish and black buttonwood blades are accented by a brushed satin brass light kit and cap, adding a touch of elegance. The included TR360 remote and Wi-Fi fanSync technology provide convenient control.
Best for
- Covered patios and porches, providing powerful airflow and adjustable lighting for evening entertaining
- Great rooms and open-plan living spaces with ceilings of 10 feet or higher
- Sunrooms and three-season rooms where humidity and moisture are a concern
- Bathrooms and laundry rooms with high ceilings, where damp-rated fixtures are required
- Smart home setups, with Wi-Fi control via the fanSync app and voice assistants
Not ideal for
- Spaces with ceilings under 8 feet, as the 96-inch blade sweep requires ample clearance
- Areas directly exposed to rain or water, as this fan is damp rated, not wet rated
- Rooms where you prefer a flush mount, as this version uses downrods (6 and 12 inches included)
How bright is it?
The integrated LED light kit provides 1600 lumens—comparable to a 100-watt incandescent bulb—making it suitable for ambient lighting in large rooms.
Light color and feel
With CCT Select technology, you can choose from five color temperatures—2700K (warm white) to 5000K (daylight)—to suit your mood and activity. The high CRI of 90 ensures colors appear vibrant and true.
Sizing and fit
With a 96-inch blade sweep and a height of 19.42 inches (with included 6-inch downrod), this fan is ideal for rooms with standard or higher ceilings. The overall dimensions are 96 inches wide by 96 inches deep by 19.42 inches high, and it weighs 22.25 pounds.
Specifications
- Primary Finish: Black/Brushed Satin Brass
- Blade Material: Buttonwood
- Blade Finish: Black
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 96"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 8515
- CFM High: 12413
- Avg Energy Use: 24W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 96"(L) x 96"(W) x 19.42"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 8.76"(Dia) x 2.52"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Ceiling to Bottom (With Light Kit): 15.35, 21.35"
- Item Weight: 22.25 lbs.
Frequently asked
Is the bulb included? Yes, the integrated LED light kit is included and the bulbs are built-in LED modules.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote. The fan speed is also controlled by the remote.
Can I install this in a bathroom or outdoors? Yes, this fan is damp rated for indoor and covered outdoor spaces, including bathrooms, laundry rooms, and covered patios. It should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
Does this fan work with smart home systems? Yes, it features Wi-Fi enabled fanSync technology, allowing control via the fanSync app, compatible smart devices, and voice assistants.
