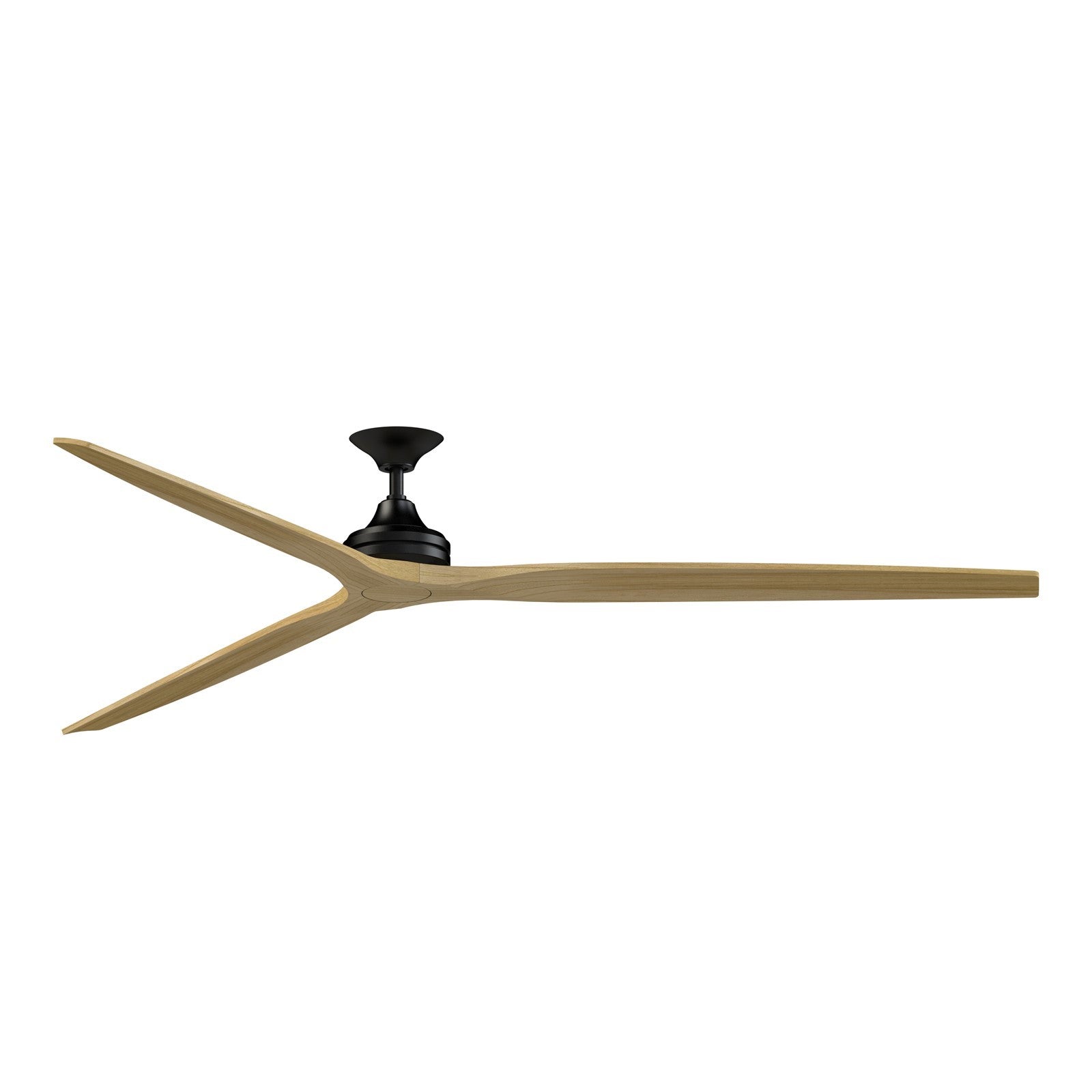

A 96-inch downrod smart ceiling fan from Fanimation's Spitfire collection, finished in black with natural buttonwood blades, for large covered outdoor and indoor spaces.
The Spitfire DC Custom is a statement piece for expansive rooms and covered patios. Its 96-inch blade sweep and three natural buttonwood blades deliver powerful airflow while the black motor keeps a sleek, modern profile. The included TR360 remote and Wi-Fi fanSync app give you full control over six speeds, seasonal reversing, and optional lighting. Damp-rated for covered outdoor use, it's built to handle humidity without direct rain exposure.
Best for
- Covered patios and porches 20x20 ft or larger, where its 96-inch sweep moves air across the whole seating area
- Sunrooms and three-season rooms with high ceilings, using the included 6-inch or 12-inch downrods
- Great rooms and open-plan living areas with ceilings 10 ft or higher
- Bathrooms and laundry rooms with high ceilings, where damp-rated construction resists humidity
Not ideal for
- Small rooms under 12x12 ft - the 96-inch blade sweep will overpower the space
- Outdoor areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
- Rooms with ceilings under 8 ft, as the downrod adds height
How bright is it?
This fan does not include a light kit. It is compatible with an optional integrated 18-watt LED light kit (sold separately) that provides 1600 lumens - about as bright as a 100W incandescent bulb - suitable for ambient lighting in large rooms.
Light color and feel
With the optional light kit, you can select from five color temperatures: 2700K (warm white), 3000K (soft white), 3500K (neutral), 4000K (cool white), and 5000K (daylight). This flexibility lets you match the light to your activity and mood. The kit also features a CRI of 90, rendering colors accurately.
Sizing and fit
This downrod fan measures 96 inches in diameter and 19.69 inches from ceiling to bottom with the included 12-inch downrod. It's designed for flat or slightly sloped ceilings (up to 20°). Optional downrods up to 72 inches are available for higher ceilings.
Specifications
- Primary Finish: Black
- Blade Material: Buttonwood
- Blade Finish: Natural
- Collection: Spitfire
- Blade Sweep: 96"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 8515
- CFM High: 12413
- Avg Energy Use: 24W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 96"(L) x 96"(W) x 19.69"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 8.76"(Dia) x 2.52"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Item Weight: 20.95 lbs.
Frequently asked
Is the bulb included? This fan does not include a light kit. The optional LED light kit is sold separately.
Is it dimmable, and what dimmer should I use? The optional light kit is dimmable via the included TR360 remote. No wall dimmer is required.
Can I install this in a bathroom or outdoors? Yes, it is damp-rated for indoor and covered outdoor spaces, including bathrooms and covered patios. It should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
How do I control the fan? The included TR360 handheld remote controls fan speed, reversing, and optional light. Wi-Fi fanSync allows control via smart device or voice assistant.
