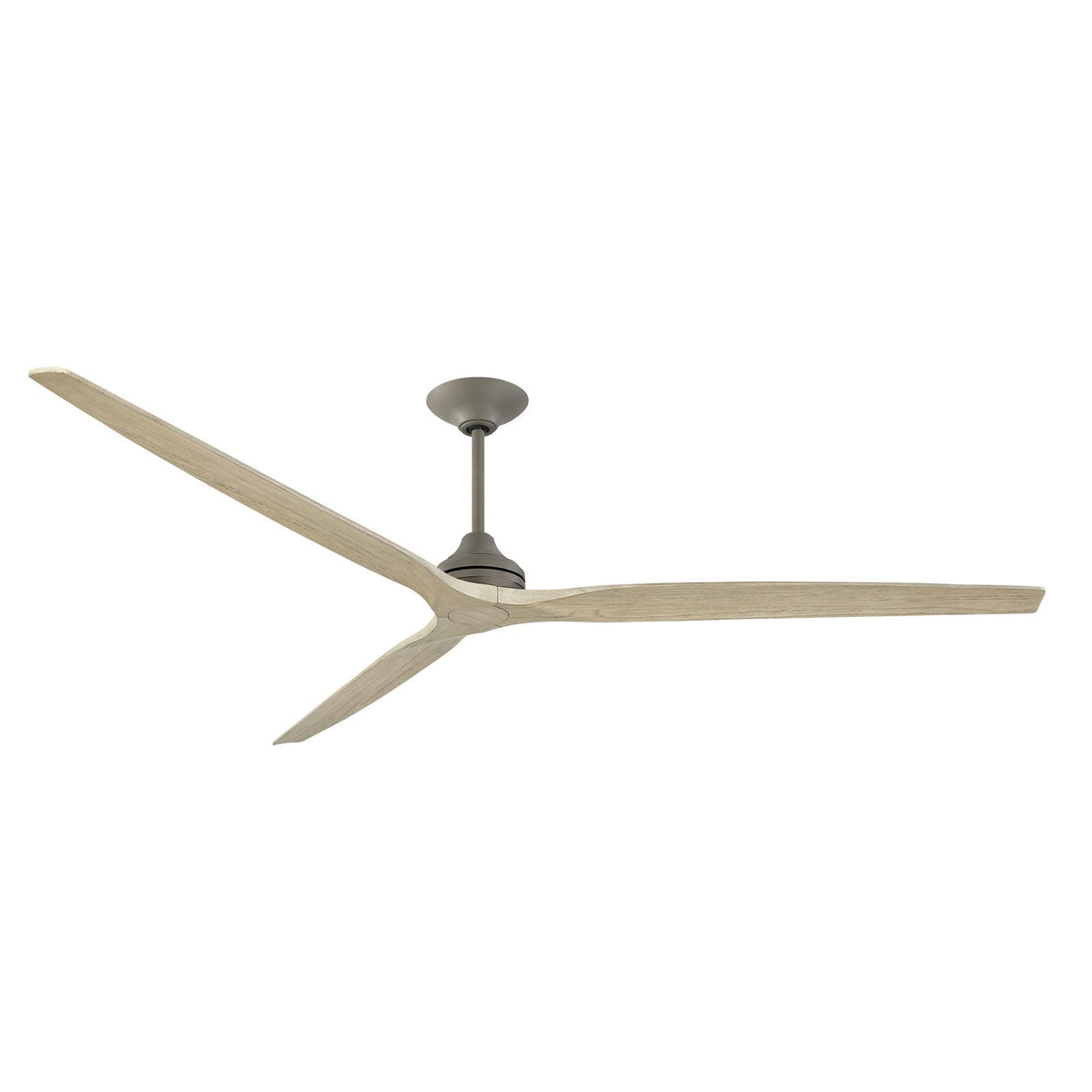

A 96-inch downrod smart ceiling fan with powerful airflow, designed for large covered outdoor and indoor spaces.
The Spitfire DC Custom combines a sleek Antique Graphite motor with three Light Oak blades, moving up to 12,413 CFM quietly and efficiently. This version is compatible with an optional LED light kit (sold separately) and includes Wi-Fi fanSync, voice control, and a handheld remote for effortless operation. The included 6-inch and 12-inch downrods allow flexible installation on flat or sloped ceilings.
Best for
- Covered patios and porches where damp-rated fixtures are required
- Sunrooms and large living areas with ceilings at least 8 feet high
- Open-concept great rooms needing high-volume air movement
- Bedrooms and home offices where quiet operation matters
- Spaces with sloped ceilings up to 20 degrees
Not ideal for
- Areas directly exposed to rain or water—this fan is damp-rated, not wet-rated
- Small rooms under 12x12 ft where a 96-inch sweep is overwhelming
- Low ceilings under 8 feet if you need extra clearance—use the flush mount version instead
How bright is it?
This fan does not include a light kit, so brightness depends on the optional 18W LED module you add. That module produces 1600 lumens—comparable to a 100-watt incandescent bulb—providing ample ambient light.
Light color and feel
If you add the optional light kit, you can choose from five color temperatures: 2700K (warm white), 3000K (soft white), 3500K (neutral), 4000K (cool white), and 5000K (daylight). With a CRI of 90, colors appear vivid and accurate. The light is dimmable via the included remote.
Sizing and fit
This fan spans 96 inches in diameter and hangs 19.69 inches from the ceiling with the included 12-inch downrod. Ideal for rooms at least 15x15 feet, it suits ceilings 8 feet and higher. The included downrods support flat or sloped ceilings up to 20 degrees.
Specifications
- Primary Finish: Antique Graphite
- Blade Material: Buttonwood
- Blade Finish: Light Oak
- Collection: Spitfire
- Blade Sweep: 96"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 8515
- CFM High: 12413
- Avg Energy Use: 24W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
What is it made of? The motor housing is finished in Antique Graphite, and the blades are made of Buttonwood with a Light Oak finish.
Where in the home does this work best? This fan is ideal for covered patios, sunrooms, large living areas, and bedrooms where its damp rating and quiet operation are beneficial.
How is it mounted or assembled? It mounts via a downrod (6-inch and 12-inch included) to flat or sloped ceilings up to 20 degrees. Assembly is required.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
Can I add a light kit later? Yes, this fan is compatible with an optional integrated 18W LED light kit, sold separately.
