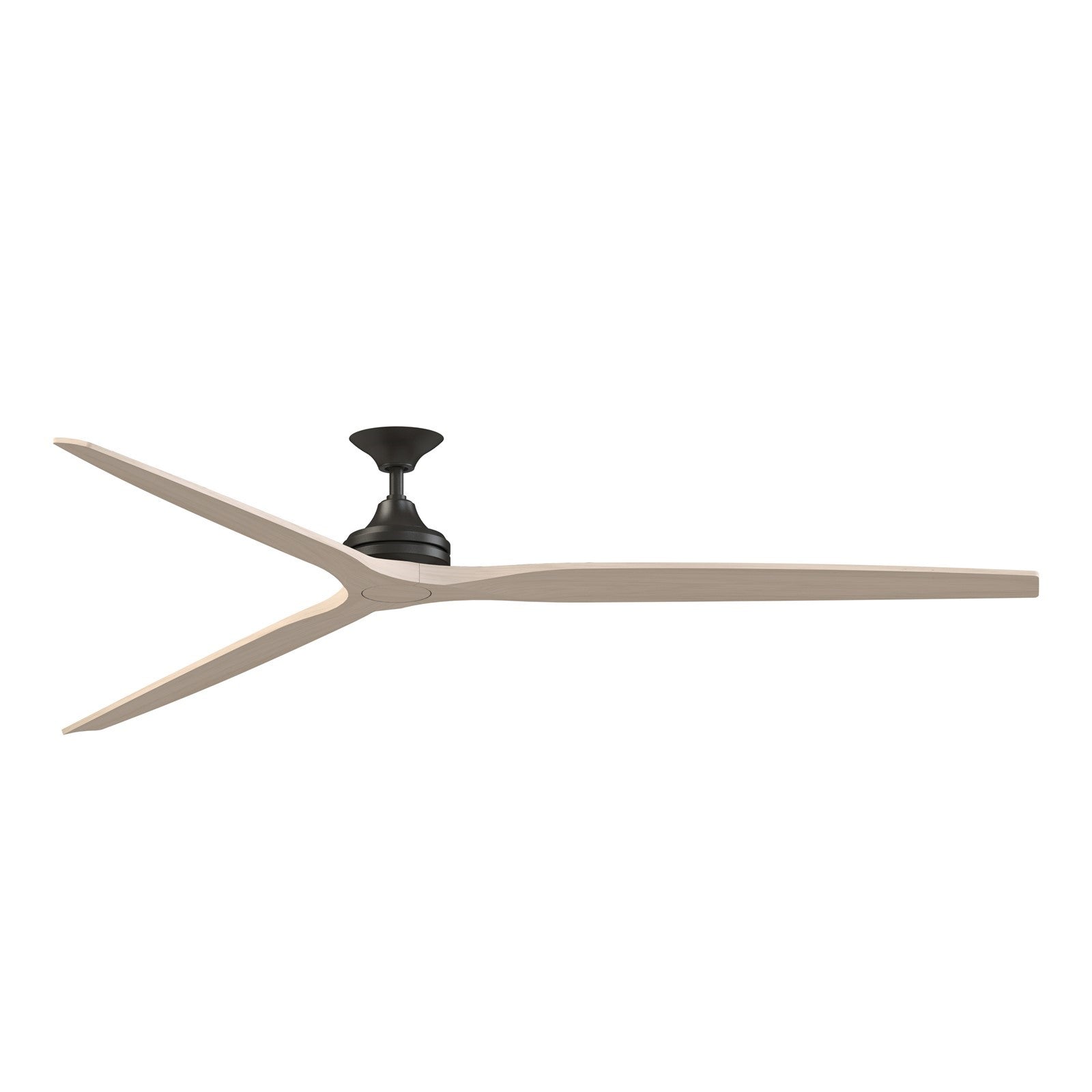

A 96-inch indoor/outdoor smart ceiling fan from Fanimation's Spitfire collection, finished in Dark Bronze with White Washed blades, designed for large covered spaces and smart-home control.
The Spitfire DC Custom pairs a sleek Dark Bronze motor with three White Washed blades, delivering powerful airflow up to 12,413 CFM from its quiet 6-speed DC motor. This version is compatible with an integrated 18-watt LED light kit (sold separately) featuring CCT Select technology for five color temperatures. With Wi-Fi enabled fanSync, you can control the fan and light from your smart device or voice assistant, and the included TR360 remote puts all functions at your fingertips.
Best for
- Covered patios and porches, where damp-rated construction withstands humidity without direct rain exposure
- Great rooms and open-plan living areas with ceilings 9 ft or higher, using the included 6 or 12-inch downrods
- Sunrooms and three-season rooms that need year-round airflow and smart control
- Large bedrooms or home offices where quiet, energy-efficient cooling is a priority
- Spaces with sloped ceilings up to 20 degrees, using optional longer downrods
Not ideal for
- Areas with direct rain or water exposure - this fan is damp-rated, not wet-rated
- Rooms with ceilings under 8 ft, as the fan requires a minimum hanging height for safe clearance
- Small spaces under 12 x 12 ft, where the 96-inch blade sweep would overpower the room
How bright is it?
This fan is compatible with an optional 18-watt LED light kit that delivers 1600 lumens - roughly equivalent to a 100W incandescent bulb, suitable for ambient lighting in a large room. The light kit is sold separately.
Light color and feel
With the optional CCT Select light kit, you can choose from five color temperatures: 2700K (warm white), 3000K (soft white), 3500K (neutral), 4000K (cool white), and 5000K (daylight). This flexibility lets you match the lighting to your activity and mood, from cozy evenings to bright task lighting.
Sizing and fit
The fan measures 96 inches in diameter and 19.69 inches in height (without light kit). It includes 6-inch and 12-inch downrods, with optional downrods up to 72 inches available for higher ceilings. The recommended hanging height is 7 to 9 feet from the floor to the blades for optimal airflow.
Specifications
- Primary Finish: Dark Bronze
- Blade Material: Buttonwood
- Blade Finish: White Washed
- Collection: Spitfire
- Blade Sweep: 96"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 8515
- CFM High: 12413
- Avg Energy Use: 24W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 96"(L) x 96"(W) x 19.69"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 8.76"(Dia) x 2.52"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Item Weight: 20.95 lbs.
Frequently asked
Is the bulb included? No, the light kit is sold separately. This fan is compatible with Fanimation's integrated 18-watt LED light kit.
Is it dimmable, and what dimmer should I use? The optional light kit is dimmable via the included TR360 remote, which offers infinite light dimming. No separate wall dimmer is required.
Can I install this in a bathroom or outdoors? This fan is damp-rated, making it suitable for covered outdoor areas like patios and porches, as well as bathrooms and laundry rooms. It should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser, covering the motor for long-term performance.
How does the smart control work? The fan features Wi-Fi enabled fanSync technology, allowing control via the fanSync app, compatible smart devices, or voice assistants. The included TR360 remote also provides full control.
