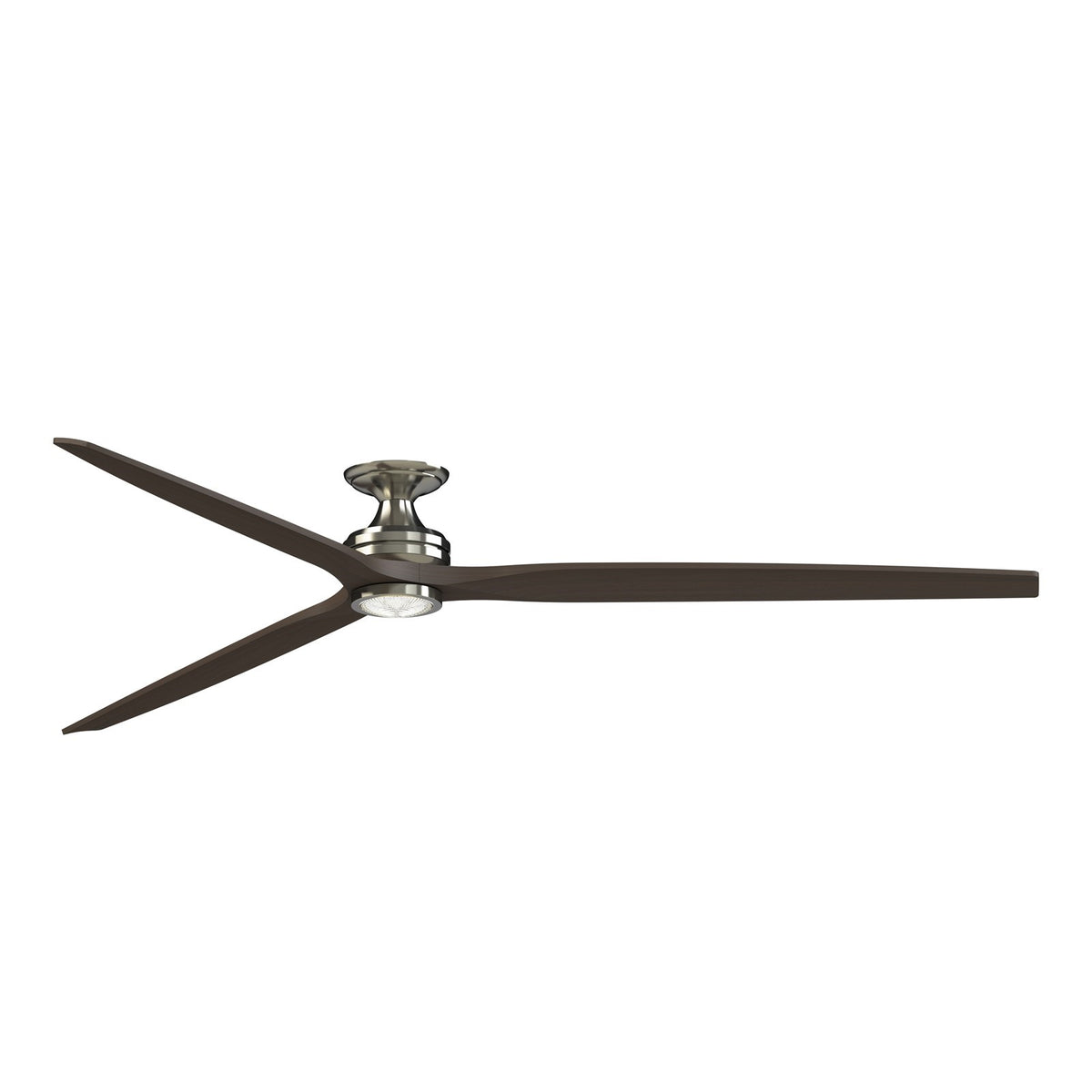

A 96-inch flush-mount smart ceiling fan from Fanimation's Spitfire DC Custom collection, finished in Brushed Nickel with Dark Walnut blades and an integrated LED light kit, for large indoor and covered outdoor spaces.
The Spitfire DC Custom pairs a sleek, low-profile motor housing with three sculpted Buttonwood blades in a rich Dark Walnut finish. Its 6-speed DC motor moves up to 12,413 CFM of air quietly and efficiently, while the included TR360 remote and Wi-Fi fanSync app put full control in your hand. This version includes an integrated 18-watt LED light kit with CCT Select technology, letting you shift from warm to daylight. Damp rated for covered patios and porches, this fan brings modern comfort and flexible lighting to expansive rooms.
Best for
- Covered patios and porches, where damp-rated construction handles humidity without direct rain exposure
- Great rooms and open-plan living areas with ceilings 10 ft or higher, where the 96-inch sweep moves air across a wide footprint
- Sunrooms and three-season rooms that need year-round air circulation and adjustable lighting
- Low-ceiling rooms where a flush mount keeps headroom clear
- Smart-home setups, with Wi-Fi control via the fanSync app and voice assistants
Not ideal for
- Small rooms under 12 x 12 ft, where a 96-inch fan would overwhelm the space
- Outdoor areas exposed directly to rain or water, despite the damp rating
- Rooms with ceilings under 8 ft, where the fan's 11.33-inch height may feel too low
How bright is it?
The integrated 18-watt LED light kit delivers 1600 lumens - roughly equivalent to a 100W incandescent bulb - enough to illuminate a large living area or covered patio. The light is dimmable for adjustable ambiance.
Light color and feel
With CCT Select technology, you can choose from five color temperatures: 2700K (warm white), 3000K (soft white), 3500K (neutral), 4000K (cool white), and 5000K (daylight). This flexibility lets you match the light to the mood, from cozy evenings to bright task lighting. The kit also features a CRI of 90, ensuring colors appear vivid and accurate.
Sizing and fit

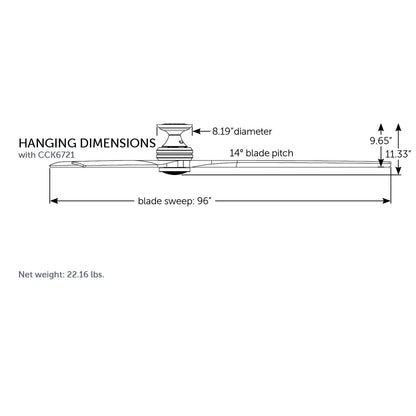

This flush-mount fan measures 96 inches in blade sweep and hangs just 11.33 inches from the ceiling, making it ideal for rooms with low ceilings. The included ceiling bracket supports flat ceilings, and the 14-inch leadwire offers installation flexibility. For optimal airflow, install in rooms at least 12 x 12 ft with ceilings 8 ft or higher.
Specifications
- Primary Finish: Brushed Nickel
- Blade Material: Buttonwood
- Blade Finish: Dark Walnut
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 96"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 8515
- CFM High: 12413
- Avg Energy Use: 24W
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED light kit is included and features CCT Select technology with five color temperatures.
Is it dimmable, and what dimmer should I use? The light is dimmable via the included TR360 remote or the fanSync app. No wall dimmer is required.
Can I install this in a bathroom or outdoors? Yes, this fan is damp rated for indoor and covered outdoor spaces like bathrooms, covered patios, and porches. It should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser, covering the motor. Contact Fanimation Tech Support at 1-888-567-2055 for assistance.
Does this fan work with smart home systems? Yes, it features Wi-Fi enabled fanSync technology, allowing control via the fanSync app, compatible smart devices, and voice assistants.
