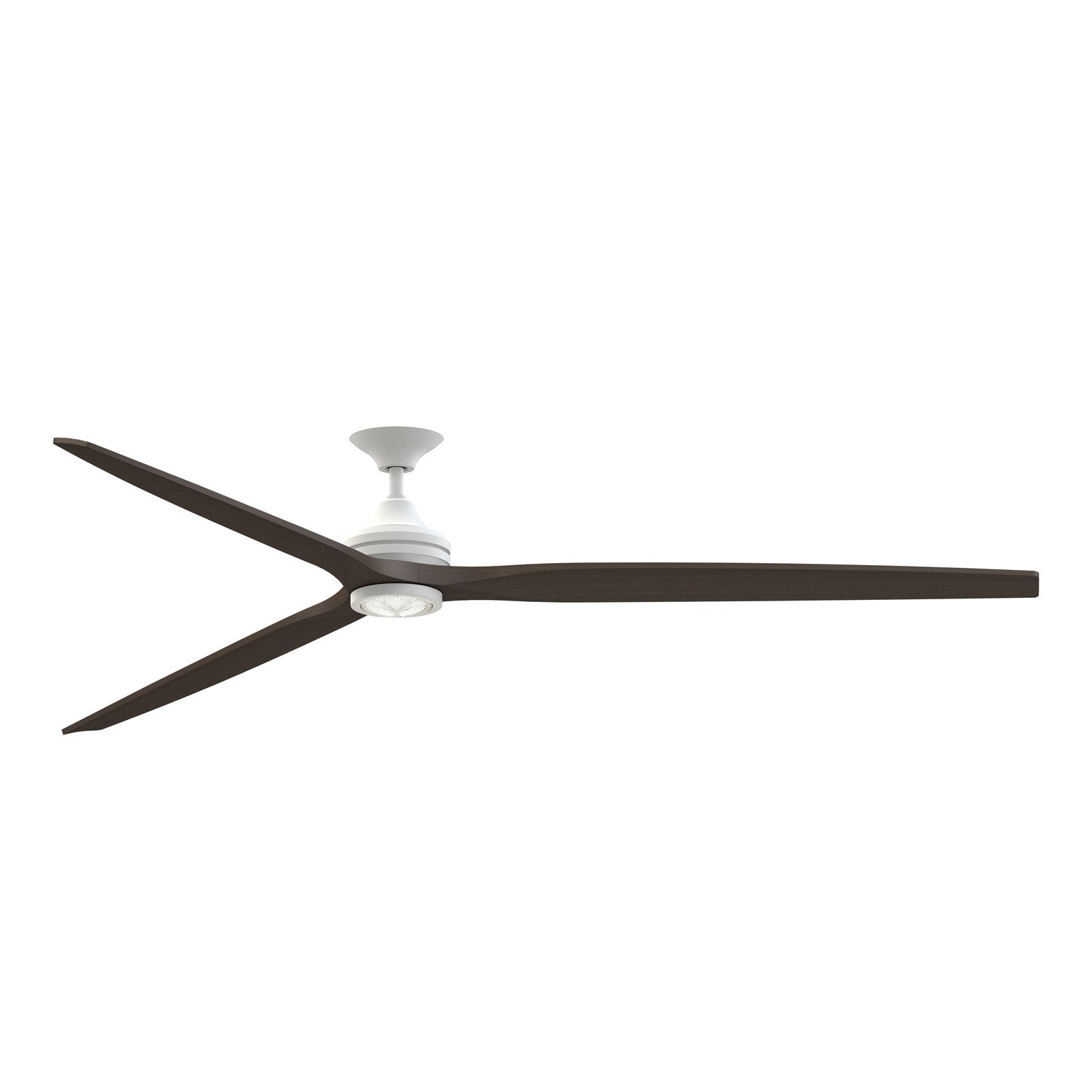

A 96-inch smart ceiling fan with an integrated LED light kit, designed for large covered outdoor and indoor spaces, finished in matte white with dark walnut blades.
The Spitfire DC Custom is a statement piece for expansive rooms, combining a sleek matte white motor with three dark walnut blades. Its DC motor delivers powerful yet quiet airflow up to 12,413 CFM, while the integrated LED light kit offers five color temperatures from warm to daylight. With Wi-Fi connectivity and a handheld remote, you get full control over comfort and ambiance.
Best for
- Covered patios and porches, where damp-rated construction handles humidity
- Great rooms and open-plan living areas with ceilings 10 ft or higher
- Sunrooms and three-season rooms needing both air movement and light
- Large bedrooms or home gyms where quiet, efficient airflow is key
- Smart home setups with voice assistants for hands-free control
Not ideal for
- Rooms with ceilings under 8 ft, as the downrod adds height
- Directly exposed to rain or water, despite the damp rating
- Small spaces under 12x12 ft, where the 96-inch sweep is overpowering
How bright is it?
1600 lumens - comparable to a 100W incandescent bulb, providing ample light for large areas. The integrated LED module is dimmable, letting you adjust from a soft glow to full brightness.
Light color and feel
Five selectable color temperatures from 2700K warm white to 5000K daylight. With a CRI of 90, colors appear vivid and natural. The fresnel and frosted shades (both included) allow you to choose between a clear or diffused light.
Sizing and fit
With a 96-inch blade sweep and 14° pitch, this fan moves substantial air. The included 6-inch and 12-inch downrods allow hanging heights from 15.35 to 21.35 inches from the ceiling. Optional downrods up to 72 inches are available for higher ceilings. The canopy fits flat or sloped ceilings up to 20°.
Specifications
- Primary Finish: Matte White
- Blade Material: Buttonwood
- Blade Finish: Dark Walnut
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 96"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 8515
- CFM High: 12413
- Avg Energy Use: 24W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED module is included.
Is it dimmable, and what dimmer should I use? Yes, it is dimmable via the included remote or the fanSync app. No special dimmer needed.
Can I install this in a bathroom or outdoors? It is damp-rated, suitable for covered outdoor areas and bathrooms with humidity, but not directly exposed to rain.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
What shade options are included? Both fresnel and frosted shades are included, allowing you to choose between a clear or diffused light.
