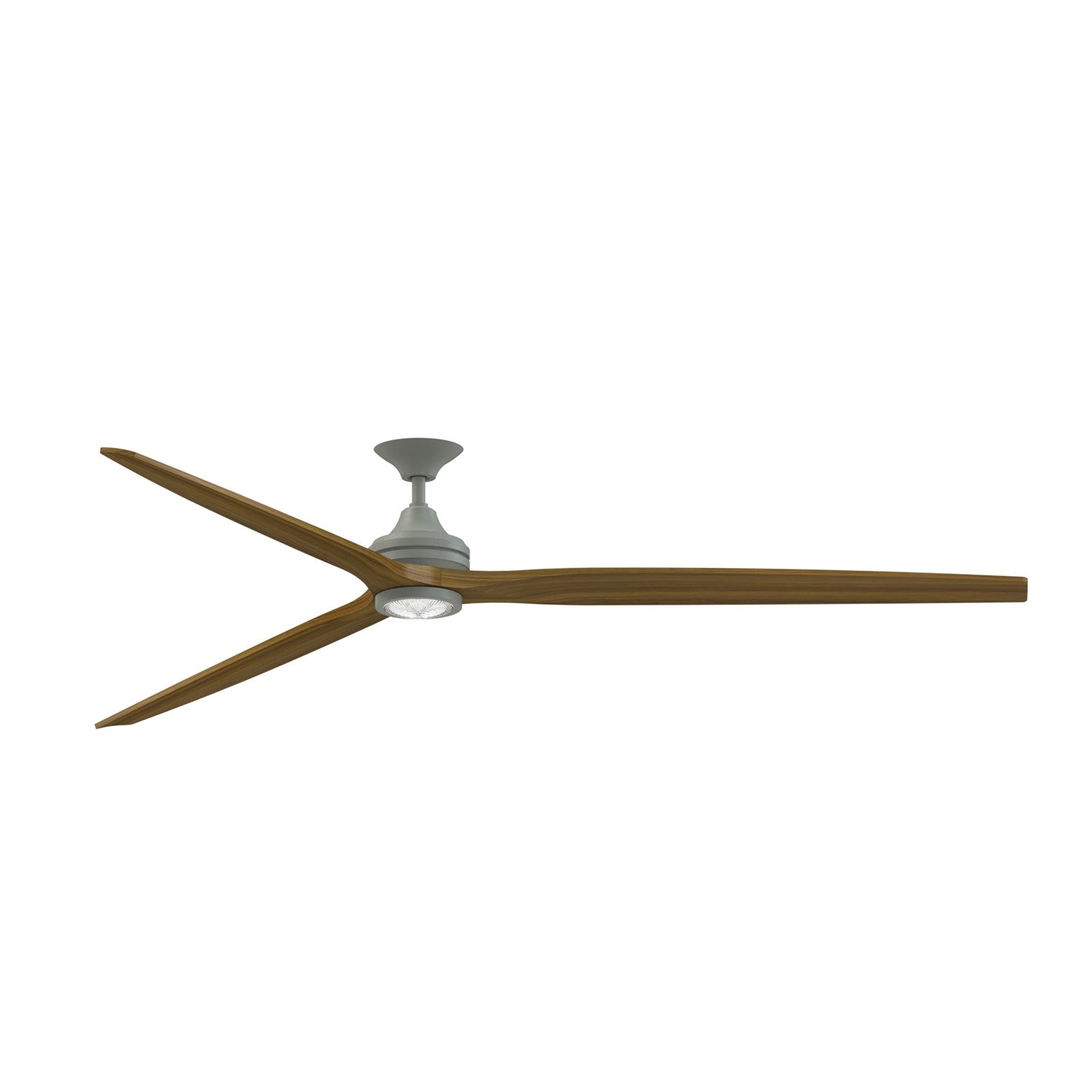

A 96-inch smart ceiling fan with an integrated LED light kit, designed for large indoor and covered outdoor spaces like patios, porches, and great rooms.
The Spitfire DC Custom pairs a sleek Antique Graphite motor with three Koa wood blades, delivering powerful yet quiet airflow up to 12,413 CFM. The integrated 18-watt LED light kit features CCT Select technology, letting you shift from warm to daylight with five color temperatures. Control everything with the included TR360 remote or your smart device via Wi-Fi fanSync.
Best for
- Covered patios and porches where damp-rated fixtures are needed
- Large living rooms and great rooms (over 300 sq ft) needing high airflow
- Sunrooms and three-season rooms with high ceilings
- Outdoor kitchens and covered entertainment areas
- Bedrooms and offices where quiet operation and smart control are valued
Not ideal for
- Directly exposed outdoor areas without a roof or cover - this fan is damp-rated, not wet-rated
- Rooms with ceilings under 8 feet unless using the flush-mount version
- Small spaces under 150 sq ft where a 96-inch sweep is overpowering
How bright is it?
The integrated LED module produces 1600 lumens - comparable to a 100W incandescent bulb. This is sufficient for ambient lighting in a large room, but not for task lighting. Use it to create a comfortable glow, not to illuminate a workspace.
Light color and feel
Choose from five color temperatures: 2700K warm white, 3000K soft white, 3500K neutral, 4000K cool white, or 5000K daylight. With a CRI of 90, colors appear vivid and natural. The light is dimmable, and the remote allows infinite dimming levels.
Sizing and fit
This fan has a 96-inch blade sweep and a 14-degree blade pitch. It includes 6-inch and 12-inch downrods, and optional downrods up to 72 inches are available. The overall height with the light kit ranges from 15.35 to 21.35 inches depending on downrod length. Ideal for ceilings 9 feet or higher.
Specifications
- Primary Finish: Antique Graphite
- Blade Material: Wood
- Blade Finish: Koa
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 96"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 8515
- CFM High: 12413
- Avg Energy Use: 24W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the LED module is integrated and included.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote. No wall dimmer is needed.
Can I install this in a bathroom or outdoors? This fan is damp-rated, so it can be used in bathrooms and covered outdoor areas, but not in direct rain or wet locations.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
Can I control it with Alexa or Google Home? Yes, via the fanSync app and compatible voice assistants.
