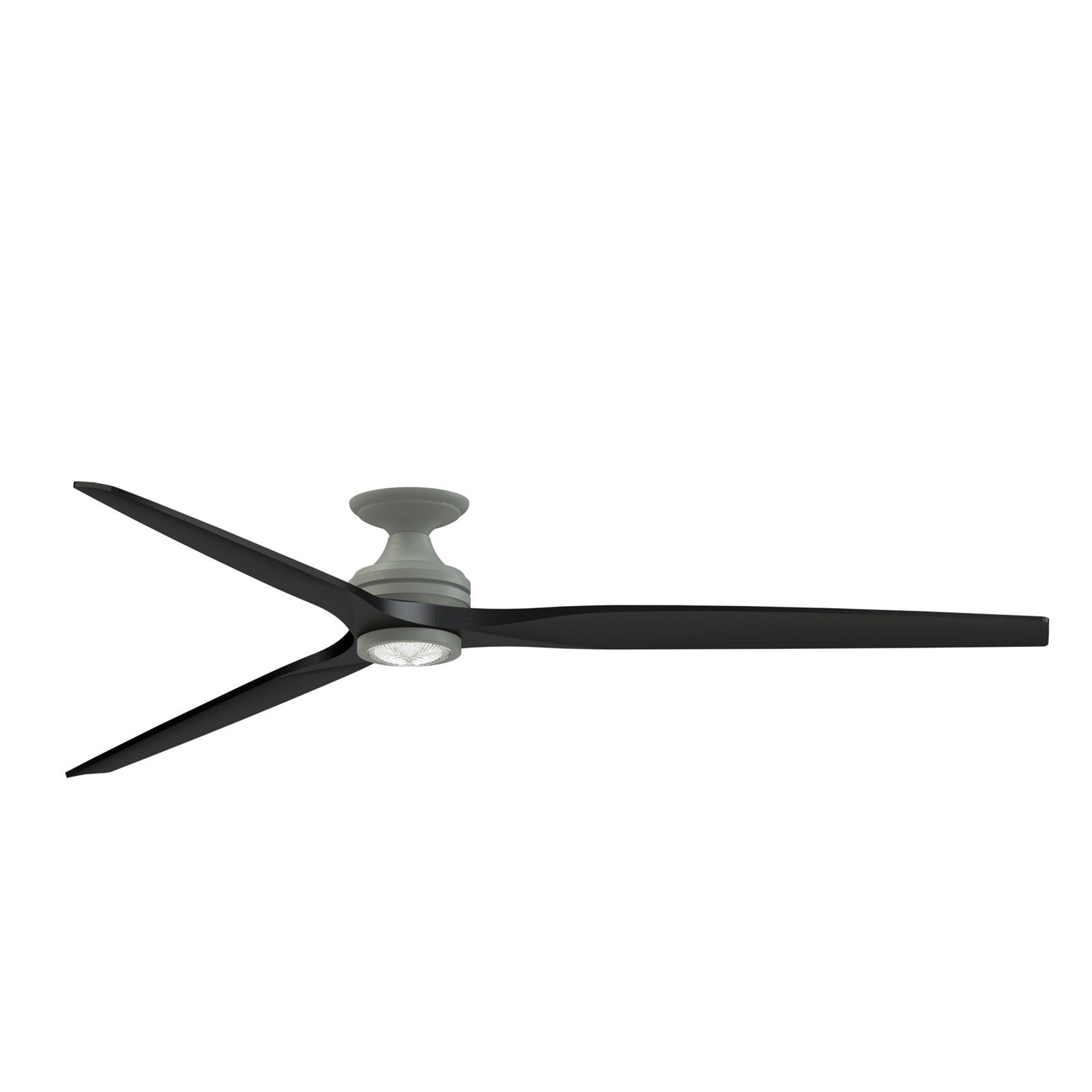

An 84-inch flush-mount smart ceiling fan with an integrated LED light kit for large covered patios, porches, and living rooms, finished in antique graphite with black blades.
The Spitfire DC Custom combines powerful airflow with customizable lighting in a low-profile design. This version includes an integrated 18-watt LED light kit with CCT Select technology, letting you shift from warm white to bright daylight. The antique graphite motor housing and black blades create a modern, industrial aesthetic that works in both indoor and covered outdoor spaces. With a 6-speed DC motor delivering up to 10,688 CFM, it keeps large rooms comfortable while the included remote and Wi-Fi connectivity offer convenient control.
Best for
- Covered patios and porches, providing powerful airflow and adjustable lighting in damp-rated outdoor spaces
- Great rooms and open-concept living areas with high ceilings
- Sunrooms and enclosed porches where humidity is a concern
- Bedrooms and home offices needing quiet, energy-efficient air movement and ambient light
- Low-ceiling rooms where a flush mount is required
Not ideal for
- Spaces with ceilings under 8 feet if you prefer a downrod mount for extra clearance
- Areas where the fan will be directly exposed to rain or water—this is damp-rated, not wet-rated
- Small rooms under 12x12 feet, where this 84-inch fan may feel oversized
How bright is it?
The integrated LED light kit delivers 1600 lumens—about as bright as a 100W incandescent bulb—suitable for ambient lighting in medium to large rooms. It is dimmable via the included remote.
Light color and feel
With CCT Select technology, you can choose from five color temperatures—2700K (warm white) to 5000K (daylight)—to match the mood of your space. The 90 CRI rating ensures colors appear vibrant and true, ideal for living areas and kitchens.
Sizing and fit

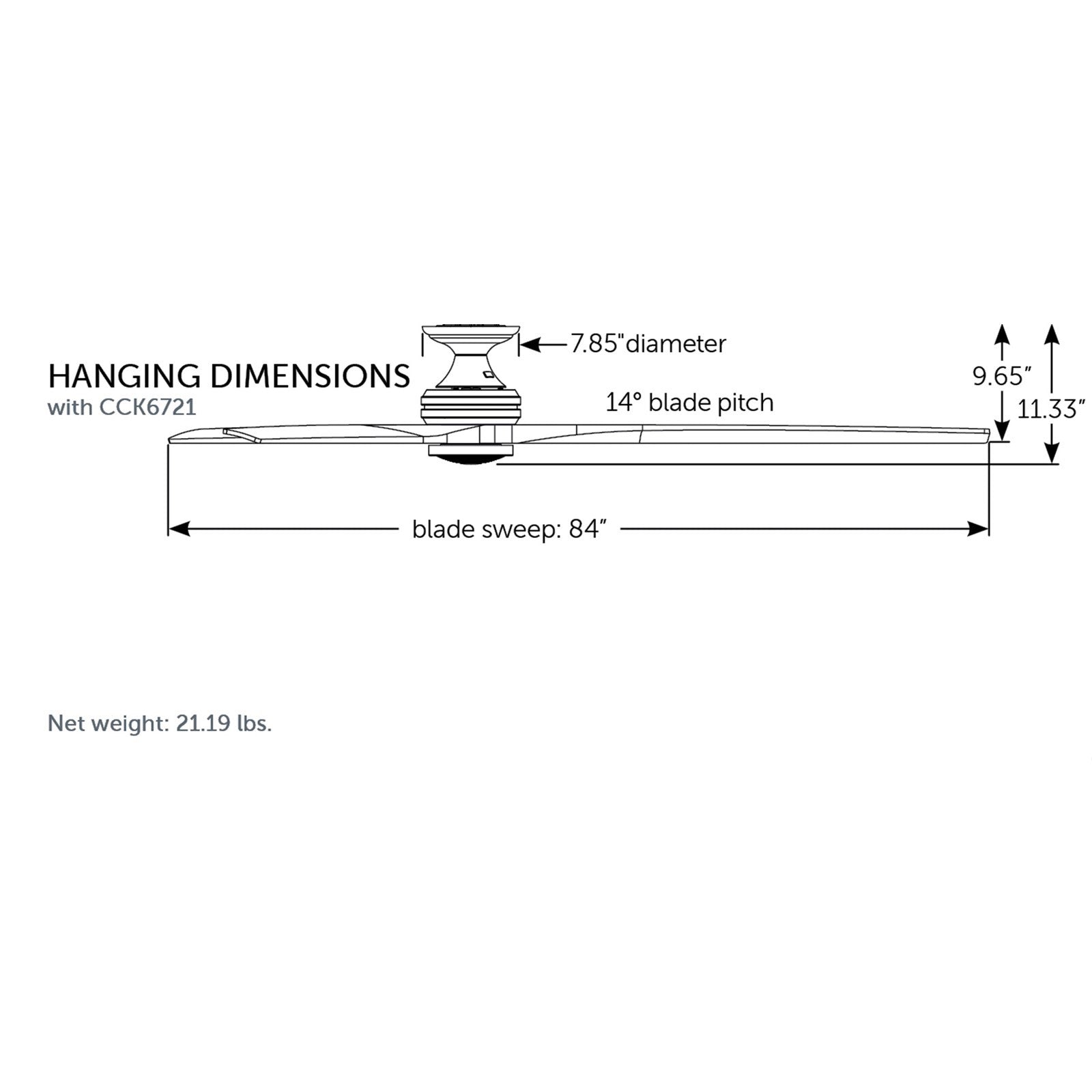

This flush-mount fan measures 84 inches in diameter and hangs just 11.33 inches from the ceiling, making it an excellent choice for rooms with low ceilings. It is designed for flat ceilings and includes a ceiling bracket for easy installation.
Specifications
- Primary Finish: Antique Graphite
- Blade Material: Buttonwood
- Blade Finish: Black
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 84"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 7610
- CFM High: 10688
- Avg Energy Use: 20W
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED light kit is included and features a non-replaceable LED module.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable and can be controlled via the included remote. No wall dimmer is required.
Can I install this in a bathroom or outdoors? Yes, this fan is damp-rated, making it suitable for bathrooms, covered patios, and other humid indoor or covered outdoor spaces. It should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
How does the flush mount affect installation? The flush mount is ideal for low ceilings, keeping the fan close to the ceiling. It includes a ceiling bracket for secure installation.
