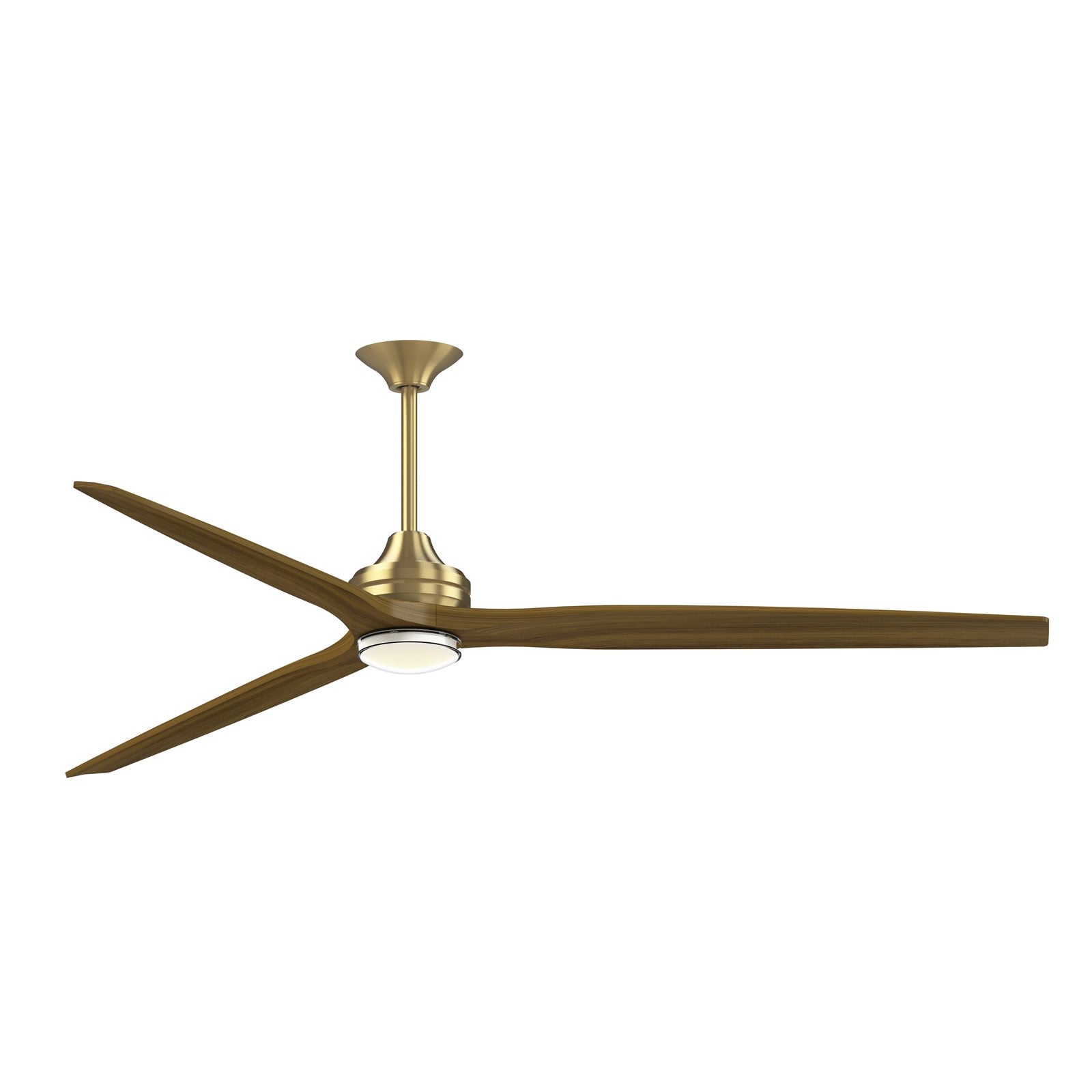

An 84-inch downrod smart ceiling fan with an integrated marine-grade LED light kit, designed for large indoor and covered outdoor spaces.
The Spitfire DC Custom pairs a Brushed Satin Brass motor with three Koa wood blades, delivering powerful airflow up to 10,688 CFM from its quiet 6-speed DC motor. The integrated 24-watt LED light kit features CCT Select technology with a double-walled glass shade for enhanced durability. Control it all with the included TR360 remote or your smart device via Wi-Fi fanSync technology.
Best for
- Covered patios and porches where damp-rated fixtures are needed
- Large living rooms and great rooms up to 400 sq ft
- Sunrooms and enclosed porches with standard or sloped ceilings (up to 20°)
- Bedrooms and home offices needing quiet, energy-efficient airflow
- Spaces where you want customizable light color from warm to daylight
Not ideal for
- Outdoor areas exposed directly to rain or water (damp-rated, not wet-rated)
- Rooms with ceilings under 8 ft if you need a flush mount (this uses downrods)
- Small rooms under 100 sq ft where an 84-inch fan is oversized
How bright is it?
The integrated 24-watt LED module produces 2000 lumens—comparable to a 150W incandescent bulb—suitable for ambient lighting in large rooms. It is dimmable via the remote for adjustable brightness.
Light color and feel
With CCT Select, you can shift from 2700K warm white (like traditional incandescent) to 5000K daylight (crisp and energizing). The high CRI of 90 ensures colors appear natural and accurate, ideal for living spaces and kitchens.
Sizing and fit
This downrod fan has an 84-inch blade sweep and measures 84 x 84 x 16 inches with the included 6-inch downrod. It includes both 6-inch and 12-inch downrods for flexible installation on flat or sloped ceilings (up to 20°).
Specifications
- Primary Finish: Brushed Satin Brass
- Blade Material: Wood
- Blade Finish: Koa
- Shade Finish: Clear
- Collection: Spitfire
- Blade Sweep: 84"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 24W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 2000
- Voltage: 120V
- Avg CFM: 7610
- CFM High: 10688
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED module is included.
Is it dimmable, and what dimmer should I use? Yes, it is dimmable via the included TR360 remote. No wall dimmer is required.
Can I install this in a bathroom or outdoors? It is damp-rated, so it is suitable for bathrooms and covered outdoor areas, but not for direct rain exposure.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
Does it work with voice assistants? Yes, via Wi-Fi fanSync technology, it works with compatible smart devices and voice assistants.
