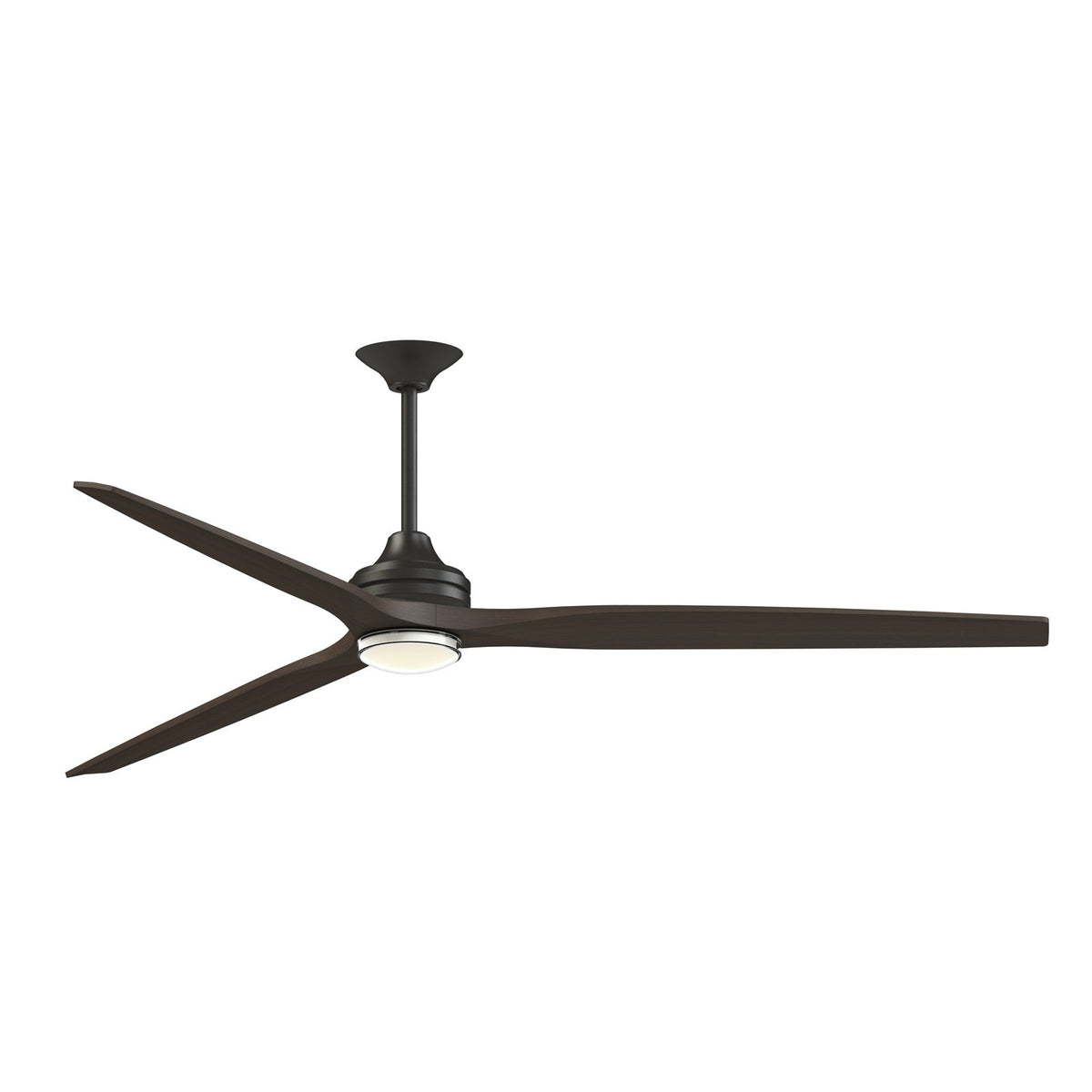

An 84-inch smart ceiling fan with an integrated LED light kit, designed for large covered outdoor and indoor spaces, finished in dark bronze with dark walnut blades.
The Spitfire DC Custom pairs a streamlined dark bronze motor housing with three dark walnut buttonwood blades for a modern, natural look. Its 6-speed DC motor delivers powerful airflow up to 10,688 CFM while staying quiet and energy efficient. The included double-walled marine-grade light kit offers five selectable color temperatures, and the fan is controlled via the included TR360 remote or the fanSync app with voice assistant compatibility.
Best for
- Covered patios and porches, where the damp-rated motor and moisture-resistant blades handle humidity without direct rain exposure
- Sunrooms and large living areas with ceilings 8 feet or higher, using the included 6-inch or 12-inch downrods
- Great rooms and open floor plans needing high-volume airflow up to 10,688 CFM
- Bedrooms and home offices where the quiet DC motor and adjustable light color create a comfortable environment
- Outdoor kitchens and covered entertainment areas with smart home integration
Not ideal for
- Directly exposed outdoor locations - this fan is damp-rated, not wet-rated, so it should not be installed where it will be hit by rain or water spray
- Rooms with ceilings under 7 feet, as the fan requires a minimum hanging height for safe clearance
- Small spaces under 14x14 feet, where the 84-inch blade sweep may be overpowering
How bright is it?
The integrated 24-watt LED module produces 2,000 lumens - about as bright as a 150W incandescent bulb, suitable for ambient lighting in large rooms. It is dimmable, so you can adjust the brightness to suit the mood.
Light color and feel
With CCT Select technology, you can choose from five color temperatures: 2700K (warm white), 3000K (soft white), 3500K (neutral), 4000K (cool white), and 5000K (daylight). This lets you shift from a cozy, golden glow to crisp, bright light. The high CRI of 90 ensures colors appear natural and accurate.
Sizing and fit
This fan has an 84-inch blade sweep and overall dimensions of 84 x 84 x 16 inches (with light kit). It includes 6-inch and 12-inch downrods, with optional downrods up to 72 inches available for higher ceilings. The recommended hanging height is 7 to 9 feet from the floor to the blades. It fits flat or sloped ceilings up to 20 degrees.
Specifications
- Primary Finish: Dark Bronze
- Blade Material: Buttonwood
- Blade Finish: Dark Walnut
- Shade Finish: Clear
- Collection: Spitfire
- Blade Sweep: 84"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 24W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 2000
- Voltage: 120V
- Avg CFM: 7610
- CFM High: 10688
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED module is included and cannot be replaced separately.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote or the fanSync app. No wall dimmer is required.
Can I install this in a bathroom or outdoors? This fan is damp-rated, so it is suitable for covered outdoor areas and bathrooms with humidity, but it should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser, covering the motor. For assistance, contact Fanimation Tech Support at 1-888-567-2055.
How does the double-walled marine light kit differ from the standard kit? The double-walled shade is constructed with marine-grade materials for enhanced durability, making it more resistant to moisture and impact, ideal for outdoor use.
