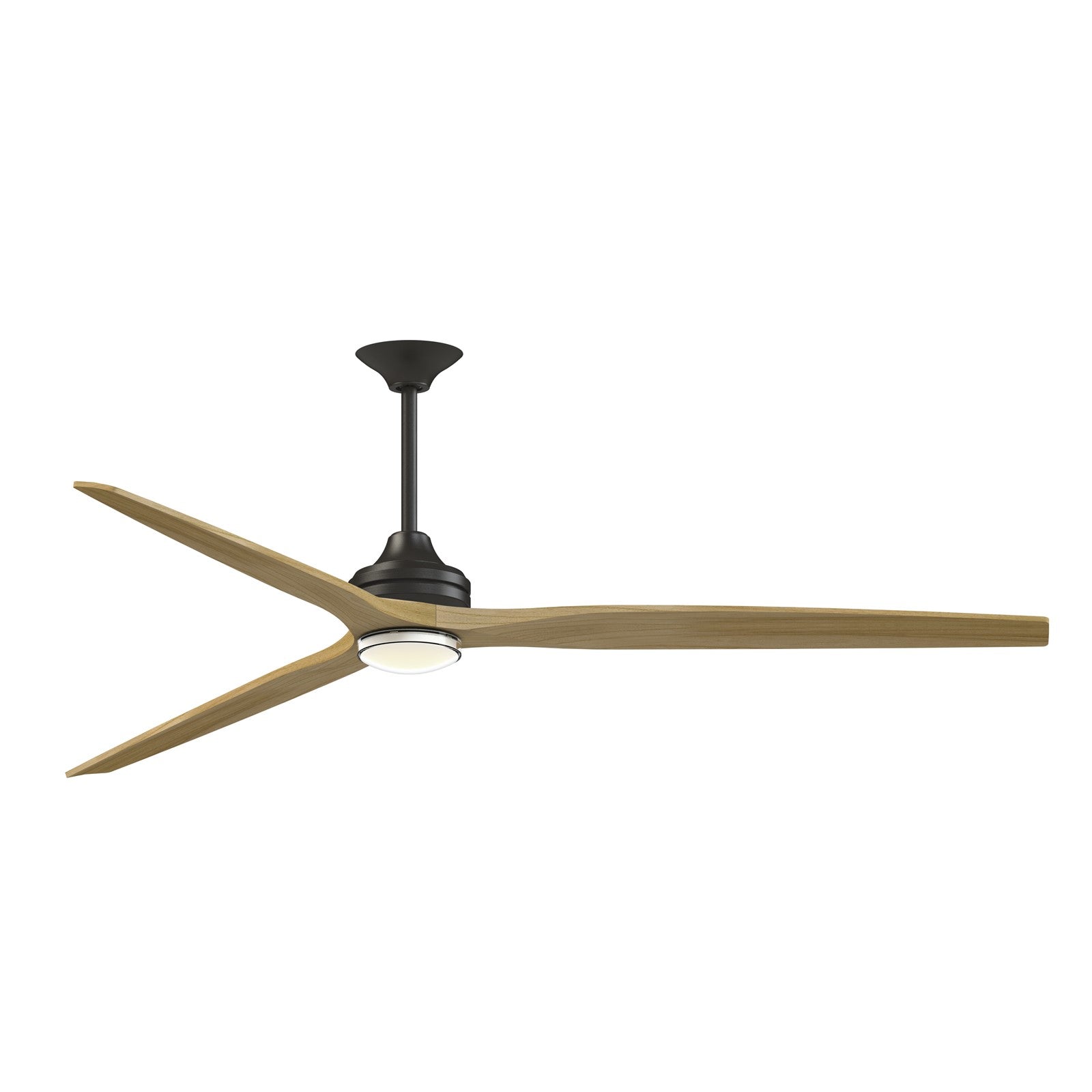

An 84-inch smart ceiling fan with a double-walled marine LED light kit, designed for large covered outdoor and indoor spaces, finished in dark bronze with natural Buttonwood blades.
The Spitfire DC Custom is a statement piece for expansive rooms and covered patios. Its 84-inch blade sweep and powerful DC motor move air up to 10,688 CFM, while the dark bronze finish and natural Buttonwood blades bring a warm, organic contrast to modern and transitional spaces. The integrated 24-watt LED light kit features a double-walled glass shade for enhanced durability and offers five color temperatures, from warm to daylight. The included remote and Wi-Fi control make it effortless to adjust from your couch or phone.
Best for
- Covered patios and porches, where its damp rating and moisture-resistant blades handle humidity without direct rain exposure
- Great rooms, open-plan living areas, and vaulted ceilings needing high airflow
- Sunrooms and three-season rooms that benefit from year-round comfort
- Large primary bedrooms or home gyms where quiet, powerful circulation is key
- Smart-home setups, with Wi-Fi control via the fanSync app and voice assistants
Not ideal for
- Directly exposed outdoor areas—this fan is damp rated, not wet rated, so it must be under a covered roof
- Low ceilings under 8 feet—the downrod mount requires clearance; consider the flush-mount version instead
- Small rooms under 12x12 feet—the 84-inch sweep is oversized for compact spaces
How bright is it?
The integrated LED module produces 2000 lumens—comparable to a 150-watt incandescent bulb—making it suitable for ambient lighting in large rooms. It is dimmable, so you can lower the light for a cozy evening.
Light color and feel
Choose from five color temperatures: 2700K (warm white), 3000K (soft white), 3500K (neutral), 4000K (cool white), and 5000K (daylight). With a CRI of 90, colors appear vivid and natural. The double-walled glass shade diffuses light evenly and is built for durability.
Sizing and fit
This fan measures 84 inches in diameter and 16 inches from ceiling to bottom with the included 6-inch downrod (or 22 inches with the 12-inch downrod). It fits flat or sloped ceilings up to 20 degrees. For optimal airflow, mount it 7 to 9 feet above the floor.
Specifications
- Primary Finish: Dark Bronze
- Blade Material: Buttonwood
- Blade Finish: Natural
- Shade Finish: Clear
- Collection: Spitfire
- Blade Sweep: 84"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 24W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 2000
- Voltage: 120V
- Avg CFM: 7610
- CFM High: 10688
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 84"(L)84"(W) x 16, 22"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 8.76"(Dia) x 2.52"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Ceiling to Bottom (With Light Kit): 16, 22"
- Item Weight: 20.97 lbs.
Frequently asked
Is the bulb included? Yes, the integrated LED module is included and rated for 24W.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included remote or the fanSync app. No wall dimmer is required.
Can I install this in a bathroom or outdoors? It is damp rated, so it can be used in bathrooms and covered outdoor areas, but not in direct rain or wet locations.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
How do I control the fan and light? The included TR360 remote controls speed, reversing, dimming, and CCT. Wi-Fi via fanSync allows app and voice control.
