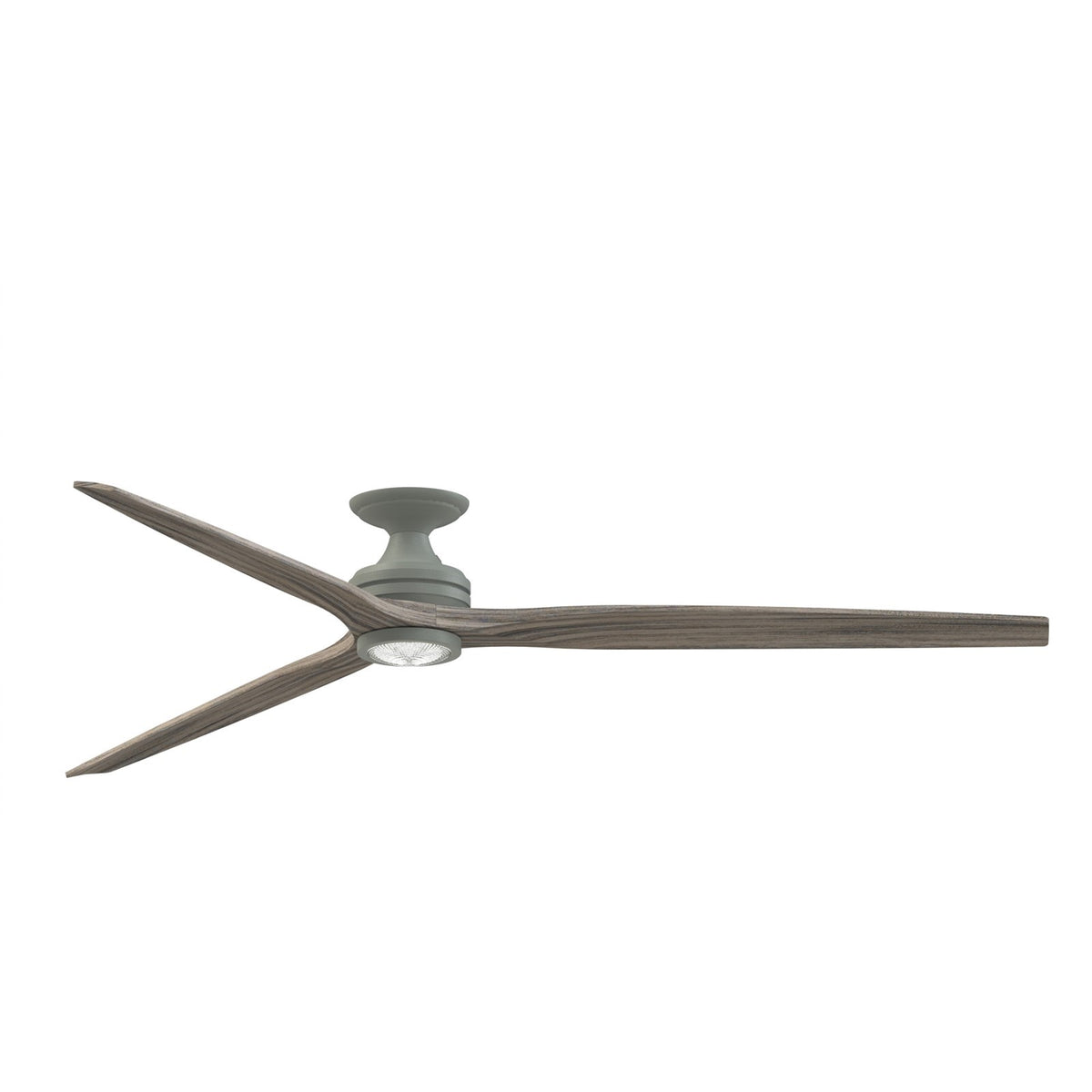

An 84-inch flush-mount smart ceiling fan with an integrated LED light kit, designed for large indoor and covered outdoor spaces.
The Spitfire DC Custom combines a sleek, low-profile design with powerful performance. Its Antique Graphite motor housing and Weathered Wood blades bring a modern, organic look to any room. The integrated 18-watt LED light kit with CCT Select technology lets you choose from five color temperatures, from warm to daylight, while the Wi-Fi enabled fanSync technology allows convenient control via smart device or voice assistant.
Best for
- Covered patios and porches, rated for damp locations
- Great rooms and open-concept living areas with high ceilings
- Sunrooms and enclosed porches where humidity is a concern
- Bedrooms and living spaces needing quiet, energy-efficient airflow
- Low-ceiling rooms where a flush mount is required
Not ideal for
- Outdoor areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
- Small rooms under 12x12 ft where an 84-inch sweep may be overpowering
How bright is it?
The integrated LED module produces 1600 lumens - comparable to a 100W incandescent bulb, providing ample ambient light for large spaces. It is dimmable, allowing you to adjust brightness to suit the mood.
Light color and feel
With CCT Select technology, you can choose from 2700K (warm white), 3000K (soft white), 3500K (neutral white), 4000K (cool white), or 5000K (daylight). This flexibility lets you create the perfect atmosphere, from cozy and warm to bright and invigorating. With a CRI of 90, colors appear vibrant and true.
Sizing and fit

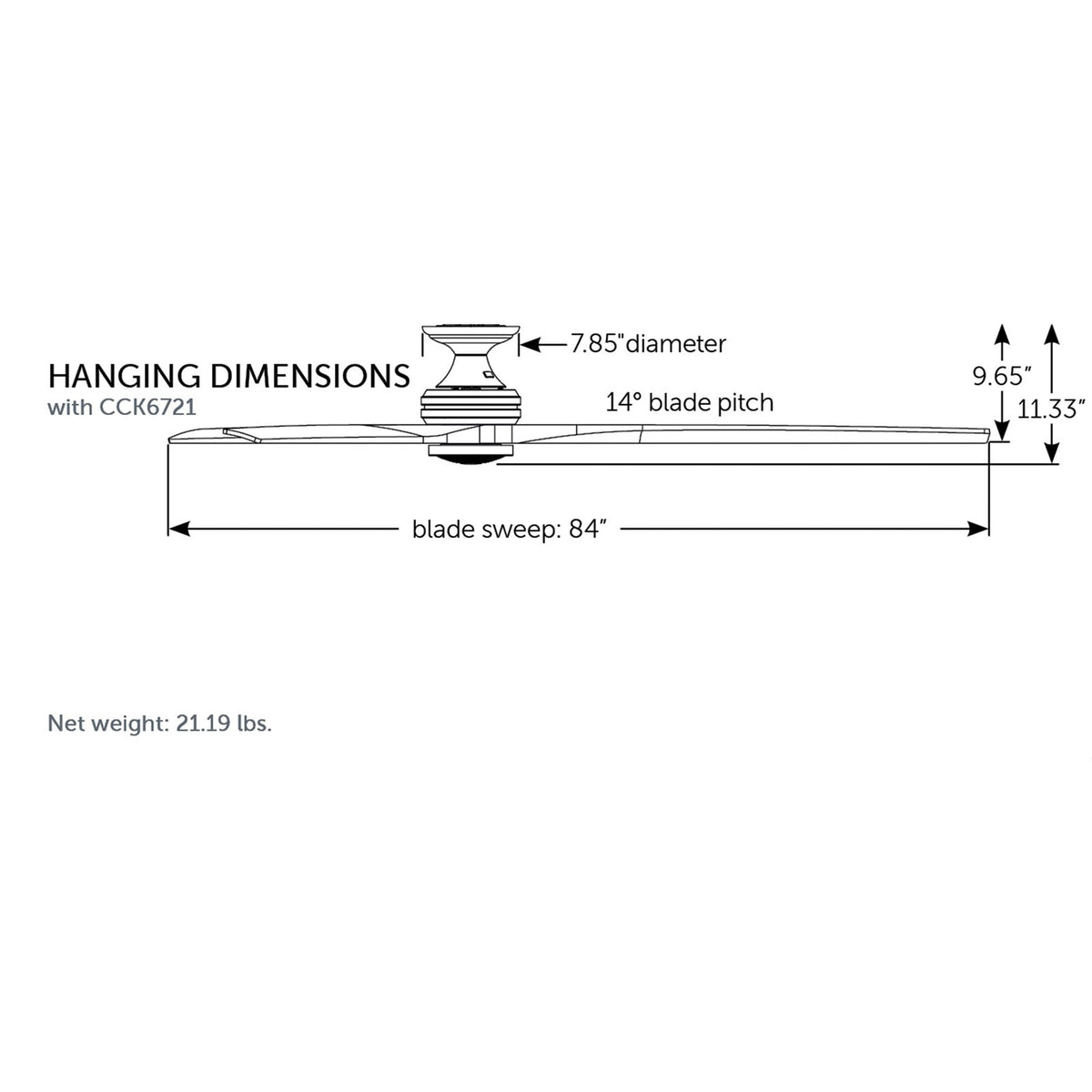

This fan has an 84-inch blade sweep and a low-profile flush mount, making it ideal for ceilings as low as 8 feet. The overall dimensions are 84 inches wide by 84 inches deep by 11.33 inches high. It is designed for flat ceilings.
Specifications
- Primary Finish: Antique Graphite
- Blade Material: Buttonwood
- Blade Finish: Weathered Wood
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 84"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 7610
- CFM High: 10688
- Avg Energy Use: 20W
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, an integrated 18W LED module is included.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote, which offers infinite light dimming.
Can I install this in a bathroom or outdoors? This fan is damp-rated, making it suitable for bathrooms and covered outdoor areas, but it should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
Does this fan work with voice assistants? Yes, the Wi-Fi enabled fanSync technology allows control via compatible smart devices and voice assistants.
