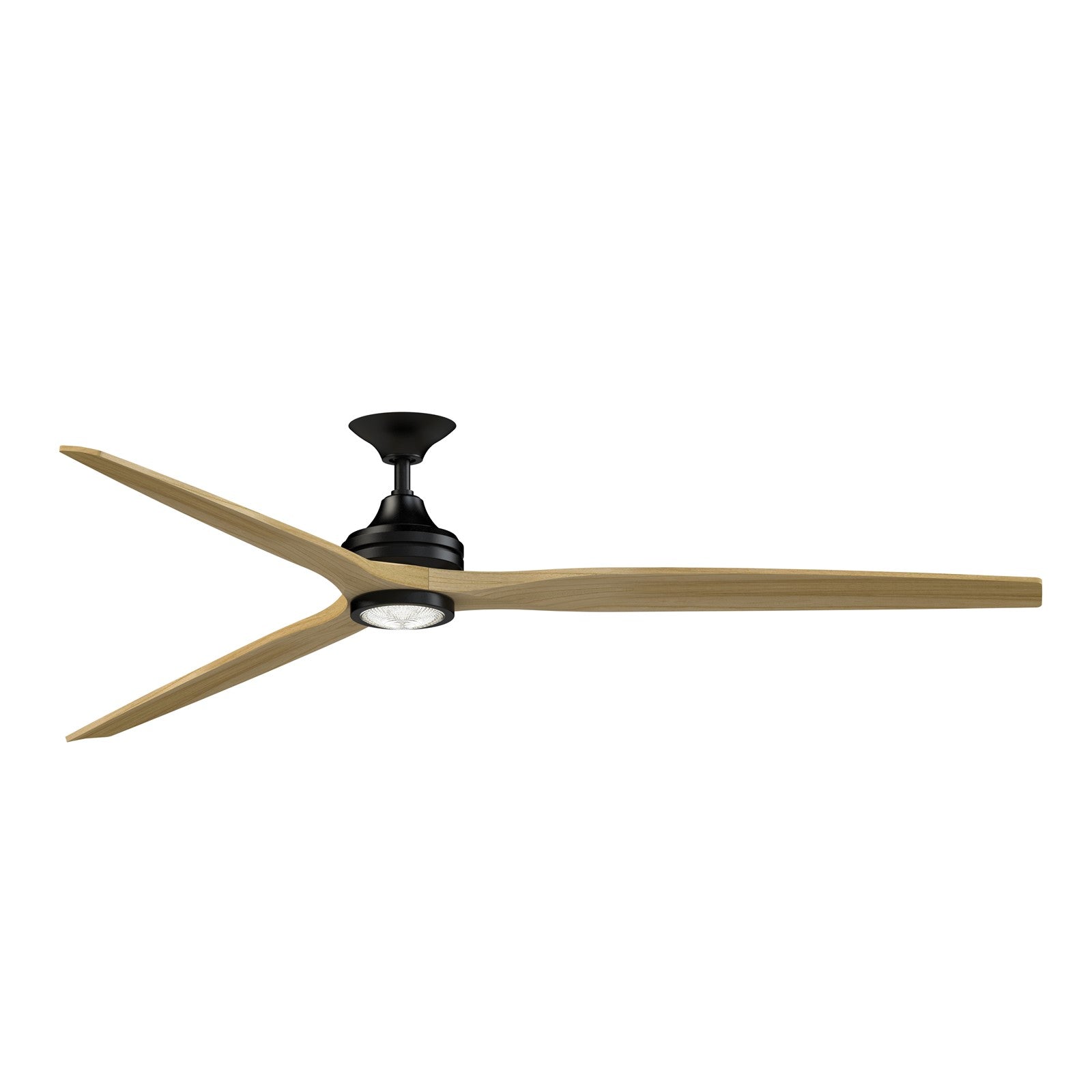

An 84-inch smart ceiling fan with an integrated LED light kit, designed for large indoor and covered outdoor spaces like great rooms and covered patios.
The Spitfire DC Custom pairs a sleek Black motor with Natural buttonwood blades, delivering powerful, quiet airflow up to 10,688 CFM from its 6-speed DC motor. This version includes an integrated 18-watt LED light kit with CCT Select technology, offering five selectable color temperatures—2700K, 3000K, 3500K, 4000K, and 5000K—so the light can shift from warm and comfortable to bright daylight. The included TR360 handheld remote provides easy control of fan speed, reversing, light dimming, and CCT selection, while Wi-Fi enabled fanSync technology allows control from a compatible smart device, voice assistant, or the fanSync app. Fanimation’s KwikWire technology makes wiring the receiver quicker and easier by replacing five wire-nut connections with two simple connectors. Damp rated for indoor and covered outdoor use, the Spitfire DC Custom brings streamlined design, smart control, and flexible lighting options to a wide range of spaces.
Best for
- Covered patios and porches, where the damp-rated construction handles humidity without direct rain exposure
- Great rooms and open-concept living areas with ceilings 9 feet or higher, using the included downrods
- Sunrooms and three-season rooms that need both airflow and adjustable lighting
- Large bedrooms or home offices where quiet, efficient air movement is a priority
- Smart-home setups, thanks to Wi-Fi fanSync and voice assistant compatibility
Not ideal for
- Rooms with ceilings under 8 feet, unless you use the flush-mount option (sold separately)
- Directly exposed outdoor areas without a roof or cover, as it is damp-rated, not wet-rated
- Small spaces under 12x12 feet, where the 84-inch sweep may feel oversized
How bright is it?
1600 lumens—about as bright as a 100W incandescent bulb, suitable for ambient lighting in large rooms. It is not a primary task light but provides comfortable general illumination.
Light color and feel
Five selectable color temperatures from 2700K warm white to 5000K daylight, with a CRI of 90 for accurate color rendering. Dimmable via the included remote, allowing you to adjust the mood from cozy to crisp.
Sizing and fit
84-inch blade sweep with a 14° blade pitch, ideal for rooms at least 18x18 feet. Includes 6-inch and 12-inch downrods, with optional downrods up to 72 inches for higher ceilings. Overall dimensions: 84"(L) x 84"(W) x 19.42"(H) with light kit.
Specifications
- Primary Finish: Black
- Blade Material: Buttonwood
- Blade Finish: Natural
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 84"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 7610
- CFM High: 10688
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, an integrated LED module is included.
Is it dimmable, and what dimmer should I use? Yes, it is dimmable via the included TR360 remote; no wall dimmer required.
Can I install this in a bathroom or outdoors? It is damp-rated, so it can be used in bathrooms and covered outdoor areas, but not directly exposed to rain.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
What shade options are included? This light kit includes both fresnel and frosted shades, so you can choose the light diffusion that suits your space.
