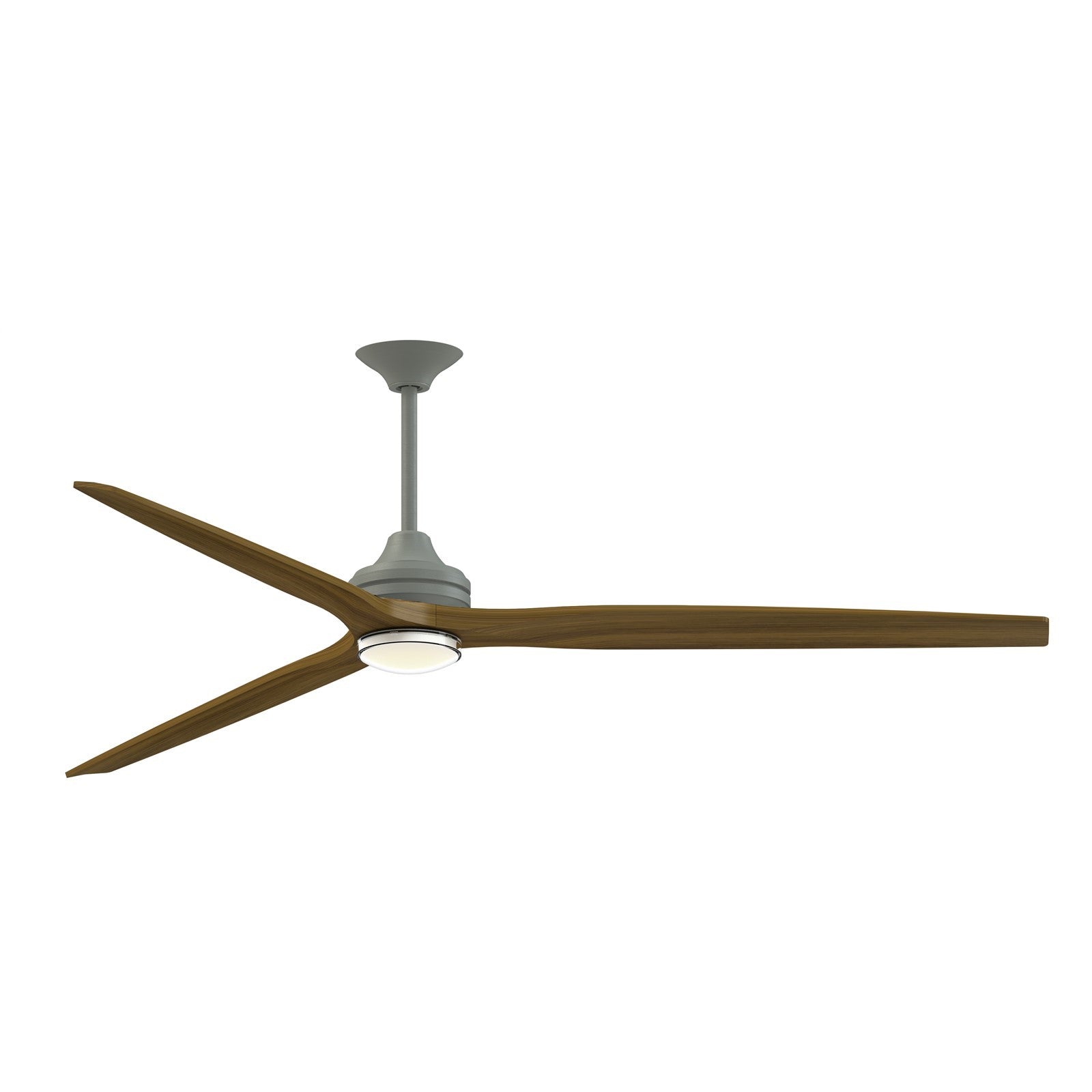

An 84-inch indoor/outdoor smart ceiling fan with an integrated LED light kit, finished in antique graphite with Koa wood blades, for large covered patios and great rooms.
The Spitfire DC Custom pairs a sleek antique graphite motor with three Koa wood blades to move up to 10,688 CFM of air quietly and efficiently. Its integrated 18-watt LED light kit features CCT Select technology, letting you shift from warm 2700K to bright 5000K daylight. Control everything with the included TR360 handheld remote or your smart device via Wi-Fi fanSync technology.
Best for
- Covered patios and porches, damp-rated for humidity and moisture
- Great rooms and open-plan living areas 20x20 ft or larger
- Sunrooms and three-season rooms that need year-round comfort
- Bedrooms and living spaces where quiet, energy-efficient airflow matters
- High ceilings up to 20° slope, with included 6-inch and 12-inch downrods
Not ideal for
- Directly exposed outdoor areas without a roof or cover - this fan is damp-rated, not wet-rated
- Small rooms under 12x12 ft - the 84-inch sweep is oversized for compact spaces
- Low ceilings under 8 ft unless you use the flush-mount version
How bright is it?
2000 lumens - about as bright as a 150W incandescent bulb, ideal for ambient lighting in large rooms. The integrated LED module is dimmable, so you can lower the light for a cozy evening.
Light color and feel
Five selectable color temperatures from 2700K warm white to 5000K daylight. With a CRI of 90, colors render accurately, making it suitable for kitchens or art-filled spaces. Dimmable with the included remote.
Sizing and fit
84-inch blade sweep with a 14° blade pitch. Overall dimensions 84 x 84 x 22 inches. Includes 6-inch and 12-inch downrods; optional downrods up to 72 inches for higher ceilings. Recommended hanging height is 7 to 9 feet.
Specifications
- Primary Finish: Antique Graphite
- Blade Material: Wood
- Blade Finish: Koa
- Shade Finish: Clear
- Collection: Spitfire
- Blade Sweep: 84"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 24W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 2000
- Voltage: 120V
- Avg CFM: 7610
- CFM High: 10688
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED module is included.
Is it dimmable, and what dimmer should I use? Yes, it is dimmable via the included TR360 remote.
Can I install this in a bathroom or outdoors? It is damp-rated, so it is suitable for covered outdoor areas and bathrooms with humidity, but not for direct rain exposure.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
Does it work with voice assistants? Yes, via Wi-Fi fanSync technology, it works with compatible smart devices and voice assistants.
