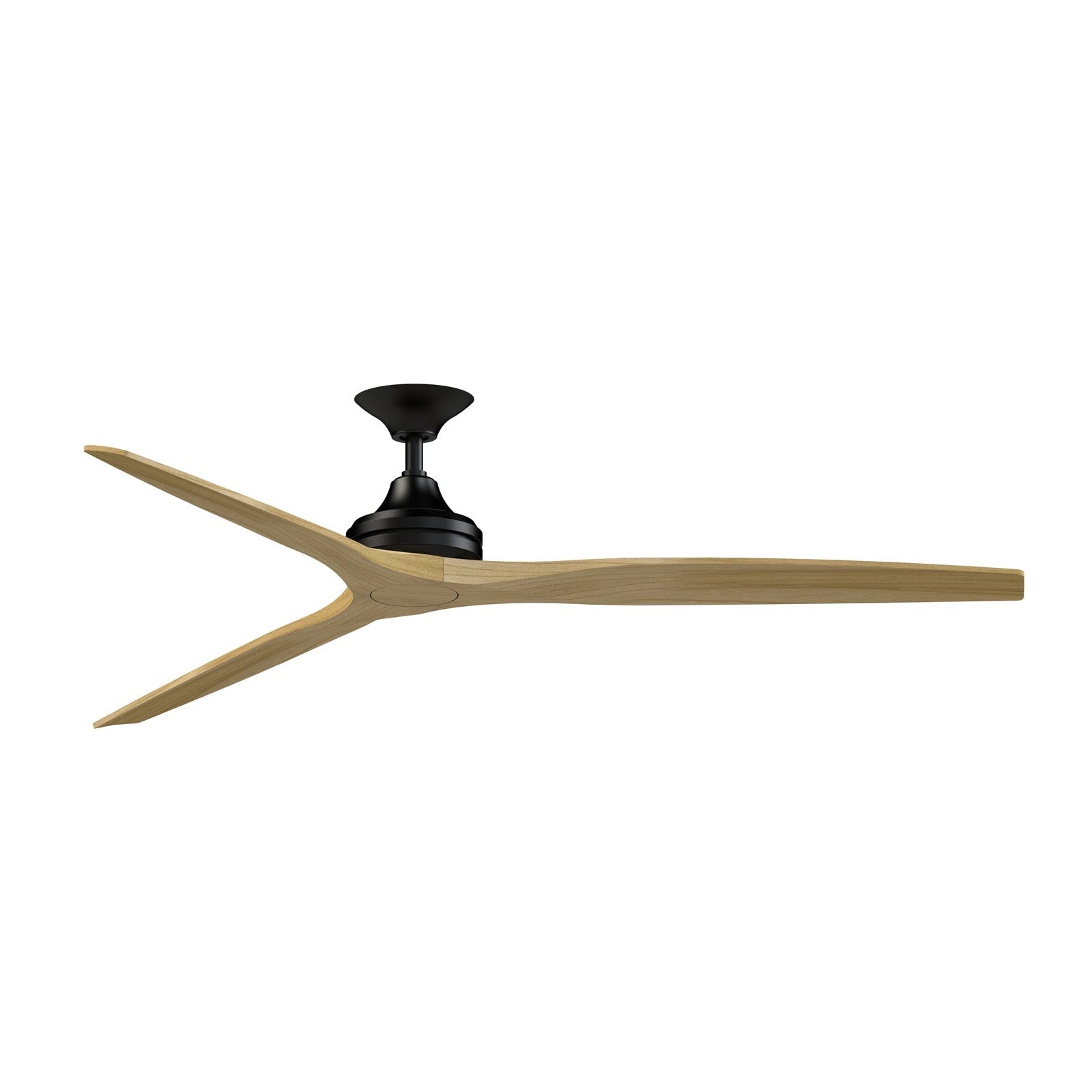

A 72-inch downrod smart ceiling fan from Fanimation's Spitfire collection, finished in black with natural blades, designed for large indoor and covered outdoor spaces.
The Spitfire DC Custom brings a streamlined, modern look to big rooms. The black motor housing pairs with three natural buttonwood blades to create a warm, organic contrast. Its powerful 6-speed DC motor moves up to 9,639 CFM of air quietly, making it a workhorse for living areas, great rooms, and covered patios. With Wi-Fi enabled fanSync technology, you can control the fan from your smartphone or voice assistant, and the included TR360 remote puts all controls at your fingertips. The fan is damp rated, so it's safe for covered outdoor areas and humid indoor spaces.
Best for
- Covered patios and porches, where the damp rating and weather-resistant blades shine
- Great rooms and open-concept living areas with high ceilings, where the 72-inch sweep provides powerful airflow
- Sunrooms and three-season rooms that need year-round comfort
- Primary bedrooms and large home offices where quiet operation is a priority
- Rooms with standard or slightly sloped ceilings (up to 20°), thanks to the included downrods
Not ideal for
- Small rooms under 12x12 ft, where the 72-inch blade sweep may be overpowering
- Outdoor areas directly exposed to rain or water - this fan is damp rated, not wet rated
- Rooms with very low ceilings (under 8 ft) where the downrod adds extra height
How bright is it?
This fan is compatible with an optional integrated 18-watt LED light kit (sold separately) that delivers 1600 lumens - about as bright as a 100W incandescent bulb, suitable for ambient lighting in a large room. The light kit features CCT Select technology, letting you choose from five color temperatures.
Light color and feel
When paired with the optional light kit, you can select from 2700K (warm white) to 5000K (daylight) to match your mood and activity. The 90 CRI rating ensures colors appear vibrant and true, ideal for living spaces where you want accurate color rendering. The light is dimmable via the remote for complete control.
Sizing and fit
This fan measures 72 inches in diameter and hangs 19.69 inches from the ceiling with the included 6-inch downrod (or 25.69 inches with the 12-inch downrod). It's best suited for rooms with 8-foot or higher ceilings and at least 15x15 feet of space to balance the large blade sweep. Optional downrods up to 72 inches are available for higher ceilings.
Specifications
- Primary Finish: Black
- Blade Material: Buttonwood
- Blade Finish: Natural
- Collection: Spitfire
- Blade Sweep: 72"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 6237
- CFM High: 9639
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 72"(L)72"(W) x 19.69"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 8.76"(Dia) x 2.52"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Item Weight: 19.3 lbs.
Frequently asked
Is the bulb included? This fan does not include a light kit; it is compatible with an optional integrated 18-watt LED light kit (sold separately).
Is it dimmable, and what dimmer should I use? When the optional light kit is installed, the light is dimmable via the included TR360 remote. No wall dimmer is required.
Can I install this in a bathroom or outdoors? Yes, this fan is damp rated, making it suitable for bathrooms, covered patios, and other humid indoor or covered outdoor spaces. It should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser. Contact Fanimation Tech Support at 1-888-567-2055 for assistance.
Does this fan work with smart home systems? Yes, it features Wi-Fi enabled fanSync technology, allowing control via the fanSync app, compatible smart devices, and voice assistants.
