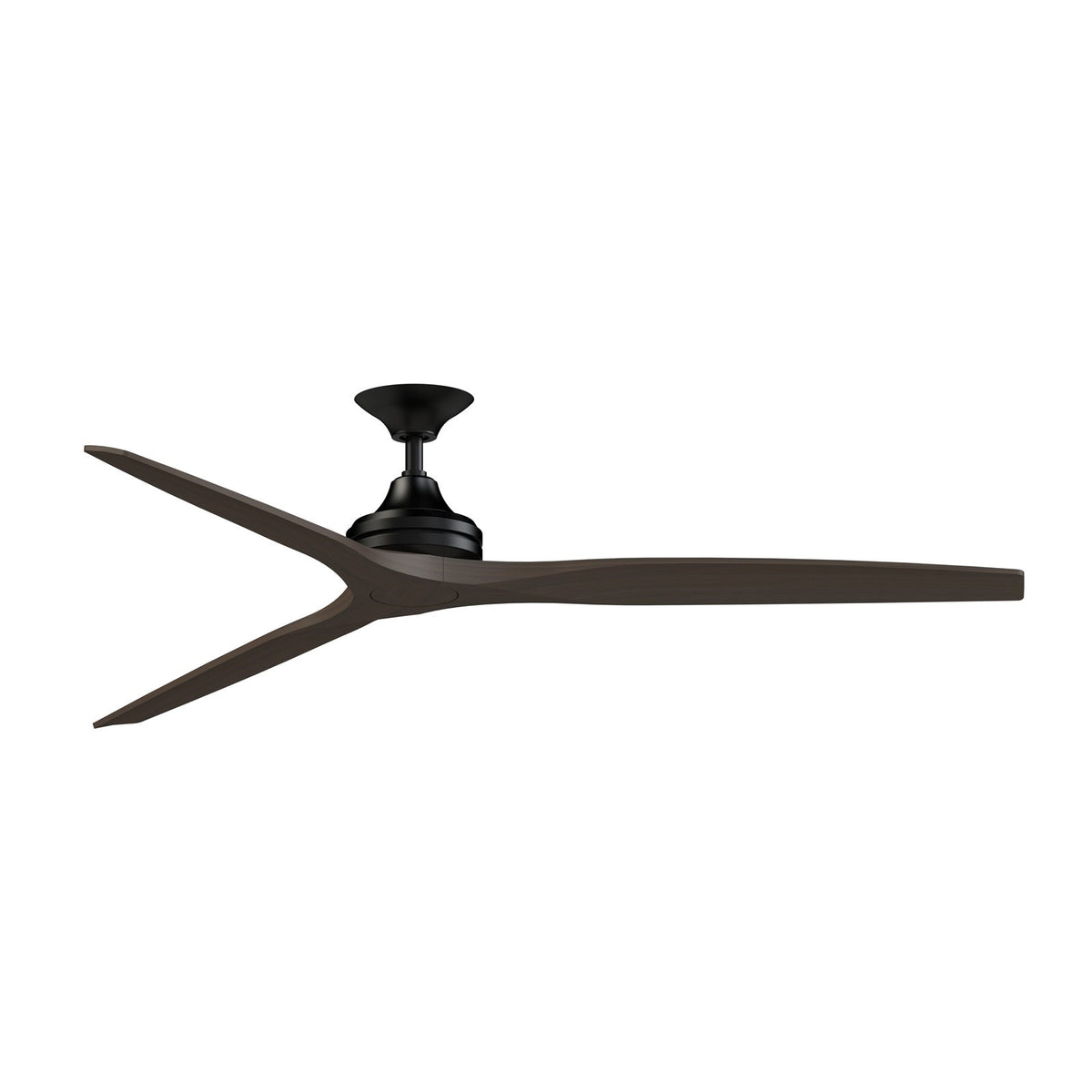

A 72-inch downrod smart ceiling fan for large indoor and covered outdoor spaces, with a Black motor and Dark Walnut blades.
The Spitfire DC Custom from Fanimation combines a sleek Black motor with three Dark Walnut Buttonwood blades for a warm, contemporary look. Its 6-speed DC motor delivers powerful airflow up to 9,639 CFM while staying quiet and energy-efficient. This version is compatible with an optional LED light kit (sold separately) featuring CCT Select technology, and it includes the TR360 remote and Wi-Fi fanSync for smart control.
Best for
- Covered patios and porches, where damp-rated construction stands up to humidity
- Great rooms and open-plan living areas up to 20x20 ft, providing strong airflow
- Sunrooms and three-season rooms that need both air movement and adjustable lighting
- Bedrooms and living rooms with standard or slightly sloped ceilings (up to 20°)
- Smart-home setups, with voice control via Alexa or Google Assistant
Not ideal for
- Outdoor areas directly exposed to rain or water—this fan is damp-rated, not wet-rated
- Small rooms under 10x10 ft, where the 72-inch blade sweep may feel oversized
- Rooms with very low ceilings, as the downrod adds height (13.69 to 19.69 inches from ceiling)
How bright is it?
This fan does not include a light kit, so brightness depends on the optional light kit you add. The compatible 18-watt LED kit produces 1,600 lumens—comparable to a 100W incandescent bulb—and is dimmable.
Light color and feel
If you add the optional light kit, you can choose from five color temperatures—2700K to 5000K—to create anything from a cozy warm glow to bright daylight. With a CRI of 90, colors appear vivid and accurate.
Sizing and fit
This fan measures 72 inches in diameter and hangs 13.69 or 19.69 inches from the ceiling, depending on the included 6-inch or 12-inch downrod. It's designed for flat or slightly sloped ceilings up to 20°.
Specifications
- Primary Finish: Black
- Blade Material: Buttonwood
- Blade Finish: Dark Walnut
- Collection: Spitfire
- Blade Sweep: 72"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 6237
- CFM High: 9639
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
What is it made of? The motor housing is metal with a Black finish, and the blades are made of Buttonwood with a Dark Walnut finish.
Where in the home does this work best? It's ideal for large living areas, covered patios, sunrooms, and bedrooms with standard or slightly sloped ceilings.
How is it mounted or assembled? It mounts to the ceiling using the included 6-inch and 12-inch downrods. Optional downrods up to 72 inches are available for higher ceilings.
What's the warranty? Fanimation offers a Limited Lifetime Warranty on the motor.
Can I add a light kit later? Yes, this fan is compatible with Fanimation's optional LED light kit with CCT Select technology (sold separately).
