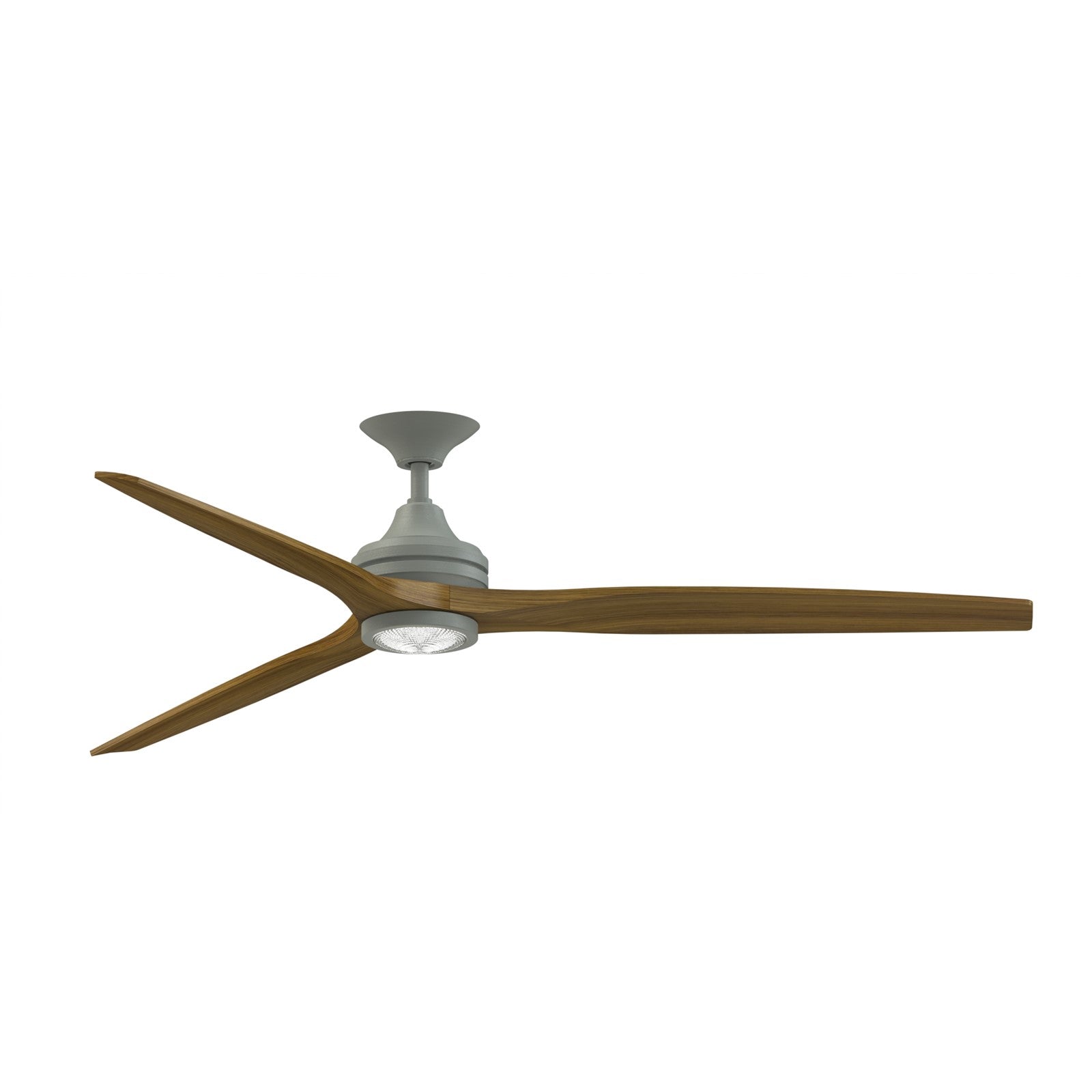

A 72-inch smart ceiling fan with an integrated LED light kit, designed for large indoor and covered outdoor spaces like great rooms, covered patios, and porches.
The Spitfire DC Custom pairs a sleek Antique Graphite motor with three Koa wood blades, delivering powerful, quiet airflow up to 9,639 CFM from its 6-speed DC motor. This version includes an integrated LED light kit with CCT Select technology, letting you shift the light from warm 2700K to bright daylight 5000K. Control it all with the included TR360 handheld remote or your smart device via Wi-Fi fanSync.
Best for
- Great rooms and open-plan living areas 20x20 ft or larger, where high airflow and a modern statement are needed
- Covered patios, porches, and sunrooms - damp rated for humidity and covered outdoor use
- Bedrooms and living rooms with ceilings 8 ft or higher, using the included 6 or 12-inch downrods
- Spaces where you want customizable light color from warm to daylight, with dimming
- Smart-home setups - control via fanSync app, voice assistants, or the included remote
Not ideal for
- Directly exposed outdoor areas - damp rated, not wet rated, so avoid rain or water spray
- Rooms with ceilings under 8 ft if you need the 72-inch downrod - use the flush mount version instead
- Small rooms under 12x12 ft - this 72-inch fan is oversized for compact spaces
How bright is it?
1600 lumens - about as bright as a 100W incandescent bulb, enough to light a large living area or covered patio. With CCT Select, you can adjust from warm to daylight.
Light color and feel
Five selectable color temperatures from 2700K warm white to 5000K daylight. 2700K gives a cozy, golden glow; 5000K is crisp and energizing. With a CRI of 90, colors render accurately. The light is dimmable via the remote or app.
Sizing and fit
72-inch blade sweep, 72 x 72 x 19.42 inches overall. Includes 6 and 12-inch downrods; optional downrods up to 72 inches for higher ceilings. Recommended hanging height 7-9 feet. Fits flat or sloped ceilings up to 20 degrees.
Specifications
- Primary Finish: Antique Graphite
- Blade Material: Wood
- Blade Finish: Koa
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 72"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 6237
- CFM High: 9639
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the LED module is integrated and included.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote or the fanSync app. No wall dimmer needed.
Can I install this in a bathroom or outdoors? It is damp rated, so it's fine in bathrooms and covered outdoor areas, but not directly exposed to rain.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
Does it work with sloped ceilings? Yes, up to 20 degrees slope.
