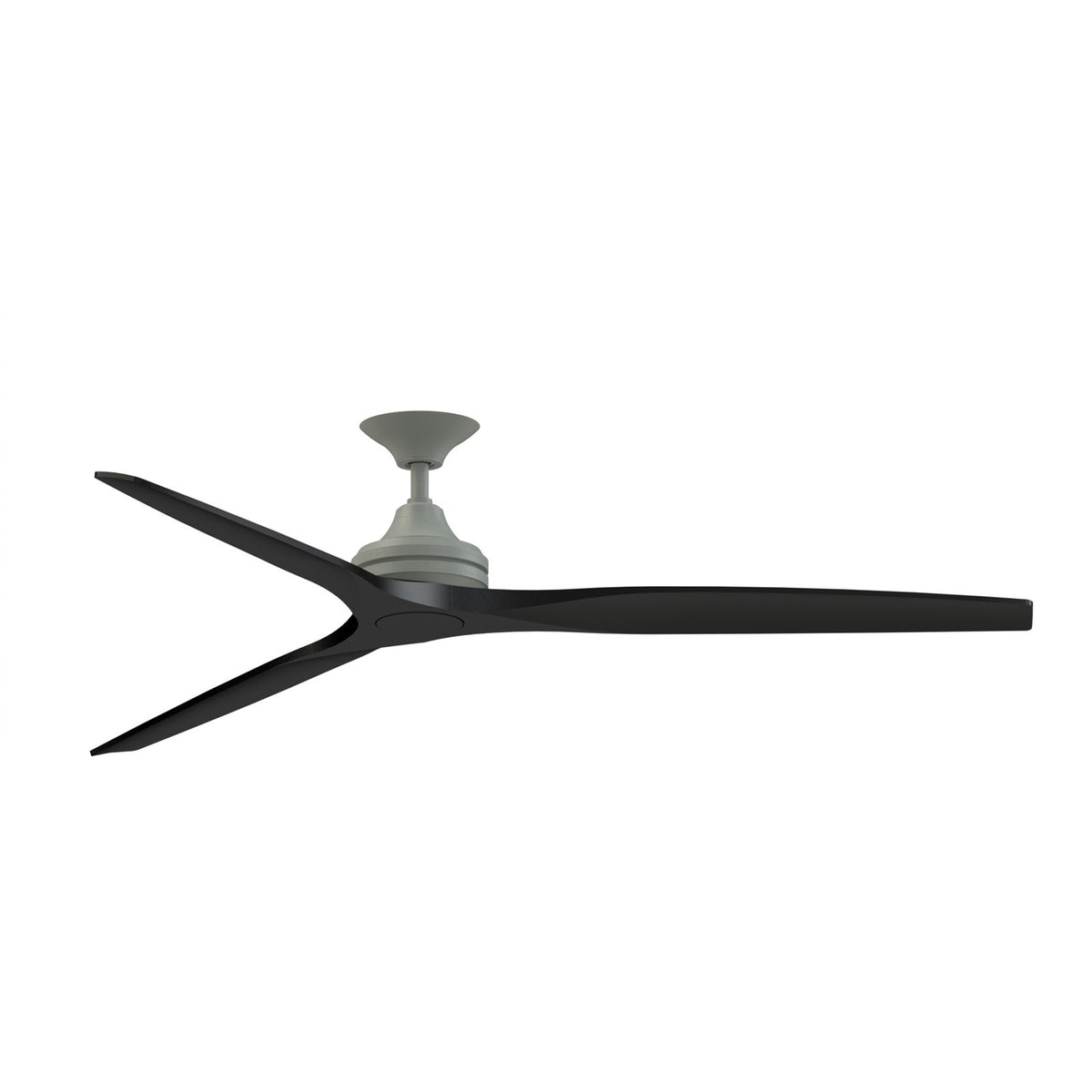

A 72-inch downrod smart ceiling fan for large indoor and covered outdoor spaces, with a sleek Antique Graphite finish and Black blades.
The Spitfire DC Custom delivers powerful, quiet airflow up to 9,639 CFM from its 6-speed DC motor. This version is designed for those who want to add a compatible LED light kit separately, offering flexibility. Control the fan with the included handheld remote or via Wi-Fi with fanSync, and enjoy the convenience of smart-home integration.
Best for
- Large living rooms and great rooms over 20x20 ft, providing strong air circulation
- Covered patios and porches, with damp-rated construction for humid environments
- Bedrooms and sunrooms needing quiet, energy-efficient cooling
- Rooms with standard or slightly sloped ceilings, using the included 6-inch and 12-inch downrods
- Smart-home setups, with Wi-Fi control via fanSync app and voice assistants
Not ideal for
- Uncovered outdoor areas exposed directly to rain or water
- Low ceilings under 8 ft, as the downrod adds height
- Those who need a light kit included, as it is sold separately
How bright is it?
This fan does not include a light kit, so brightness depends on the compatible LED kit you add. The compatible 18W LED kit provides 1600 lumens, similar to a 100W incandescent bulb.
Light color and feel
If you add the compatible light kit, you can choose from 2700K to 5000K color temperatures, with a CRI of 90 for accurate color rendering. The light is dimmable via the remote.
Sizing and fit
With a 72-inch blade sweep and a height of 19.69 inches (using the 12-inch downrod), this fan is best for rooms with ceilings at least 9 ft. The included downrods (6 and 12 inches) allow for flexible installation, and optional downrods up to 72 inches are available for higher ceilings.
Specifications
- Primary Finish: Antique Graphite
- Blade Material: Buttonwood
- Blade Finish: Black
- Collection: Spitfire
- Blade Sweep: 72"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 6237
- CFM High: 9639
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
What is it made of? The motor housing is finished in Antique Graphite, and the blades are made of Buttonwood with a Black finish.
Where in the home does this work best? It's ideal for large living rooms, covered patios, and sunrooms where strong airflow is needed.
How is it mounted or assembled? It mounts with a downrod (6 or 12 inches included) to flat or sloped ceilings up to 20 degrees. Assembly is required.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
Can I add a light kit later? Yes, this fan is compatible with Fanimation's integrated LED light kits, sold separately.
