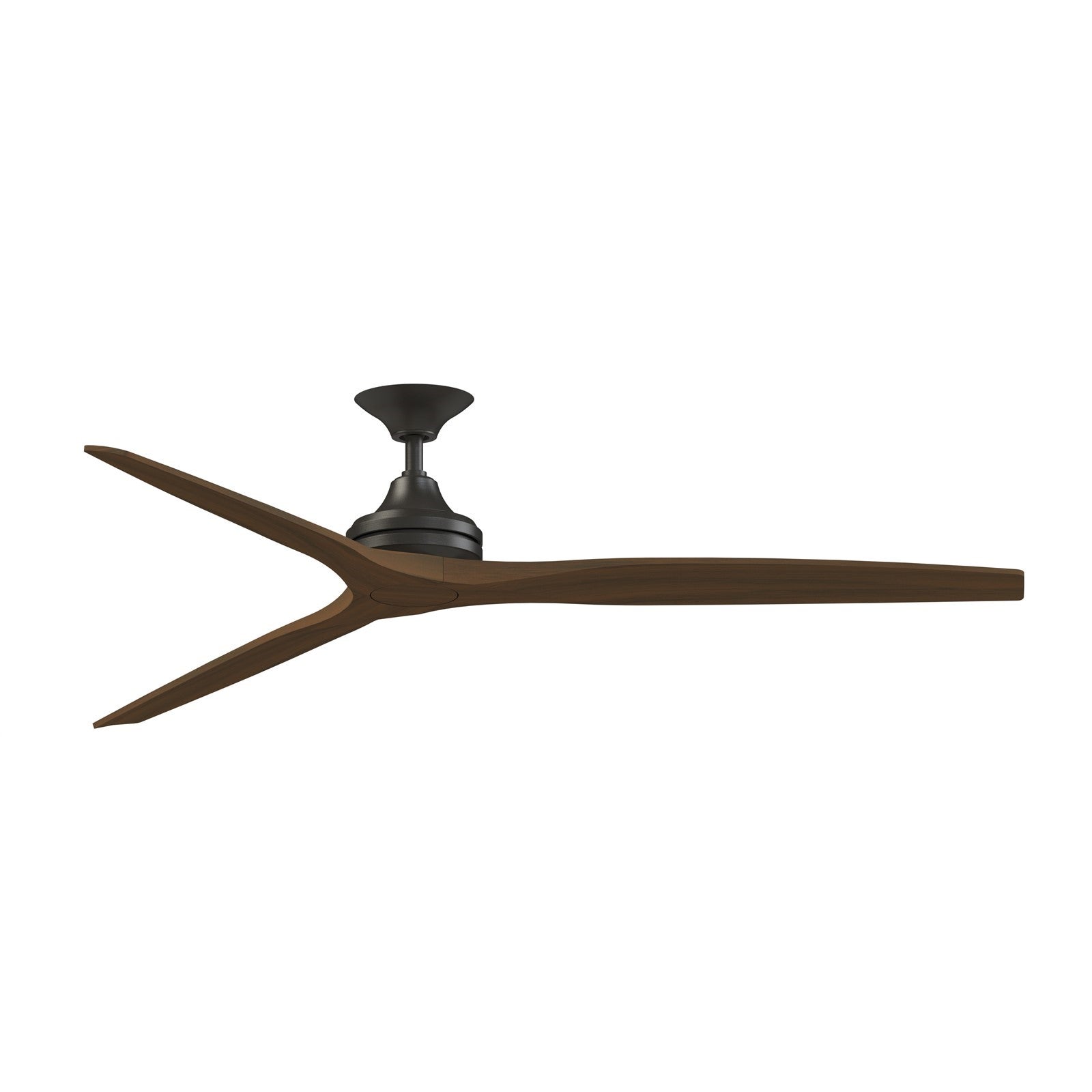

A 72-inch smart ceiling fan for large covered patios and great rooms, finished in dark bronze with whiskey wood blades.
The Spitfire DC Custom pairs a streamlined dark bronze motor housing with three whiskey wood blades for a warm, modern look that suits both indoor living spaces and covered outdoor areas. Its 6-speed DC motor moves up to 9,639 CFM of air quietly, while the included TR360 remote and Wi-Fi fanSync app give you full control from your hand or smart device. Damp rated for covered outdoor use, this fan is built to handle humidity without direct rain exposure.
Best for
- Covered patios and porches, where damp-rated construction handles humidity
- Great rooms and open-plan living areas with ceilings 8 ft or higher
- Sunrooms and three-season rooms that need year-round air movement
- Bedrooms and home offices where quiet operation matters
- Large bedrooms up to 20x20 ft, using the reversible motor for seasonal comfort
Not ideal for
- Outdoor areas directly exposed to rain or water - this fan is damp rated, not wet rated
- Rooms with ceilings under 7 ft, as the included downrods may not provide adequate clearance
- Small spaces under 100 sq ft where a 72-inch sweep is overpowering
How bright is it?
This fan is compatible with an optional integrated LED light kit (sold separately) that delivers up to 2,000 lumens - roughly equivalent to a 100W incandescent bulb. The light kit is dimmable and offers five color temperatures, so you can adjust brightness and tone to suit the room.
Light color and feel
With the optional light kit, you can select from 2700K (warm white) to 5000K (daylight), letting you shift from a cozy, golden glow to crisp, energizing light. The high CRI of 90 ensures colors appear natural and accurate, ideal for living areas and kitchens.
Sizing and fit
This fan measures 72 inches in blade sweep and 19.69 inches from ceiling to bottom with the included 6-inch downrod. It fits flat or sloped ceilings up to 20 degrees, and optional downrods up to 72 inches are available to achieve the recommended 7-9 ft hanging height.
Specifications
- Primary Finish: Dark Bronze
- Blade Material: Buttonwood
- Blade Finish: Whiskey Wood
- Collection: Spitfire
- Blade Sweep: 72"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 6237
- CFM High: 9639
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 72"(L) x 72"(W) x 19.69"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 8.76"(Dia) x 2.52"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Item Weight: 19.3 lbs.
Frequently asked
Is the bulb included? This fan does not include a light kit; the LED light kit is sold separately.
Is it dimmable, and what dimmer should I use? The optional light kit is dimmable via the included TR360 remote or the fanSync app; no wall dimmer is required.
Can I install this in a bathroom or outdoors? This fan is damp rated, so it is suitable for covered outdoor areas and bathrooms with humidity, but it should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
Does this fan work with voice assistants? Yes, the Wi-Fi enabled fanSync technology allows control via compatible smart devices and voice assistants.
