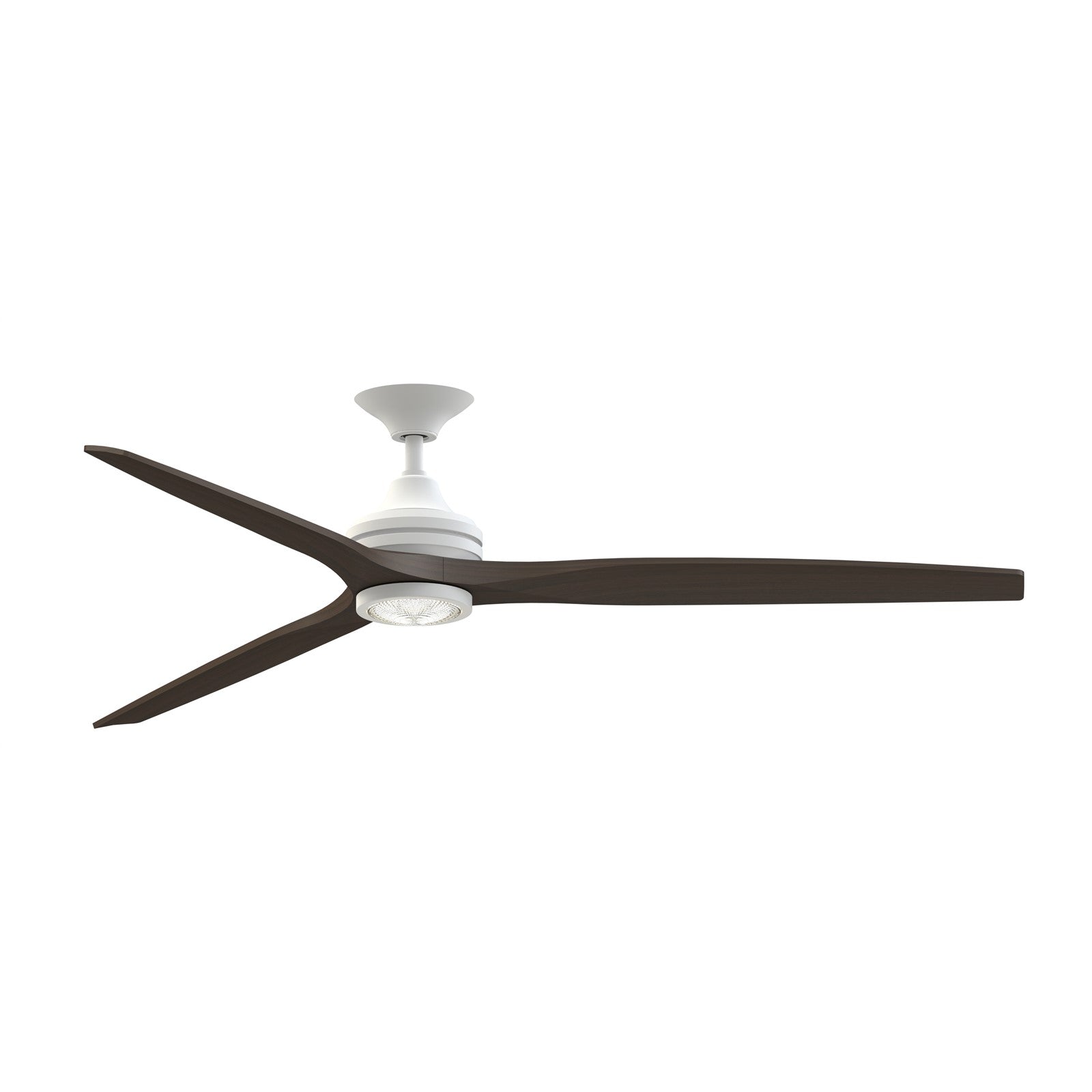

A 72-inch smart ceiling fan with an integrated LED light kit, designed for large covered outdoor and indoor spaces, finished in matte white with dark walnut blades.
The Spitfire DC Custom pairs a sleek matte white motor with three dark walnut buttonwood blades for a modern, streamlined look. Its 6-speed DC motor delivers powerful airflow up to 9,639 CFM while staying quiet and energy-efficient. The integrated 18-watt LED light kit features CCT Select technology, letting you choose from five color temperatures from warm to daylight. With Wi-Fi fanSync, you can control the fan and light from your smart device or voice assistant.
Best for
- Covered patios and porches where damp-rated fixtures are needed
- Great rooms and open-plan living areas with high ceilings
- Sunrooms and three-season rooms that need both air movement and light
- Bedrooms and living spaces where smart control and customizable light color are desired
- Large rooms up to 20x20 feet or more, thanks to the 72-inch blade sweep
Not ideal for
- Rooms with ceilings under 8 feet if you need a low profile - this model uses downrods
- Directly exposed outdoor areas without a covered ceiling - it is damp-rated, not wet-rated
- Small rooms under 10x10 feet where a 72-inch fan would be overpowering
How bright is it?
The integrated LED module produces 1600 lumens - about as bright as a 100W incandescent bulb, suitable for ambient lighting in a large room. It is dimmable, so you can adjust the light level to your preference.
Light color and feel
Choose from 2700K warm white to 5000K daylight, allowing you to shift the atmosphere from cozy to crisp. With a CRI of 90, colors appear vivid and accurate, ideal for living spaces and kitchens.
Sizing and fit
This fan has a 72-inch blade sweep and an overall height of 19.42 inches with the included 6-inch downrod (21.35 inches with the 12-inch downrod). It is designed for flat or sloped ceilings up to 20 degrees. The recommended hanging height is 7 to 9 feet for optimal airflow.
Specifications
- Primary Finish: Matte White
- Blade Material: Buttonwood
- Blade Finish: Dark Walnut
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 72"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 6237
- CFM High: 9639
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED module is included.
Is it dimmable, and what dimmer should I use? Yes, it is dimmable via the included TR360 remote or the fanSync app. No wall dimmer is required.
Can I install this in a bathroom or outdoors? It is damp-rated, so it is suitable for covered outdoor areas and bathrooms with humidity, but not for direct rain exposure.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
Does it work with voice assistants? Yes, via Wi-Fi fanSync technology, it works with compatible smart devices and voice assistants.
