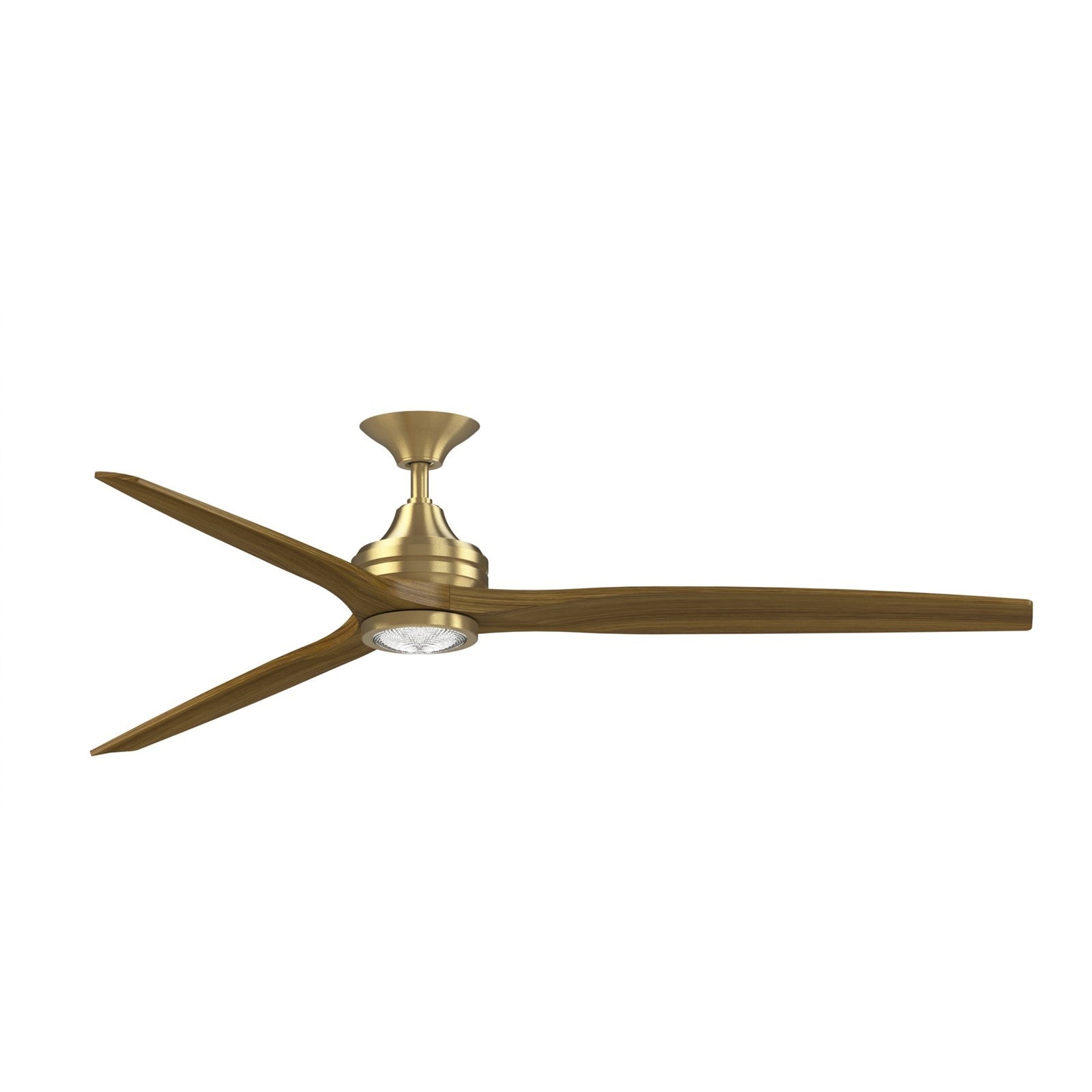

A 72-inch indoor/outdoor smart ceiling fan with an integrated LED light kit, finished in brushed satin brass with Koa wood blades, for large covered spaces.
The Spitfire DC Custom is a statement piece for expansive rooms and covered outdoor areas. Its three Koa blades and brushed satin brass motor create a warm, natural look that complements both modern and transitional interiors. The integrated LED light kit includes both fresnel and frosted shades, letting you choose the light diffusion you prefer. The quiet 6-speed DC motor moves air efficiently up to 9,639 CFM. With Wi-Fi connectivity and a handheld remote, you get full control over fan speed, light dimming, and color temperature from your couch or your phone.
Best for
- Covered patios and porches where you need powerful airflow and integrated lighting
- Great rooms and open-plan living areas with ceilings 8 feet or higher
- Sunrooms and three-season rooms that get humid but stay protected from rain
- Large bedrooms and home offices where quiet operation matters
- Smart-home setups - control via the fanSync app or voice assistant
Not ideal for
- Spaces with ceilings under 8 feet - the downrod mount needs clearance
- Areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
- Small rooms under 12x12 feet - the 72-inch sweep is oversized for compact spaces
How bright is it?
The integrated 18-watt LED module produces 1,600 lumens - roughly equivalent to a 100-watt incandescent bulb. That's enough to light a large living area or covered patio as the primary light source, especially with the bright 5000K setting.
Light color and feel
Five selectable color temperatures - 2700K (warm white) to 5000K (daylight) - let you shift the ambiance from cozy and intimate to crisp and energizing. With a CRI of 90, colors render accurately, making it suitable for spaces where you want true-to-life tones. The light is dimmable, and the included remote lets you adjust brightness smoothly. Choose between fresnel or frosted shades for different light diffusion.
Sizing and fit
The fan measures 72 inches wide by 72 inches deep, with a height of 19.42 inches (with light kit) using the included 6-inch downrod, or 21.35 inches with the 12-inch downrod. It's designed for flat or sloped ceilings up to 20 degrees. For optimal airflow, mount it so the blades are 7 to 9 feet above the floor.
Specifications
- Primary Finish: Brushed Satin Brass
- Blade Material: Wood
- Blade Finish: Koa
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 72"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 6237
- CFM High: 9639
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the LED module is integrated and included.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote. No wall dimmer is needed.
Can I install this in a bathroom or outdoors? This fan is damp-rated, so it's suitable for covered outdoor areas and bathrooms, but it should not be directly exposed to rain or water.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
Does this fan work with voice assistants? Yes, via Wi-Fi and the fanSync app, it works with Amazon Alexa and Google Assistant.
