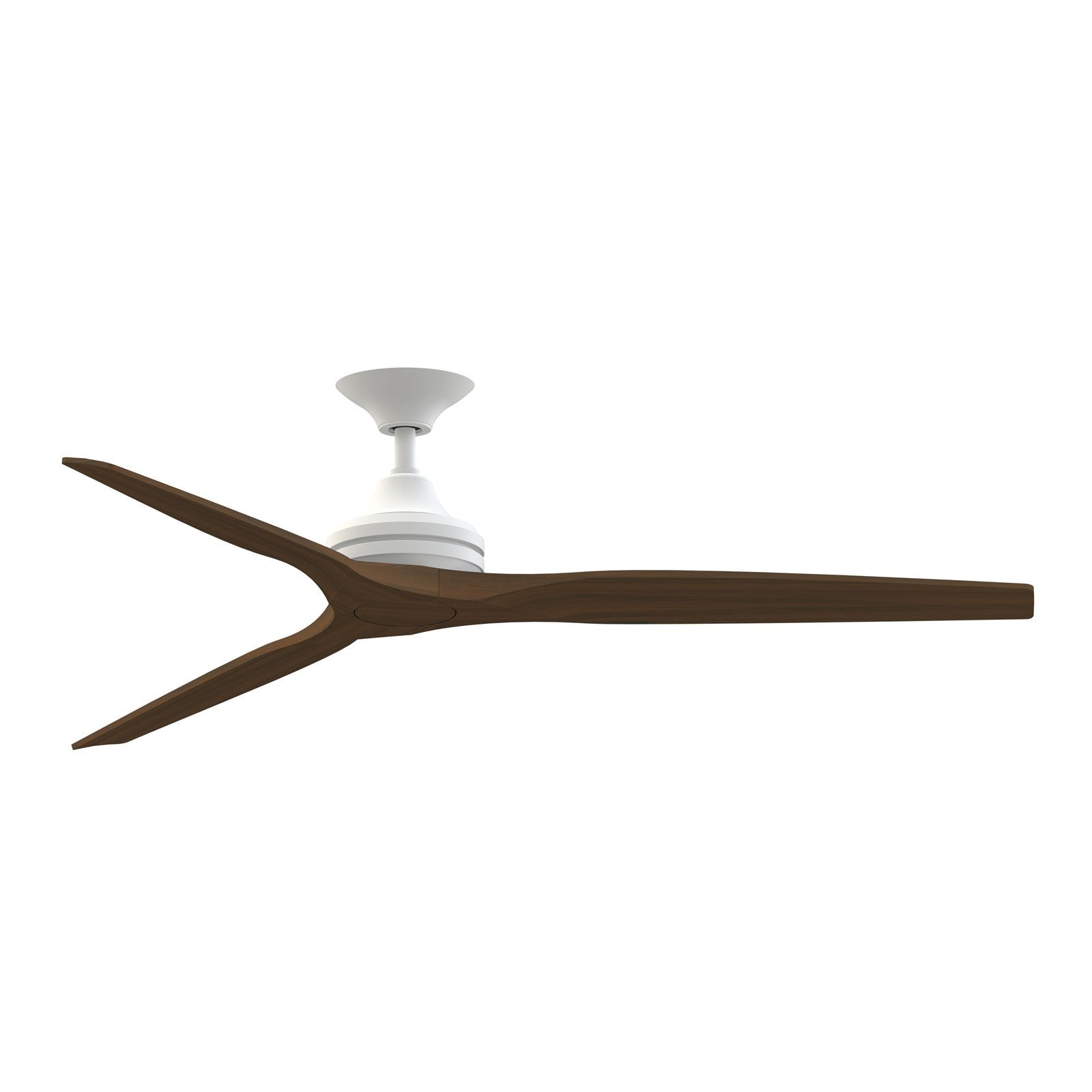

A 64-inch downrod smart ceiling fan for indoor and covered outdoor spaces, finished in matte white with whiskey wood blades, light kit compatible.
The Spitfire DC Custom combines sleek design with powerful performance. Its 6-speed DC motor delivers up to 8,754 CFM of quiet airflow, while the included TR360 remote and Wi-Fi fanSync app provide convenient control. This version is designed for downrod installation and is compatible with an optional LED light kit for customizable lighting.
Best for
- Covered patios and porches, where damp-rated construction handles humidity without direct rain exposure
- Great rooms and open-plan living areas up to 400 sq ft, with high ceilings for optimal airflow
- Sunrooms and three-season rooms that need both air movement and adjustable lighting
- Bedrooms and living rooms where quiet operation and smart control are priorities
- Rooms with sloped ceilings up to 20 degrees, using the included downrods
Not ideal for
- Outdoor areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
- Small rooms under 100 sq ft, where the 64-inch blade sweep may feel overpowering
- Low ceilings under 8 ft, as the downrod adds height
How bright is it?
This fan does not include a light kit, but it is compatible with Fanimation's integrated 18-watt LED light kit (sold separately), which produces 1600 lumens - comparable to a 100-watt incandescent bulb.
Light color and feel
When the optional light kit is added, you can choose from five color temperatures: 2700K warm white, 3000K soft white, 3500K neutral, 4000K cool white, or 5000K daylight. With a CRI of 90, colors appear vivid and natural.
Sizing and fit
With a 64-inch blade sweep and 19.69-inch height from ceiling to bottom (using the 12-inch downrod), this fan suits rooms with standard or high ceilings. The housing diameter is 8.07 inches. Ideal for rooms at least 12 x 12 ft.
Specifications
- Primary Finish: Matte White
- Blade Material: Buttonwood
- Blade Finish: Whiskey Wood
- Collection: Spitfire
- Blade Sweep: 64"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 5473
- CFM High: 8754
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 64"(L)64"(W) x 19.69"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 8.76"(Dia) x 2.52"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Item Weight: 18.94 lbs.
Frequently asked
What is it made of? The motor housing is matte white metal, and the blades are made of buttonwood with a whiskey wood finish.
Where in the home does this work best? It works best in large living areas, covered patios, and sunrooms with ceilings at least 8 ft high.
How is it mounted or assembled? It mounts to the ceiling with the included 6-inch and 12-inch downrods. Optional downrods up to 72 inches are available.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
Can I add a light kit later? Yes, this fan is compatible with Fanimation's integrated LED light kit, sold separately.
